swegltek USB-C to HDMI Active Optical Cable | 4K 60Hz | 5–50m
Short description
Connect a compatible USB-C video source to an HDMI display over longer distances with the swegltek SCTH-1200 active optical cable. Supporting up to 18Gbps video bandwidth and video up to 4K at 60Hz, this USB-C to HDMI fiber optic cable is available in lengths from 5m to 50m for professional display installations.
Key features
- USB-C to HDMI connection for compatible video sources and displays.
- Up to 4K at 60Hz for presentations and professional display applications.
- Up to 18Gbps video bandwidth.
- Active optical transmission for longer display cable runs.
- Eleven standard cable lengths from 5m to 50m.
- USB-C source must support DisplayPort Alt Mode.
Extend USB-C Video to an HDMI Display
The swegltek SCTH-1200 USB-C to HDMI active optical cable connects a compatible USB-C video source to an HDMI monitor, projector or professional display. Its integrated cable design provides a direct display connection for equipment layouts that need more distance between the source and screen.
4K Video at 60Hz
Support for video up to 4K at 60Hz makes this USB-C to HDMI cable suitable for clear presentations, digital signage and professional visual content. The supported resolution and refresh rate depend on the source, display and complete system configuration.
Active Optical Video Transmission
With video bandwidth up to 18Gbps, this active optical cable uses fiber for high-speed signal transmission along the cable run. The bandwidth rating describes the video link; this product is intended for display connectivity.

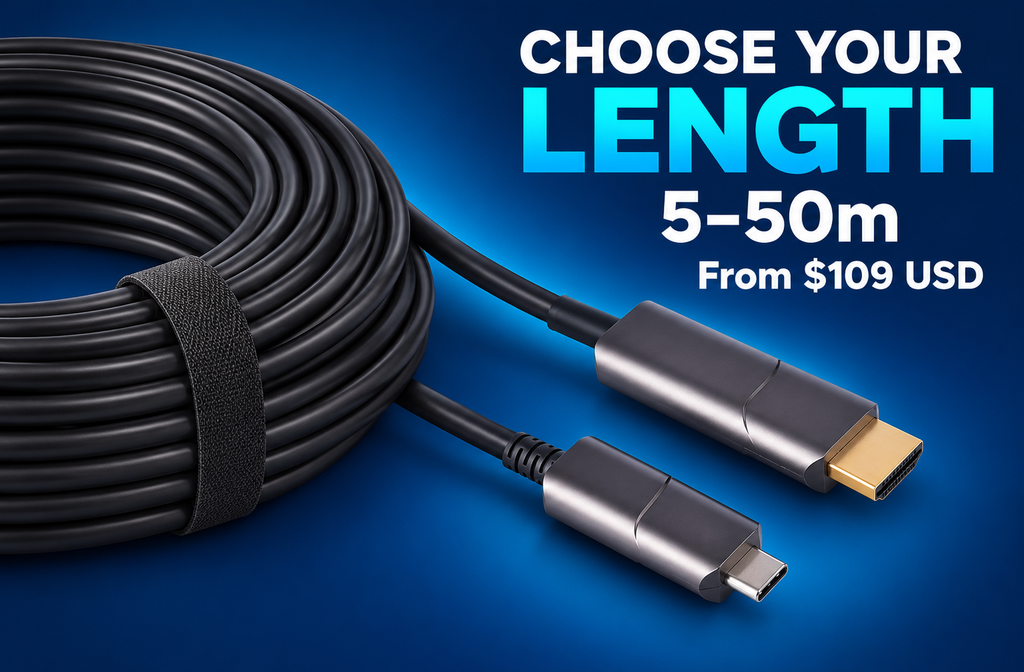

Length Options from 5m to 50m
Choose a 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m or 50m USB-C to HDMI cable to suit the installation route. Allow for cable routing, connector access and equipment position when selecting your length. Contact swegltek for project quantities or other length requirements within the 5–50m range.
Designed for Professional Display Installations
Conference rooms: connect compatible USB-C presentation sources to HDMI displays.
Digital signage: place compatible media source equipment farther from the screen.
Workstations: position the computer away from the display area.
AV installations: plan longer point-to-point video and audio cable routes to compatible HDMI equipment.
Check Your USB-C Video Output
Connect the USB-C end to a source that supports DisplayPort Alt Mode and the HDMI end to the HDMI display input. A USB-C connector alone does not guarantee video output. Confirm source and display compatibility, installation direction and power requirements before ordering.
Specifications
| Model | SCTH-1200 |
| Product | USB-C to HDMI Active Optical Cable |
| Source connector | USB-C male; DP Alt Mode source required |
| Display connector | Full-size HDMI Type A male |
| Direction | USB-C source to HDMI display |
| Video | Up to 4K at 60Hz; depends on connected equipment |
| Source video mode | DisplayPort Alt Mode over USB-C |
| Link bandwidth | Up to 18Gbps video bandwidth |
| Length | 5–50m |
| Operating temperature | -20°C to +70°C |
FAQ
Can I use any USB-C port?
The source USB-C port must support DisplayPort Alt Mode video output. Check your device specifications.
Does this cable carry USB data or charge a laptop?
This product is intended for USB-C to HDMI audio/video connections. It is not specified as a USB data extension or laptop charging cable.
Can I use it from an HDMI computer to a USB-C screen?
The intended connection is USB-C source to HDMI display. Do not assume reverse-direction operation.
What is the maximum video format?
The listed maximum is 4K at 60Hz. Both the source and display must support the required format.
Can I order a project length?
Standard options cover 5m to 50m. Contact swegltek with your installation route and required length for other project options.
$109.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Product Details
Everything you need to know about this product.
Extend USB-C Video to a DisplayPort Display
The swegltek SCTD-1200 USB-C to DisplayPort active optical cable connects a compatible USB-C video
source to a DisplayPort monitor, projector or professional display. Its integrated cable design provides a
direct display connection for equipment layouts that need more distance between the source and screen.
4K Video at 60Hz
Support for video up to 4K at 60Hz makes this USB-C to DP cable suitable for clear presentations, digital
signage and professional visual content. The supported resolution and refresh rate depend on the source,
display and complete system configuration.
DisplayPort 1.2 Optical Transmission
With DisplayPort 1.2 support and link bandwidth up to 21.6Gbps, this active optical cable uses fiber for
high-speed signal transmission along the cable run. The bandwidth rating describes the DisplayPort link;
this product is intended for display connectivity.
Length Options from 5m to 50m
Choose a 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m or 50m USB-C to DisplayPort cable to suit
the installation route. Allow for cable routing, connector access and equipment position when selecting
your length. Contact swegltek for project quantities or other length requirements within the 5–50m range.
Designed for Professional Display Installations
Conference rooms: connect compatible USB-C presentation sources to DisplayPort displays.
Digital signage: place compatible media source equipment farther from the screen.
Workstations: position the computer away from the display area.
AV installations: plan longer point-to-point video and audio cable routes to compatible DP equipment.
Check Your USB-C Video Output
Connect the USB-C end to a source that supports DisplayPort Alt Mode and the DisplayPort end to the
display input. A USB-C connector alone does not guarantee video output. Confirm source and display
compatibility, installation direction and power requirements before ordering.
Product Specifications
Technical specifications and product details.
| Model | SCTD-1200 |
|---|---|
| SCTD-1200Product type | USB-C to DisplayPort Active Optical Cable |
| Connectors | USB-C Male to DisplayPort Male |
| DisplayPort standard | DP 1.2 |
| Link bandwidth | Up to 21.6Gbps |
| Video | Up to 4K at 60Hz |
| Length range | 5–50m |
| 5–50mSignal source | USB-C with DisplayPort Alt Mode |
| Destination | Compatible DisplayPort display input |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
No. Its plug projects at 90° to the housing and cable axis, as shown.
Check the device interface, port recess, nearby connectors and required cable exit direction.
This listing describes USB data connectivity. USB-C video output and high-wattage laptop charging are not specified.
One cable in the selected length. Devices shown are for illustration.
Standard options cover 5m to 50m. Contact swegltek with your installation route and required length for other project options.
