Swegltek DVI Active Optical Cable for Long-Distance AV Connections
Long-distance DVI connections for professional AV

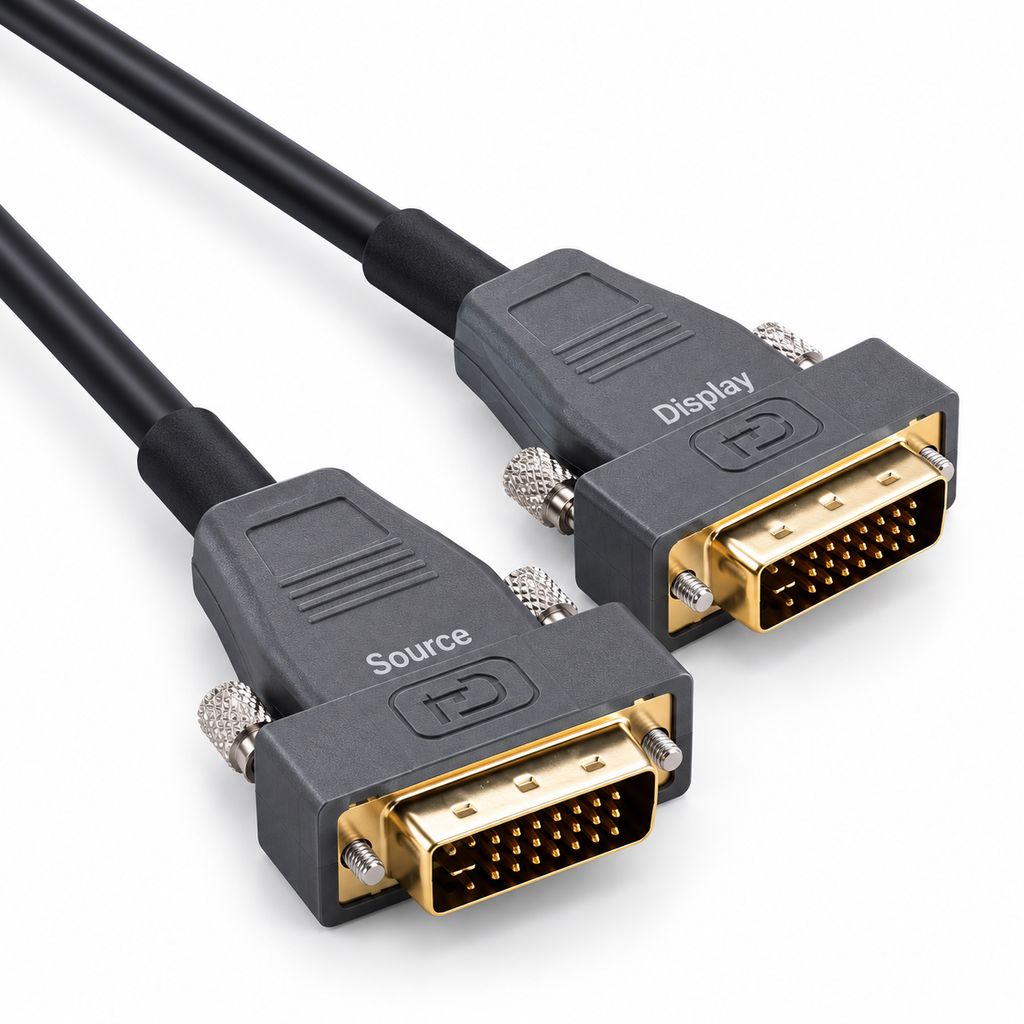

The Swegltek DVI active optical cable connects compatible DVI source and display devices across extended installation runs. This DVI fiber optic cable combines optical fiber and copper conductors in a slim assembly, with screw-lock connectors and clearly marked Source and Display ends.
Use it in DVI-based digital signage, presentation and monitoring systems where the source equipment and display are installed in separate locations. Match the cable to your ports, required length and video format before ordering.
Key features
DVI male to male cable assembly — connect a compatible DVI digital video output to a DVI display input.

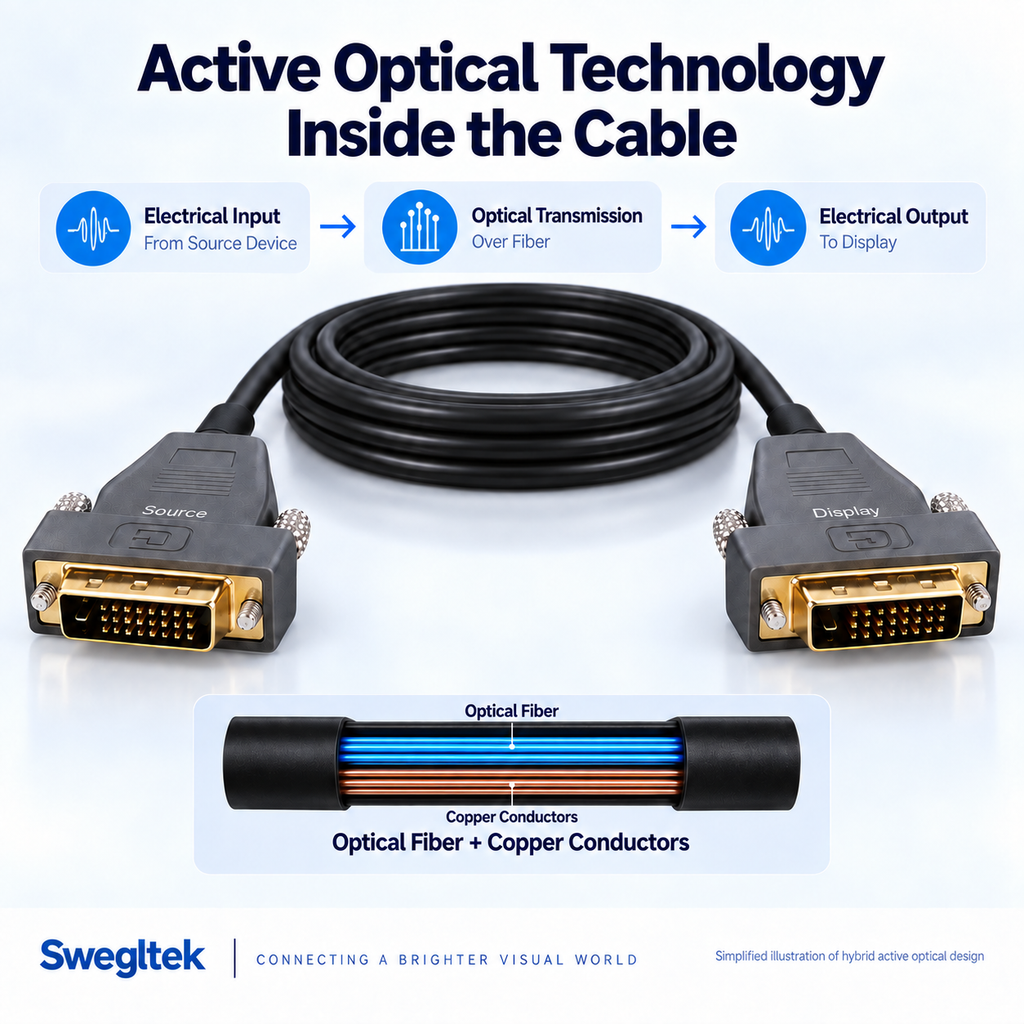

Hybrid active optical design — integrated electronics support optical transmission within the cable assembly.
Slim cable profile — a nominal 4.0 mm cable diameter and black PVC jacket for planned AV cable routes.

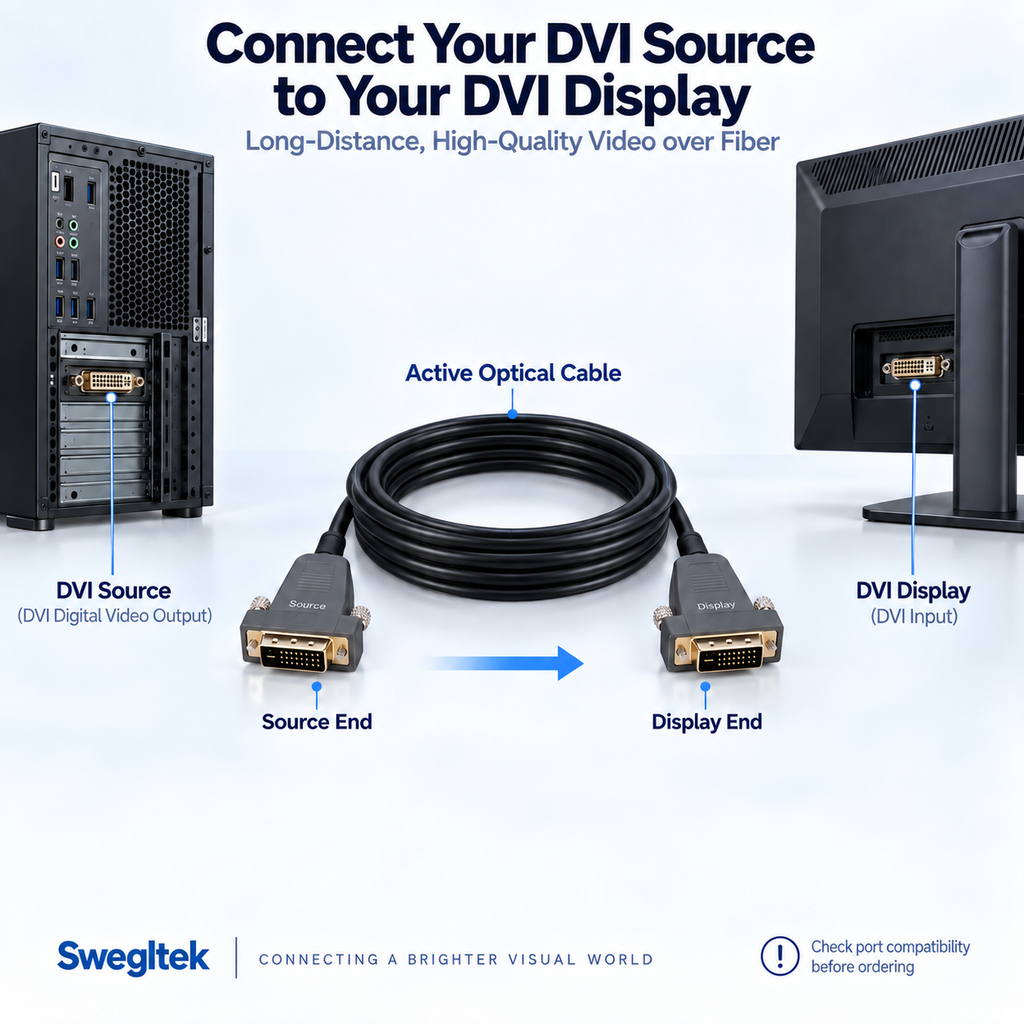

Clear connection direction — connect Source to the video source and Display to the receiving device.
Screw-lock connectors — secure the connection using the matching screw mounts on your equipment.
Designed without an external USB power supply — the source device must meet the cable’s power requirements.
A DVI cable for digital signage
Place a DVI-equipped signage player or industrial PC away from a compatible commercial display. A long-distance DVI cable supports layouts where the playback equipment is kept in a service area while the display is positioned for visitors.
Presentation and monitoring setups
Connect a DVI-equipped presentation source to a compatible projector or display in a training room or auditorium. For monitoring applications, link a DVI output from a workstation or multiview processor to one compatible monitoring display.

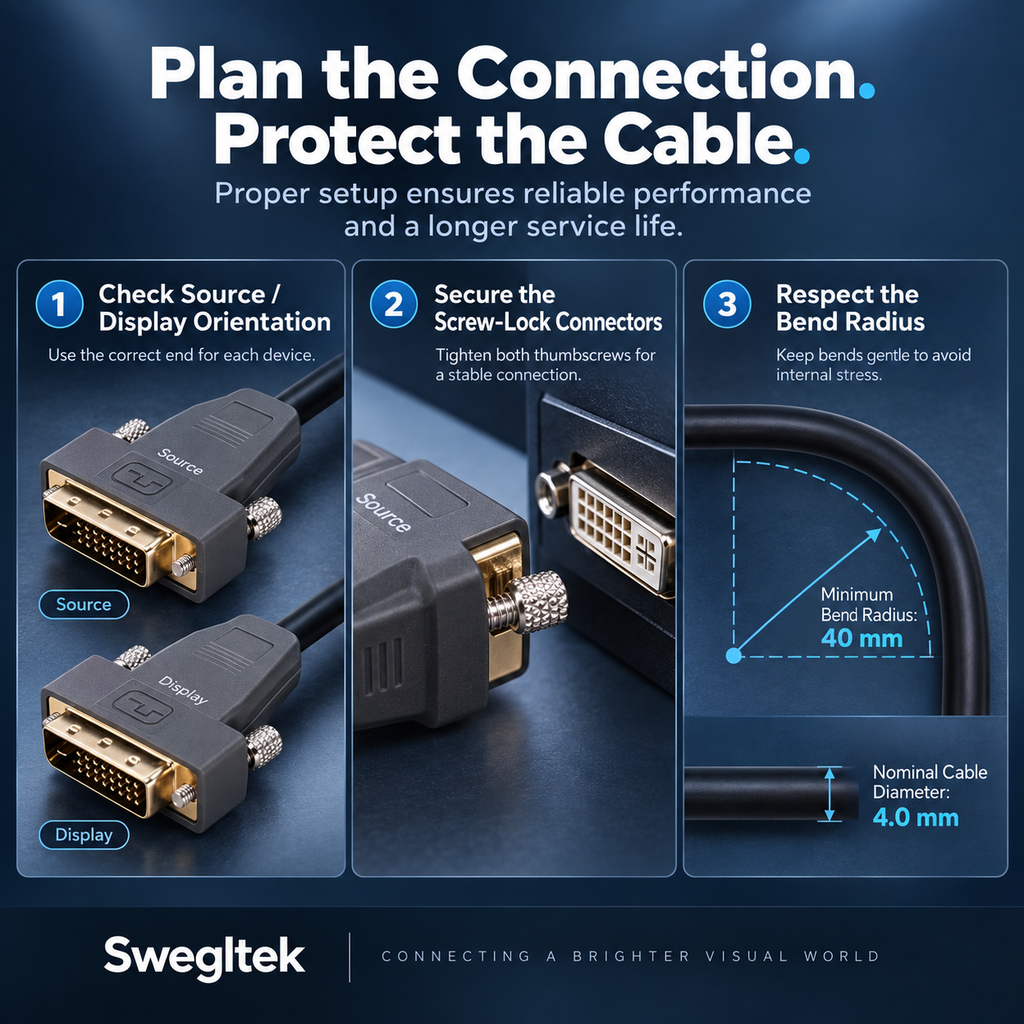

Plan your installation
Check the Source and Display markings before connecting the cable. Maintain a minimum bend radius of 40 mm, confirm any EDID setup requirements, and test the complete connection before final installation. This cable does not convert HDMI, DisplayPort or USB-C connections to DVI.
Need help selecting your cable
Send Swegltek your source and display models, required cable length, resolution and refresh rate. Request the datasheet or discuss your project to confirm the appropriate configuration.
Specifications
| Specification | Product information |
|---|---|
| Product type | DVI active optical cable (DVI AOC) |
| Connection | DVI male to male; directional Source to Display |
| Cable construction | Hybrid optical fiber and copper conductors |
| Cable diameter | Nominal 4.0 mm |
| Jacket / Color | PVC / Black |
| Minimum bend radius | 40 mm |
| Operating temperature | 0°C to 50°C |
| Power | Designed to operate without external USB power; source power requirements apply |
| Length / Video format | Confirm the required configuration before ordering |
FAQ
What is a DVI active optical cable?
A DVI AOC integrates active signal conversion and optical transmission into a cable assembly. This model uses a hybrid construction containing both optical fiber and copper conductors.
Which devices can I connect?
Use compatible equipment with a DVI digital video output and a DVI display input, such as DVI-equipped PCs, signage players, projectors and monitors. Check the actual ports and video format; an adapter or conversion function is not included.
Is the cable directional?
Yes. Connect the Source end to the video source and the Display end to the receiving device.
Does it require external USB power?
The datasheet describes operation without an external USB power supply. Confirm that the source device meets the cable’s power requirements.
How do I choose a length and video format?
Provide the required cable length, resolution, refresh rate and device models. Confirm the configuration and any EDID setup before purchase and installation.
