swegltek Armored HDMI Fiber Optic Cable | 4K 60Hz 18Gbps | 5–100m
Short description
Run HDMI video across larger spaces with the swegltek SAHC-8700 armored active optical HDMI cable. Supporting up to 4K at 60Hz and 18Gbps, this long-distance HDMI cable combines optical fiber and copper conductors with stainless-steel armor and a TPU outer jacket. Available in lengths up to 100m, with no external power supply required.
Key features
• 4K 60Hz video: Supports HDMI 2.0 video transmission at up to 18Gbps for compatible sources and displays.
• Long-distance HDMI connection: Lengths up to 100m for projectors, conference rooms, digital signage and home cinema installations.
• Armored construction: 200CU stainless-steel protection and a TPU jacket surround the hybrid fiber-and-copper cable.

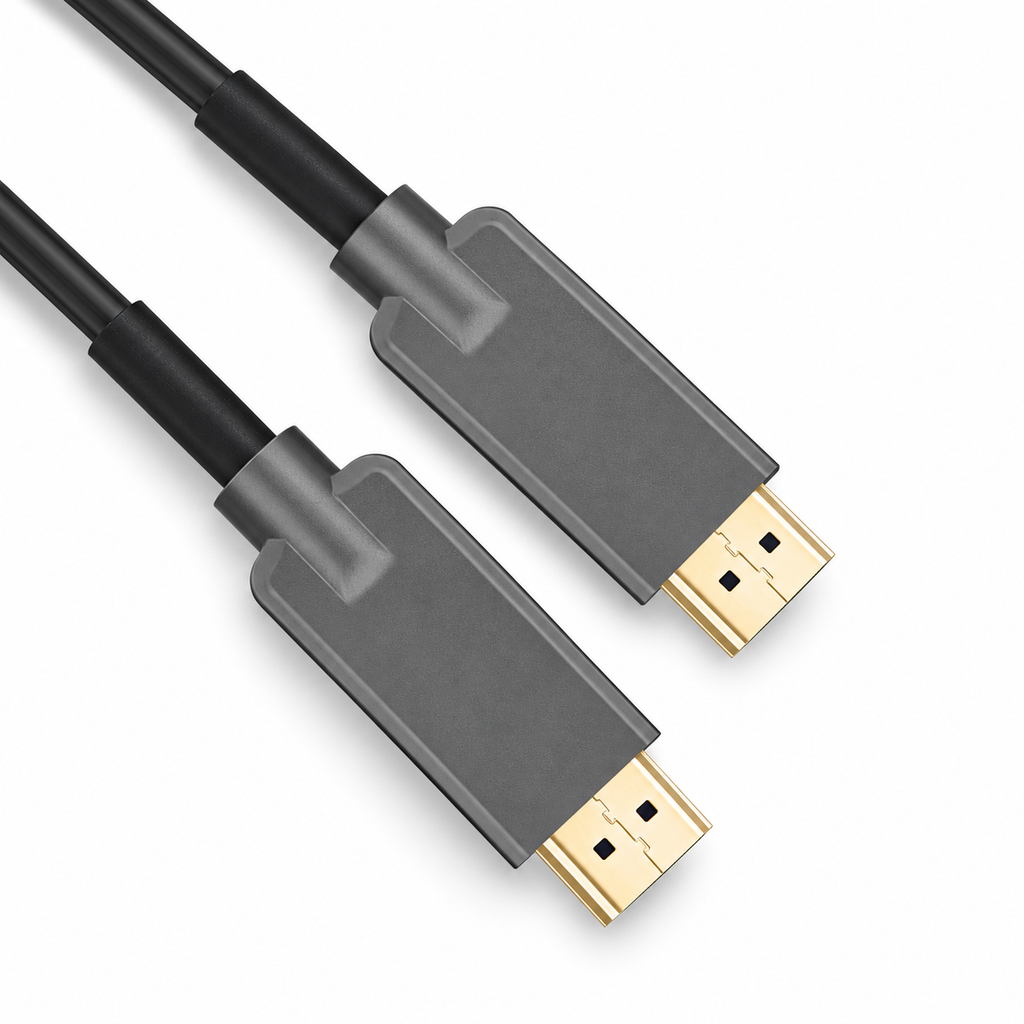

• Straight HDMI Type A connectors: Full-size HDMI male connections at both ends, with clearly assigned source and display ends.
• HDCP and EDID support: Supports HDCP 1.4/2.2 and EDID communication between compatible equipment.
• Audio Return Channel: ARC support up to 100m, as specified for this model. Both connected devices must support ARC and use the appropriate ports.
• No external power required: Powered through the HDMI connection; maximum specified cable power consumption is 250mW.
Built for longer video runs
Place a projector, screen or digital signage display farther from the player or computer. The SAHC-8700 active optical HDMI cable carries video over runs up to 100m, helping you plan equipment positions around the room and cable route.
Protection for installation routes
This armored HDMI cable uses a stainless-steel protective structure beneath its black TPU jacket. Its 5.8mm nominal outer diameter should be considered when planning conduit, cable trays and connector access. Route and secure the cable without sharp bends, pinching or pulling on the connectors.
Installation

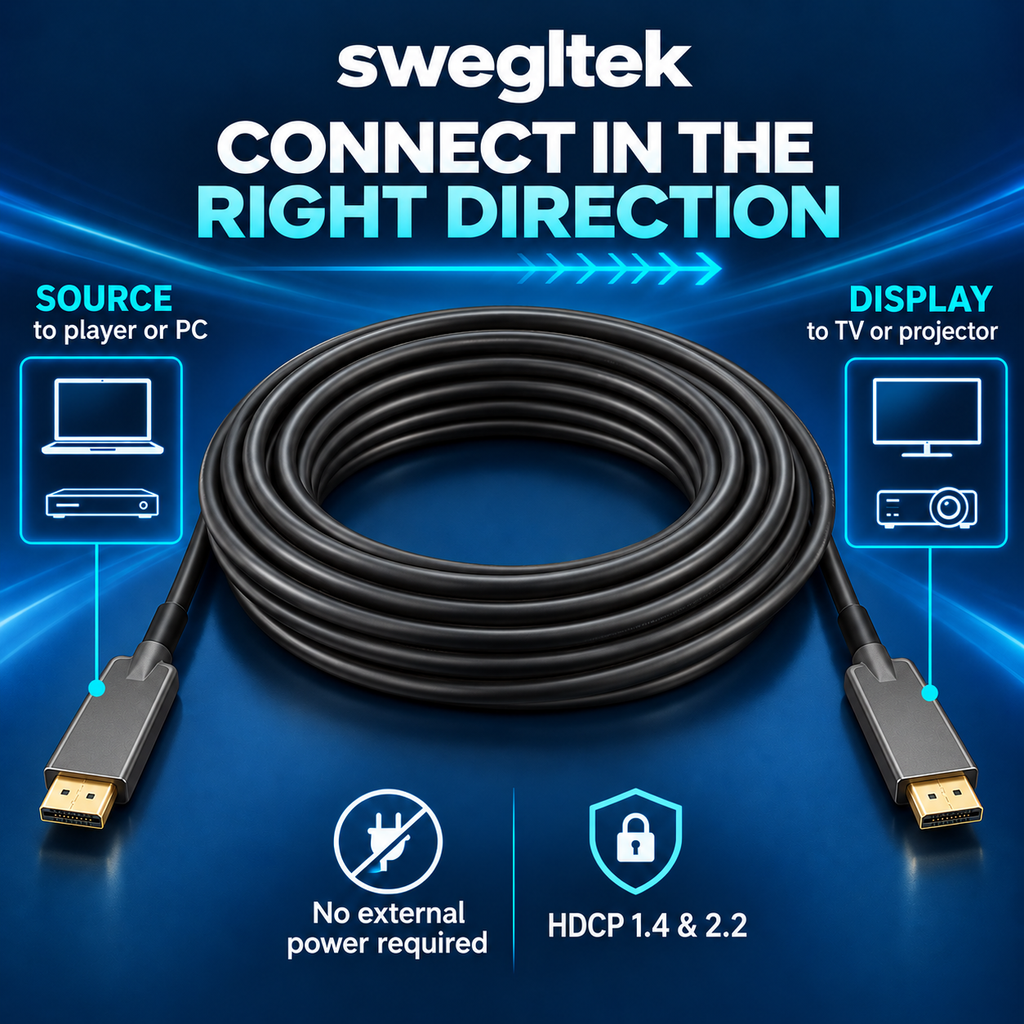

Identify the SOURCE and DISPLAY ends before routing. Connect SOURCE to your player, computer or other HDMI output and DISPLAY to the TV, monitor or projector HDMI input. Test the selected resolution with your equipment before completing the installation. For ARC, use the devices’ designated ARC ports and enable their required audio settings.
Specifications
| Item | Specification |
|---|---|
| Brand and model | swegltek SAHC-8700 |
| Product type | Armored active optical HDMI hybrid cable |
| Connectors | HDMI Type A male to HDMI Type A male |
| HDMI version | HDMI 2.0 |
| Maximum bandwidth | 18Gbps total, 6Gbps per channel |
| Maximum stated video mode | 4K at 60Hz |
| Maximum length | 100m |
| HDCP | 1.4 and 2.2 |
| ARC | Supported up to 100m per model specification |
| Signal communication | EDID and HDCP communication supported |
| Cable construction | OM3 optical fiber and copper conductors |
| Armor | 200CU stainless steel |
| Outer jacket | TPU |
| Nominal outer diameter | 5.8mm |
| External power supply | Not required |
| Maximum stated consumption | 250mW |
| Connection orientation | Source to display |
FAQ
Does it support 4K at 60Hz?
Yes. The model specification supports 4K 60Hz and a maximum total bandwidth of 18Gbps. The available video mode also depends on the source, display and settings.
Is this an HDMI 2.1 8K cable?
This model is specified as HDMI 2.0 with up to 18Gbps and 4K 60Hz. It is not listed here as an 8K or 4K 120Hz cable.
Does the cable need a power adapter?
No external power adapter is required according to the model specification.
Can I install it in either direction?
No. Follow the source and display orientation. ARC audio return is a separate supported feature and does not make the video connection reversible.
Can I order a custom length?
Custom lengths up to 100m are available. Confirm availability and lead time for the selected length before ordering.
Is the cable waterproof?
The supplied specification does not provide an IP waterproof rating. Confirm environmental suitability before use in exposed locations.
$119.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Category:
HDMI AOC
Tags:
Product Details
Everything you need to know about this product.
Extend USB-C Video to a DisplayPort Display
The swegltek SCTD-1200 USB-C to DisplayPort active optical cable connects a compatible USB-C video
source to a DisplayPort monitor, projector or professional display. Its integrated cable design provides a
direct display connection for equipment layouts that need more distance between the source and screen.
4K Video at 60Hz
Support for video up to 4K at 60Hz makes this USB-C to DP cable suitable for clear presentations, digital
signage and professional visual content. The supported resolution and refresh rate depend on the source,
display and complete system configuration.
DisplayPort 1.2 Optical Transmission
With DisplayPort 1.2 support and link bandwidth up to 21.6Gbps, this active optical cable uses fiber for
high-speed signal transmission along the cable run. The bandwidth rating describes the DisplayPort link;
this product is intended for display connectivity.
Length Options from 5m to 50m
Choose a 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m or 50m USB-C to DisplayPort cable to suit
the installation route. Allow for cable routing, connector access and equipment position when selecting
your length. Contact swegltek for project quantities or other length requirements within the 5–50m range.
Designed for Professional Display Installations
Conference rooms: connect compatible USB-C presentation sources to DisplayPort displays.
Digital signage: place compatible media source equipment farther from the screen.
Workstations: position the computer away from the display area.
AV installations: plan longer point-to-point video and audio cable routes to compatible DP equipment.
Check Your USB-C Video Output
Connect the USB-C end to a source that supports DisplayPort Alt Mode and the DisplayPort end to the
display input. A USB-C connector alone does not guarantee video output. Confirm source and display
compatibility, installation direction and power requirements before ordering.
Product Specifications
Technical specifications and product details.
| Model | SCTD-1200 |
|---|---|
| SCTD-1200Product type | USB-C to DisplayPort Active Optical Cable |
| Connectors | USB-C Male to DisplayPort Male |
| DisplayPort standard | DP 1.2 |
| Link bandwidth | Up to 21.6Gbps |
| Video | Up to 4K at 60Hz |
| Length range | 5–50m |
| 5–50mSignal source | USB-C with DisplayPort Alt Mode |
| Destination | Compatible DisplayPort display input |
