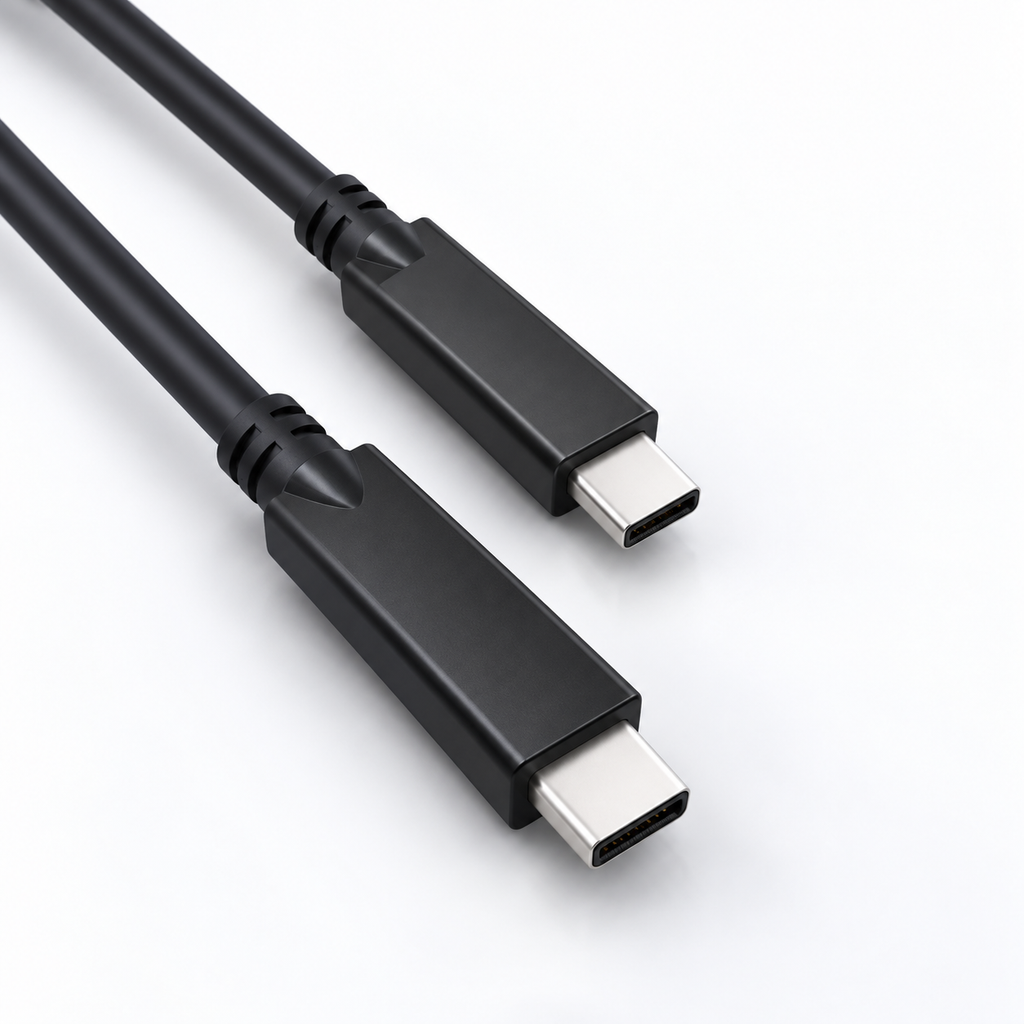

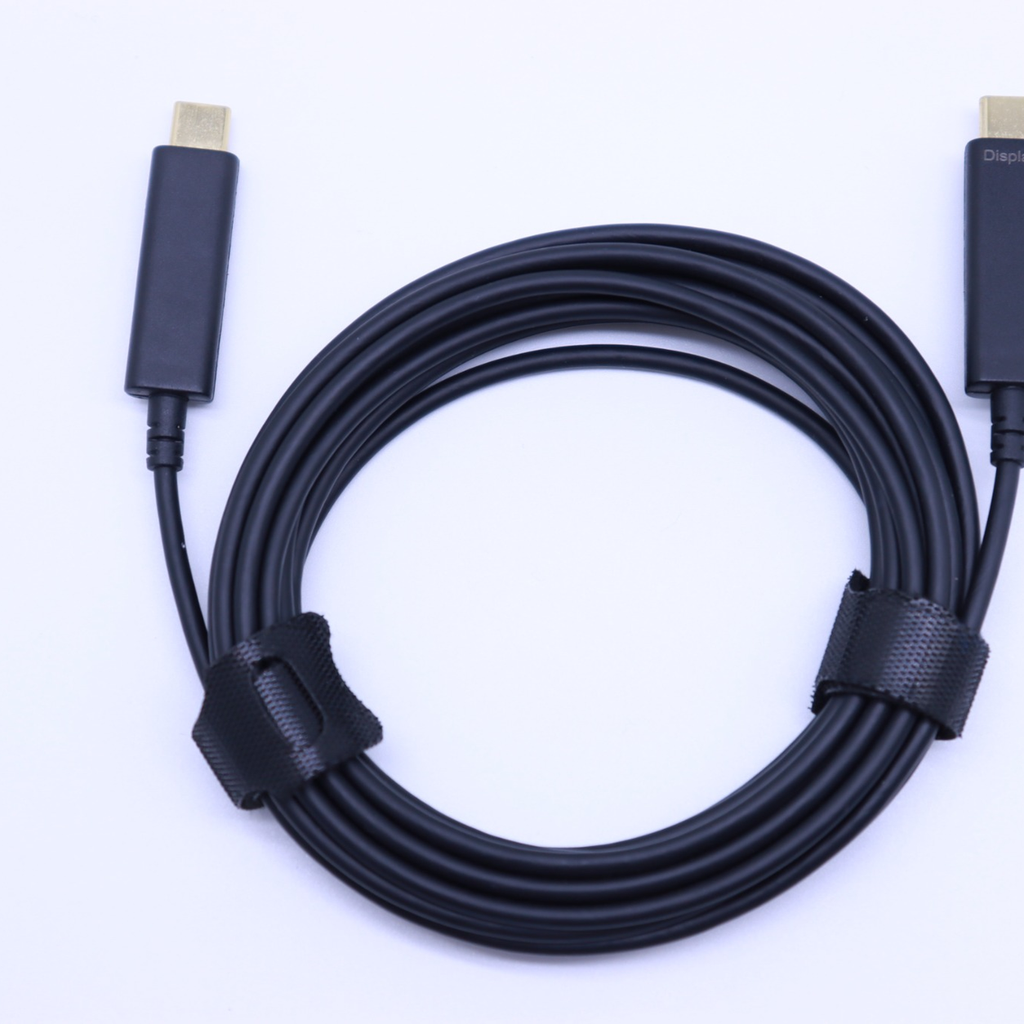

Swegltek USB-C to USB-C Active Optical Cable | 4-Lane, 10Gbps, 4K60 | 3–20m

One USB-C Cable. More Installation Freedom.

Modern USB-C systems often need more than data alone. Displays, cameras, storage devices, conference systems and professional workstations may require a combination of video, USB data and power while the source and destination are several meters apart.

This full-featured USB-C Active Optical Cable helps system integrators extend USB-C connectivity with a clean point-to-point cable instead of adding separate extender boxes or multiple signal cables.

USB 3.2 Gen 2 data up to 10Gbps

DisplayPort Alt Mode up to 4K@60Hz

4-Lane full-featured USB-C architecture

Adaptive 4-lane / 2-lane operation

USB-C Power Delivery

No separate external power adapter required

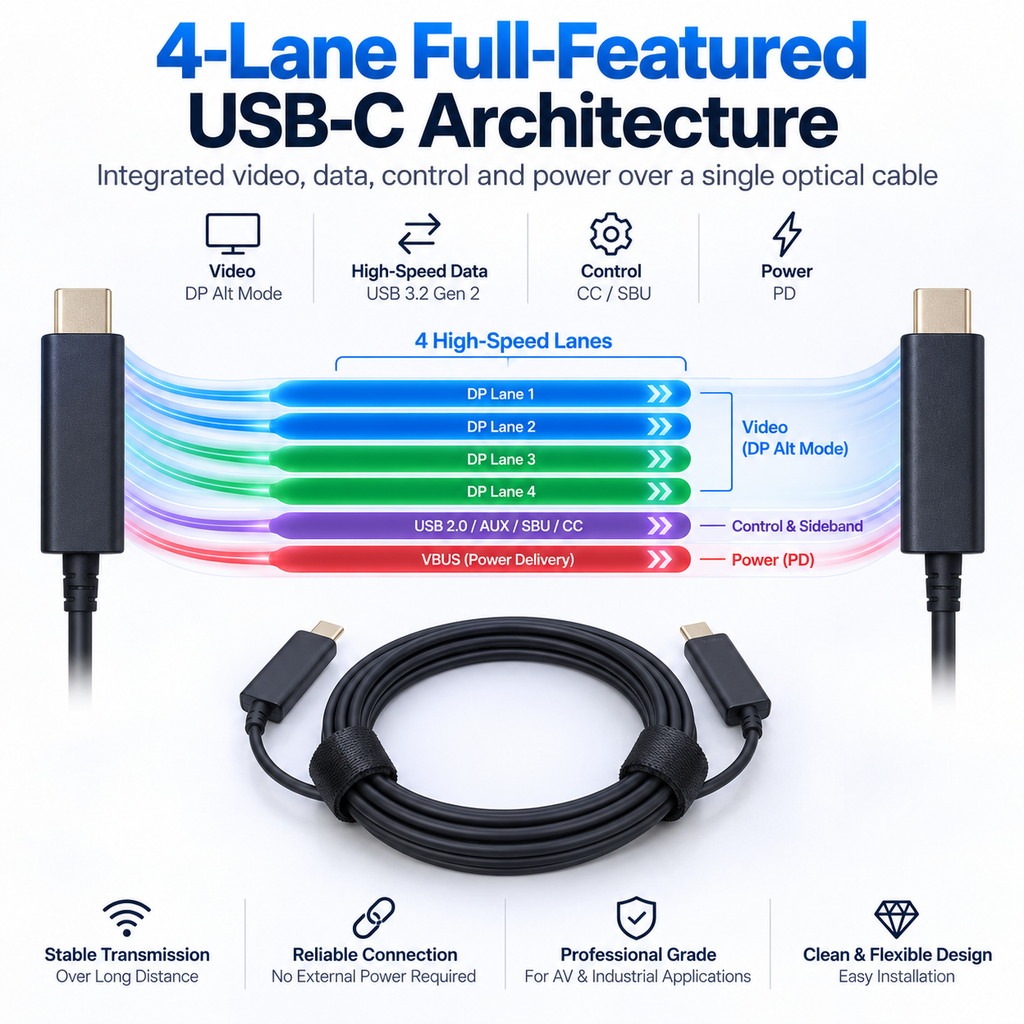

4-Lane Full-Featured USB-C Architecture

SCFC-3420 is built around a full-featured USB-C architecture that can adapt its high-speed lane allocation according to the connected system. This allows the same cable to support different combinations of display bandwidth and USB data.

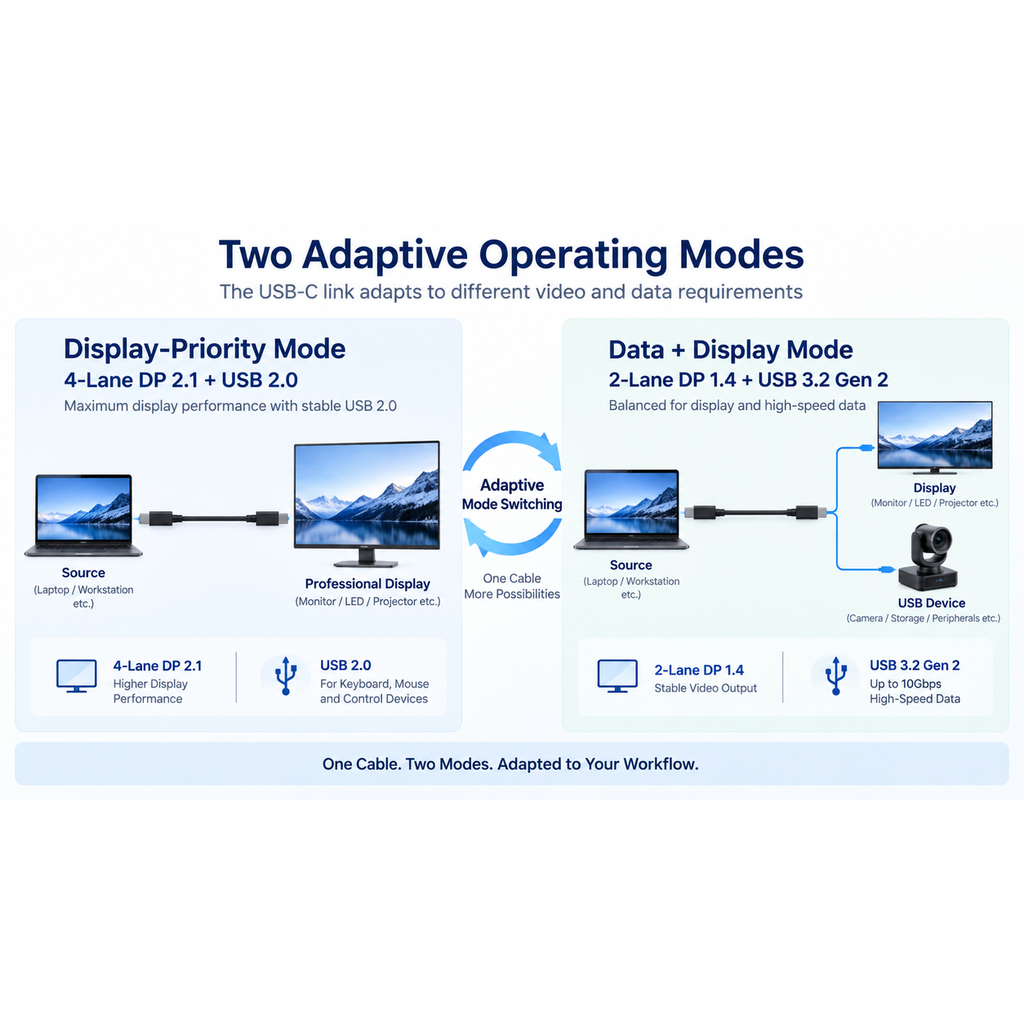

Two Adaptive Operating Modes

4-Lane Display Mode — DP 2.1 + USB 2.0. Designed for applications that prioritize DisplayPort video while retaining USB 2.0 connectivity.

2-Lane Data + Display Mode — DP 1.4 + USB 3.2 Gen 2. Designed for systems that need DisplayPort video and high-speed USB data at the same time.

USB 3.2 Gen 2 — Up to 10Gbps

Transfer USB data at speeds up to 10Gbps over an active optical link. This makes the cable suitable for bandwidth-intensive professional USB-C devices such as cameras, storage, conference peripherals, industrial USB equipment and workstations.

4K@60Hz DisplayPort Alt Mode

The cable supports DisplayPort Alt Mode up to 4K@60Hz, helping connect compatible USB-C source devices to professional displays over longer installation paths.

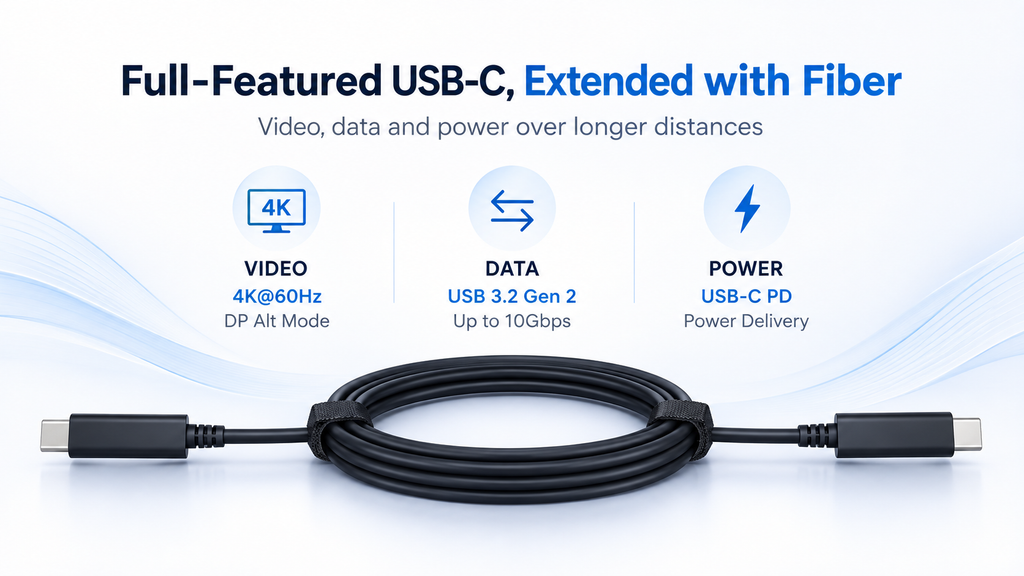

Video. Data. Power.

The product is designed to carry multiple USB-C functions through one cable: DisplayPort video, USB data and USB-C power delivery.

Video — Up to 4K@60Hz via DisplayPort Alt Mode

Data — USB 3.2 Gen 2 up to 10Gbps

Power — USB-C Power Delivery

Built for Professional USB-C Applications

Machine Vision — Connect industrial computers and compatible vision equipment across longer physical layouts.

Digital Signage — Place USB-C source equipment away from commercial or professional displays.

Professional Display — Extend 4K60 USB-C video for workstations, control systems and integrated AV environments.

Remote Storage & Workstations — Extend high-speed USB connectivity to compatible storage and USB peripherals.

Conference AV — Route USB-C between meeting-room sources, displays and professional USB devices.

Project-Based USB-C Installation

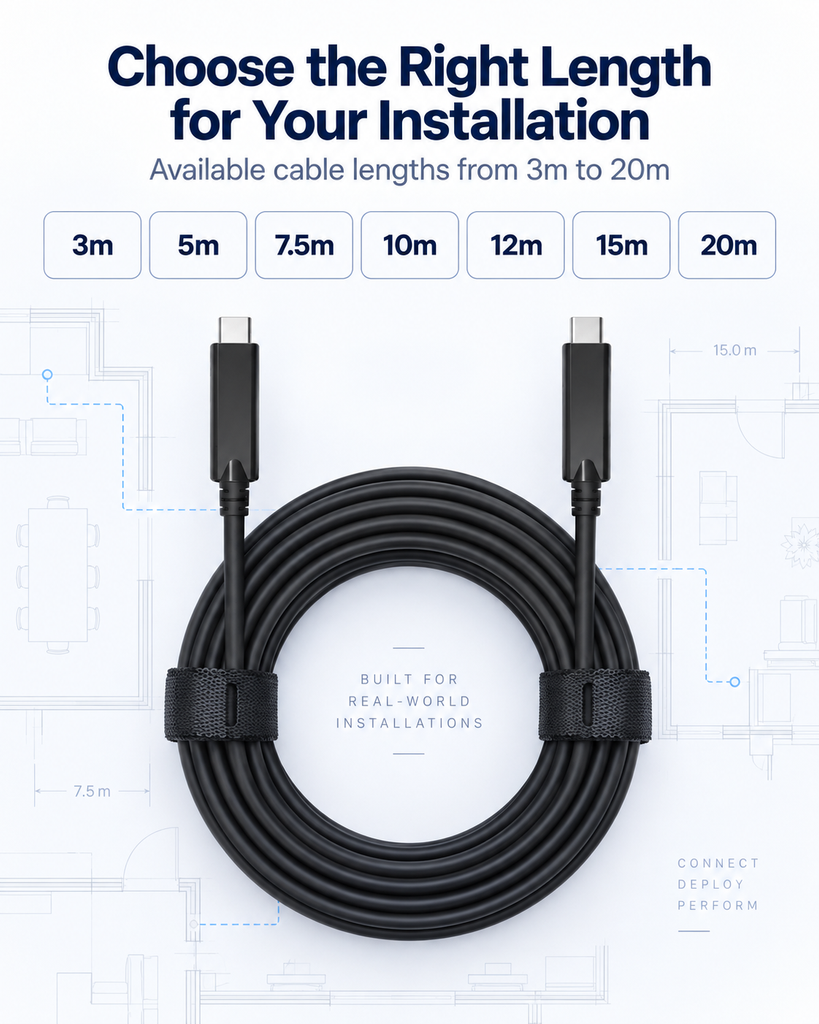

For integrators and project buyers, the key selection factors are cable length, the required video / USB operating mode and the power requirement. Swegltek can support project selection based on the source device, destination device and installation distance.

Supported performance and USB-C power delivery depend on the selected cable length, operating mode and connected equipment. Confirm the required configuration before ordering, especially for 3m and 20m installations.
