swegltek USB-A to Right-Angle USB-C Active Optical Cable | 10Gbps | 5–50m
Long-distance USB data, with an angled device connection
The swegltek USB-A to right-angle USB-C active optical cable connects a compatible USB-A host to a USB-C peripheral across longer cable routes. Its straight USB-A host plug and black 90° USB-C device housing support installations where the direction of cable exit matters.
Key features

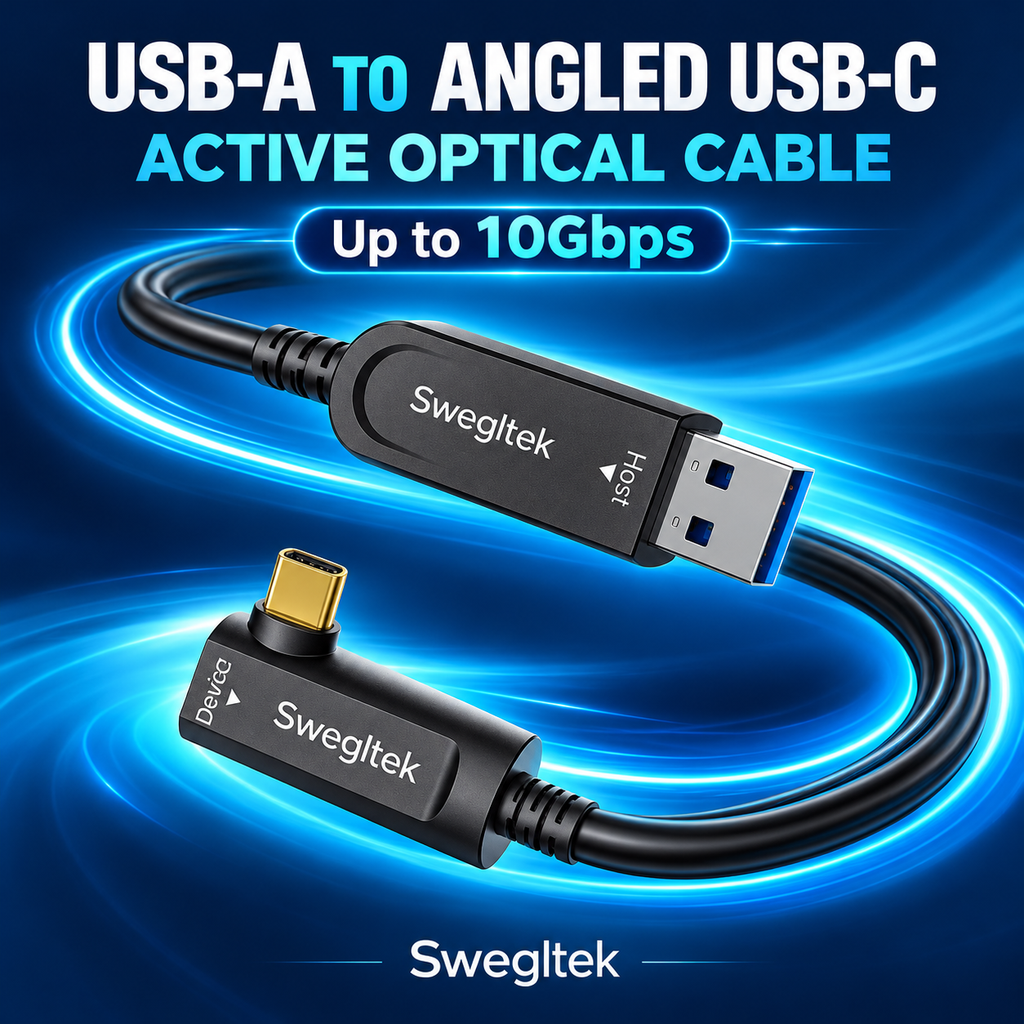

- Up to 10Gbps: USB data performance depends on the host, peripheral and complete connection.

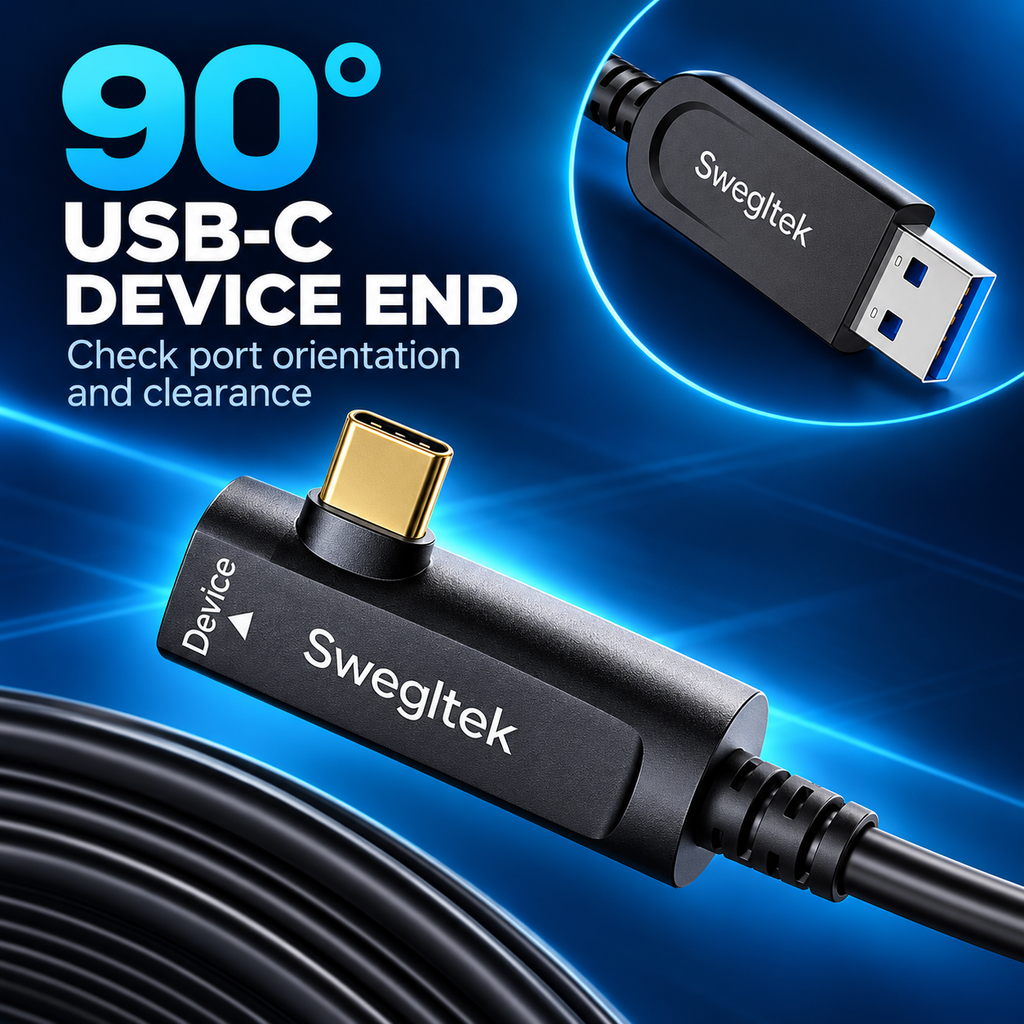

- Right-angle USB-C device end: the plug projects perpendicular to the elongated housing. Check the orientation and surrounding space before installation.
- Straight USB-A host end: connect to a compatible computer or USB host.
- Active optical construction: designed for extended USB data routes; choose the length for your route, from 5m to 50m.
- Black connector housings: with a silver USB-A plug and gold-colored USB-C plug, as shown.
- Compatible applications: USB storage, industrial data acquisition and suitable USB camera installations.
Check the cable exit before ordering
The angled USB-C connector follows the orientation shown in the product images. Confirm that the device port, adjacent connectors, panel recess and cable exit direction provide enough clearance. The connector is fixed and does not swivel.

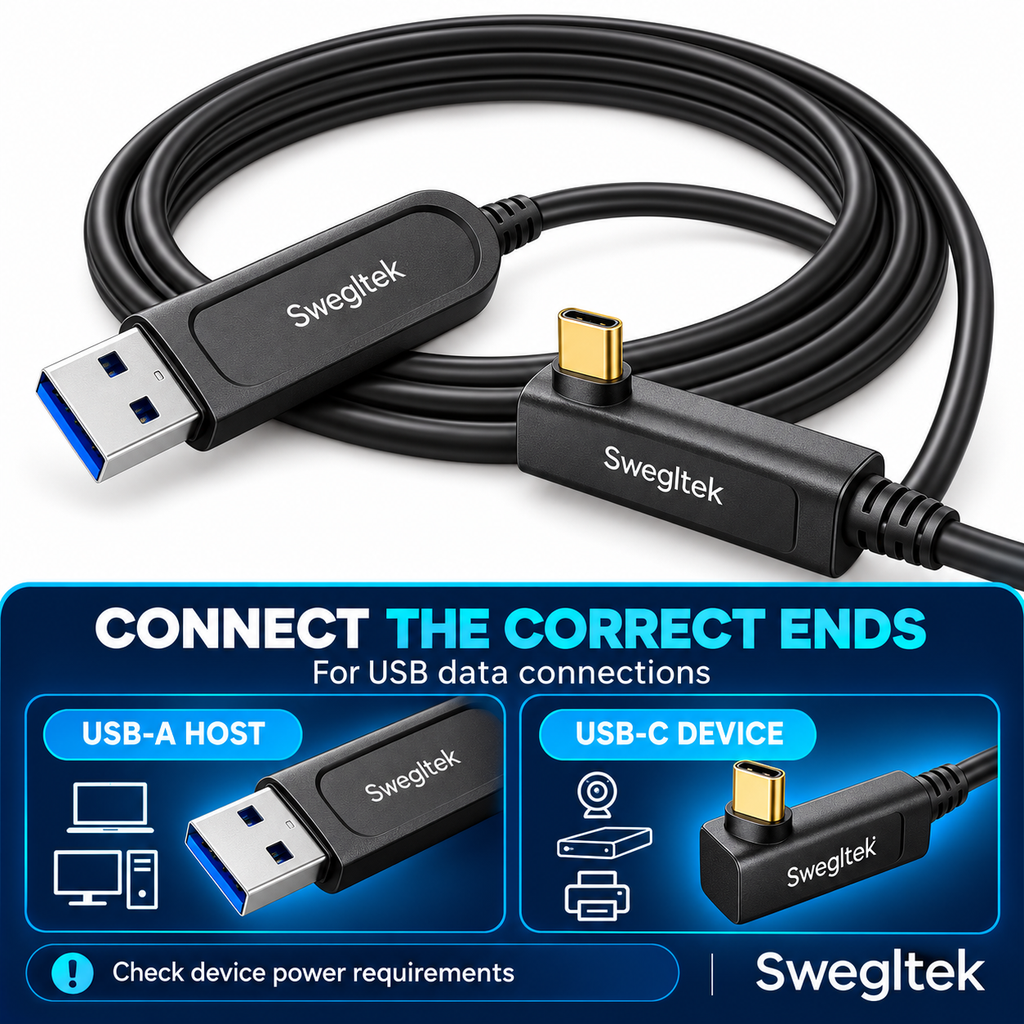

Connect the end marked Host to the USB-A host and the end marked Device to the compatible USB-C peripheral. Verify device power requirements and test data transfer before final routing. Avoid sharp bends and mechanical load on the device port.
$109.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Product Details
Everything you need to know about this product.
Extend USB-C Video to a DisplayPort Display
The swegltek SCTD-1200 USB-C to DisplayPort active optical cable connects a compatible USB-C video
source to a DisplayPort monitor, projector or professional display. Its integrated cable design provides a
direct display connection for equipment layouts that need more distance between the source and screen.
4K Video at 60Hz
Support for video up to 4K at 60Hz makes this USB-C to DP cable suitable for clear presentations, digital
signage and professional visual content. The supported resolution and refresh rate depend on the source,
display and complete system configuration.
DisplayPort 1.2 Optical Transmission
With DisplayPort 1.2 support and link bandwidth up to 21.6Gbps, this active optical cable uses fiber for
high-speed signal transmission along the cable run. The bandwidth rating describes the DisplayPort link;
this product is intended for display connectivity.
Length Options from 5m to 50m
Choose a 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m or 50m USB-C to DisplayPort cable to suit
the installation route. Allow for cable routing, connector access and equipment position when selecting
your length. Contact swegltek for project quantities or other length requirements within the 5–50m range.
Designed for Professional Display Installations
Conference rooms: connect compatible USB-C presentation sources to DisplayPort displays.
Digital signage: place compatible media source equipment farther from the screen.
Workstations: position the computer away from the display area.
AV installations: plan longer point-to-point video and audio cable routes to compatible DP equipment.
Check Your USB-C Video Output
Connect the USB-C end to a source that supports DisplayPort Alt Mode and the DisplayPort end to the
display input. A USB-C connector alone does not guarantee video output. Confirm source and display
compatibility, installation direction and power requirements before ordering.
Product Specifications
Technical specifications and product details.
| Model | |
|---|---|
| SCTD-1200Product type | USB-C to DisplayPort Active Optical Cable |
| Connectors | USB-C Male to DisplayPort Male |
| DisplayPort standard | DP 1.2 |
| Link bandwidth | Up to 21.6Gbps |
| Video | Up to 4K at 60Hz |
| Length range | 5–50m |
| 5–50mSignal source | USB-C with DisplayPort Alt Mode |
| Destination | Compatible DisplayPort display input |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
No. Its plug projects at 90° to the housing and cable axis, as shown.
Check the device interface, port recess, nearby connectors and required cable exit direction.
This listing describes USB data connectivity. USB-C video output and high-wattage laptop charging are not specified.
One cable in the selected length. Devices shown are for illustration.
Standard options cover 5m to 50m. Contact swegltek with your installation route and required length for other project options.
