Swegltek USB-C Full-Feature Active Optical Cable | 2-Lane, 10Gbps, 4K60 | Angled Screw Lock | 3–15m
Angled USB-C connections for video, data and power
The Swegltek 2-Lane USB-C Active Optical Cable with Angled Screw Lock combines USB data, DisplayPort video and supported USB Power Delivery in a cable designed for compatible professional installations. Both USB-C ends use low-profile right-angle housings, with two fixing screws on one end for equipment with matching threaded mounts.
Key features
- USB data up to 10Gbps: connect compatible USB-C hosts and devices; actual transfer performance depends on the equipment and configuration.
- Video up to 4K at 60Hz: uses a 2-lane DisplayPort configuration with compatible USB-C video equipment.

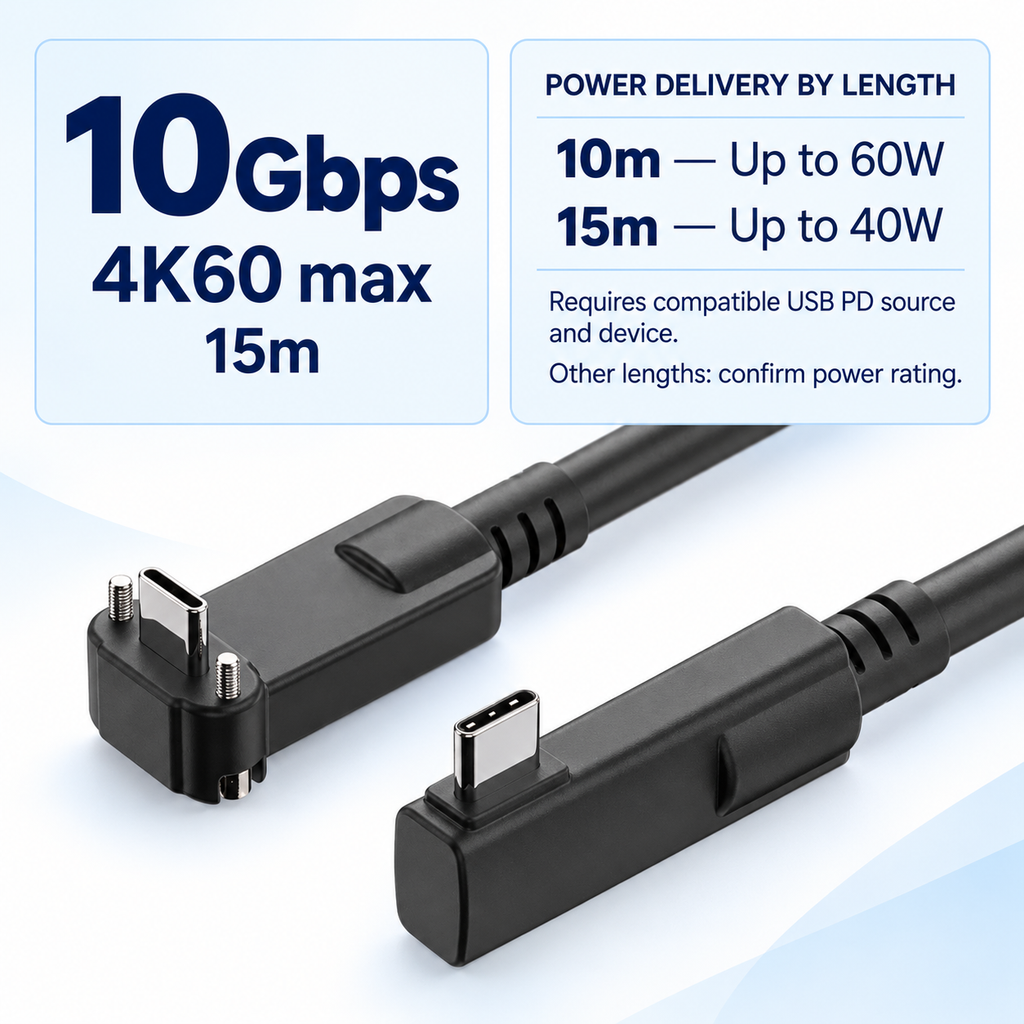

- Length-dependent USB PD: up to 60W for the 10m version and up to 40W for the 15m version, with compatible power sources and devices.
- Angled housings at both ends: plan cable exits around ports, equipment panels and nearby connections.
- Two fixing screws on one end: secure the connection where the equipment provides matching screw mounts.
Plan a complete USB-C installation
Arrange a compatible laptop, display, dock or professional USB-C device around the workspace. Confirm that the required data, video and power functions are supported by both ends of the connection. A USB-C socket by itself does not establish full-feature compatibility.
Video and USB data
The cable supports USB data rates up to 10Gbps and DisplayPort video modes up to 4K at 60Hz. Video requires a compatible DisplayPort Alt Mode source and receiving device. Available video and data modes, including concurrent operation, depend on the equipment's link configuration, supported format and DSC where required. Maximum feature ratings should not be treated as a guarantee of every simultaneous combination.
Power depends on length and equipment
The 10m configuration supports USB PD up to 60W and the 15m configuration up to 40W. These are maximum supported ratings, not power generated by the cable. The power source, receiving device and negotiated profile determine actual delivery. Confirm the power rating separately for other lengths and verify the power direction required by your installation.
Check the angled connectors and mounting holes
Compare both right-angle plug orientations with the equipment's port positions. Allow room for the housings, strain reliefs and screw access. Only one cable end has the two fixing screws; the opposite end is unscrewed. Matching threaded mounting holes are required to use the screw-lock attachment.
Specifications
| Item | Product information |
|---|---|
| Brand | Swegltek |
| Product type | Full-feature USB-C active optical cable |
| Connectors | USB-C male to USB-C male; angled housings at both ends |
| Fixing | Two screws at one end; matching equipment mounts required |
| Maximum USB data rate | 10Gbps; equipment dependent |
| Video | 2-lane DisplayPort; up to 4K at 60Hz with compatible devices and format |
| Length options | 3m, 5m, 7.5m, 10m, 12m, 15m |
| Maximum length | 15m |
| USB PD at 10m | Up to 60W |
| USB PD at 15m | Up to 40W |
| USB PD at other lengths | Confirm the selected configuration before ordering |
| Color | Black |
Installation checklist
- Verify the USB-C data, DisplayPort Alt Mode and power capabilities of the connected equipment.
- Follow the actual source/device markings and installation instructions supplied with the cable.
- Check right-angle orientation, housing clearance and mounting-hole alignment.
- Route with gentle bends and keep tension off the connectors.
- Test video, data and the required PD operation before completing the installation.
Frequently asked questions
Are both ends angled?
Yes. Both have right-angle USB-C housings. One end has two fixing screws; the other does not.
Will it work with every USB-C port?
No. Check the exact data, video and power functions needed for your application.
Is this a USB4 or Thunderbolt cable?
USB4 and Thunderbolt certification are not specified for this product.
Can the 15m version deliver 60W?
The specified maximum for the 15m configuration is 40W. The 60W rating applies to the 10m configuration.
