Swegltek Detachable Pure Fiber HDMI Cable | MPO Modular Design | 5–100m
Modular HDMI Connectivity for Planned AV Installations
Build a clean connection between your HDMI source and display with the Swegltek Detachable Pure Fiber HDMI Cable. A blue optical cable links two HDMI modules through separate MPO connections, making it easier to plan conduit routing and reconnect the modules after the fiber is in place.

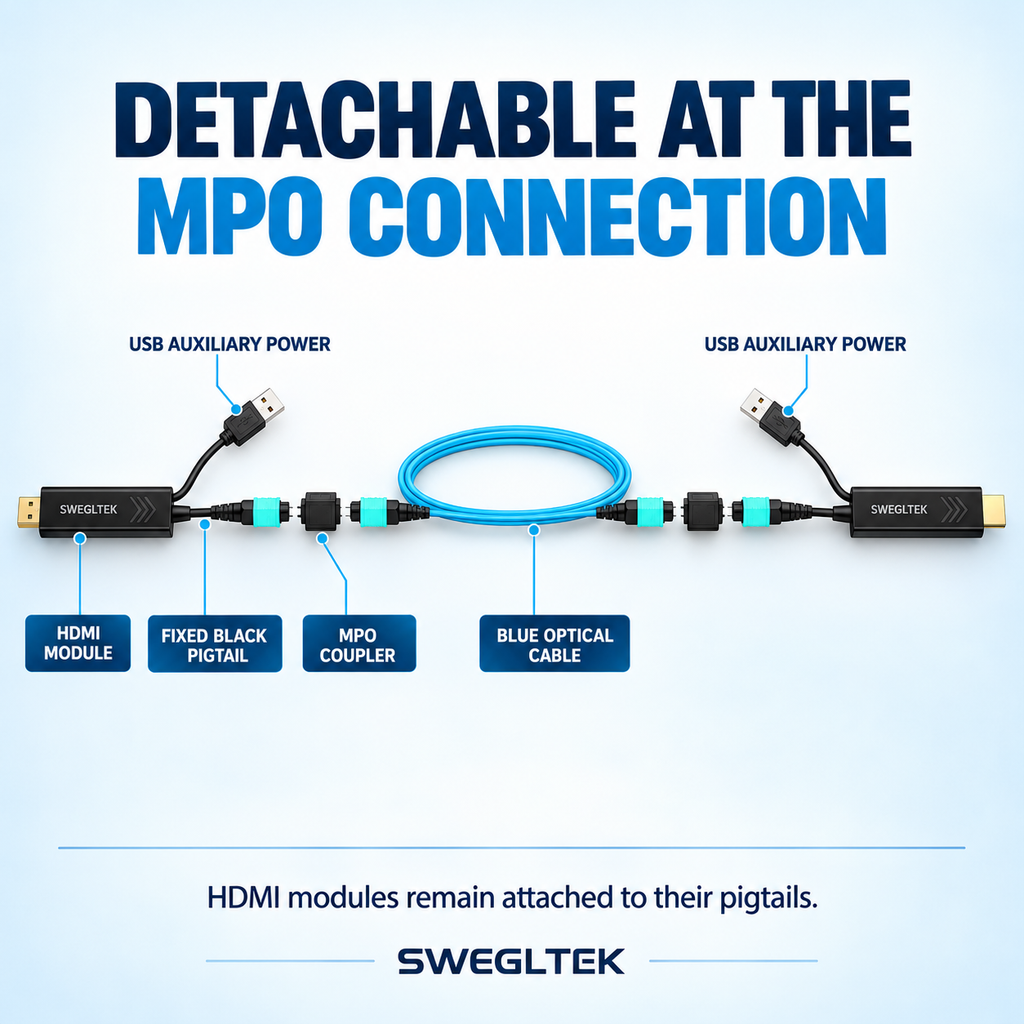

Detach at the MPO Joint
The HDMI housing stays attached to its black pigtails. The detachable joint is farther along the optical pigtail, where the MPO connector meets a separate coupler. Disconnect this joint to separate the HDMI module assembly from the main optical cable; the HDMI housing itself does not open for installation.
Route the Fiber, Then Reconnect
Route the blue main cable and its compact optical connector through a suitable conduit, then reconnect the MPO joints outside the conduit. This keeps the larger HDMI module assemblies out of the cable pathway and makes the connection points easy to identify.
Optical Cable with Separate Auxiliary Power
The main link uses optical fiber. Each HDMI module has a separate USB auxiliary power lead, distinct from its optical pigtail. Where auxiliary power is needed, connect the power lead to a suitable USB supply. The USB branches provide auxiliary power; they are not USB data connections.
For Home Cinema and Professional AV Projects
- Home cinema: plan a concealed route between an equipment area and an HDMI display or projector.
- Meeting rooms: organize connections between source equipment and a room display.
- AV installations: use modular optical joints where access to connection points matters.
Product Overview
| Brand | Swegltek |
|---|---|
| Connection | HDMI Type-A male to HDMI Type-A male |
| Main cable | Blue pure optical fiber cable |
| Modular connection | MPO connectors with separate couplers |
| Module leads | Fixed black optical pigtail and separate USB auxiliary power branch |
| Available lengths | 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m and 100m |
Installation Notes
- Test the complete connection with your intended source and display before permanent installation.
- Identify the source and display modules before routing. Keep the module labels visible.
- Disconnect at the MPO joints. Keep optical ends clean and protected.
- Use a conduit suitable for the connector size. Avoid sharp bends and tension on the optical connectors.
- Reconnect the MPO joints, connect the HDMI modules and provide auxiliary USB power where needed.
Frequently Asked Questions
Where does the cable detach?
At the MPO joint and separate coupler, not at the HDMI housing. The black pigtails remain attached to the HDMI modules.
Does the USB branch carry data?
No. It is an auxiliary power connection for the HDMI module.
Can I use any MPO cable or replace the HDMI modules with other interfaces?
Use matched components. MPO connector appearance alone does not establish fiber arrangement, polarity or module compatibility.
How do I choose a length?
Measure the complete cable route, including rises, corners and access to connection points, before selecting a variant.
$179.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
