Swegltek USB4 Micro Coaxial USB-C Cable | 80Gbps, 240W, DP 2.1 | 0.5–1m
USB4 data, USB PD power and DisplayPort video

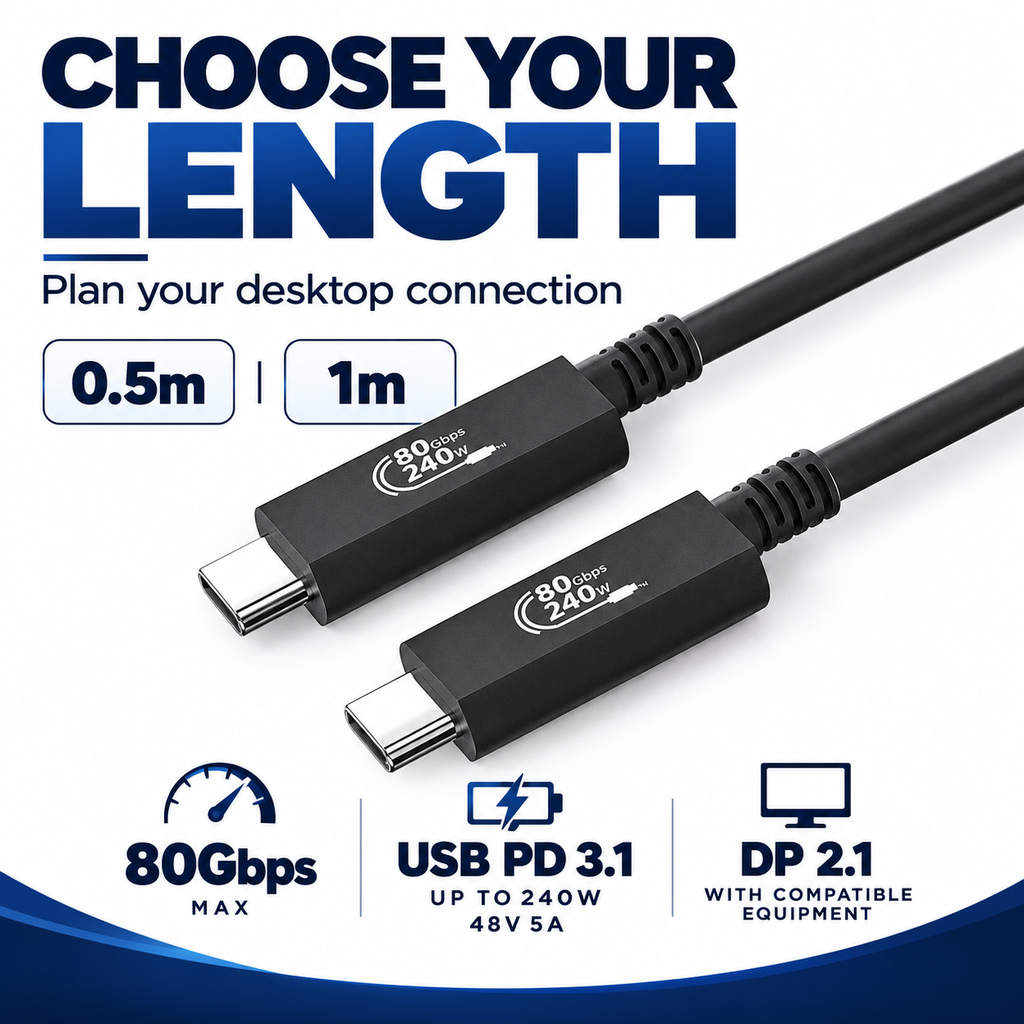

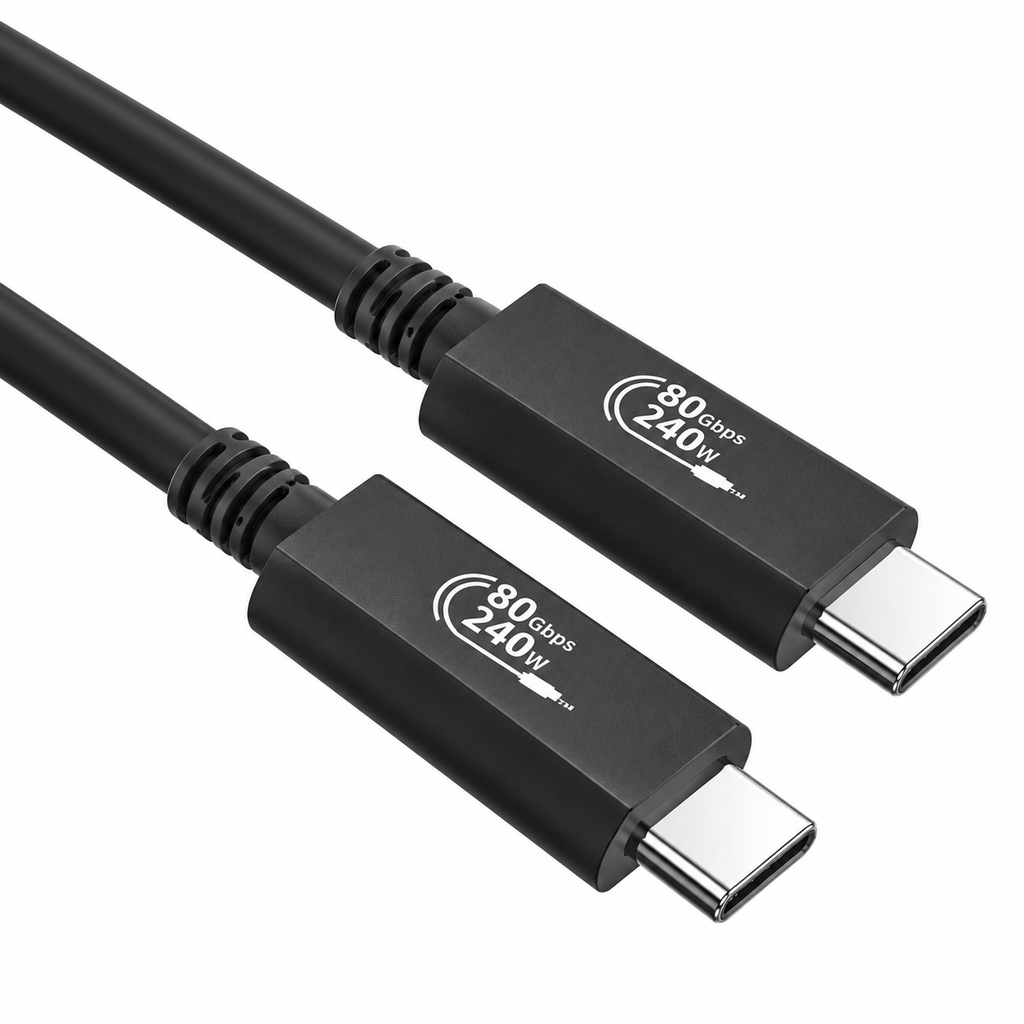

The Swegltek USB4 Micro Coaxial USB-C Cable combines data transfer up to 80Gbps, USB Power Delivery up to 240W and DisplayPort 2.1 video support in a compact copper cable. Choose 0.5m or 1m for compatible desktop equipment.
Key features

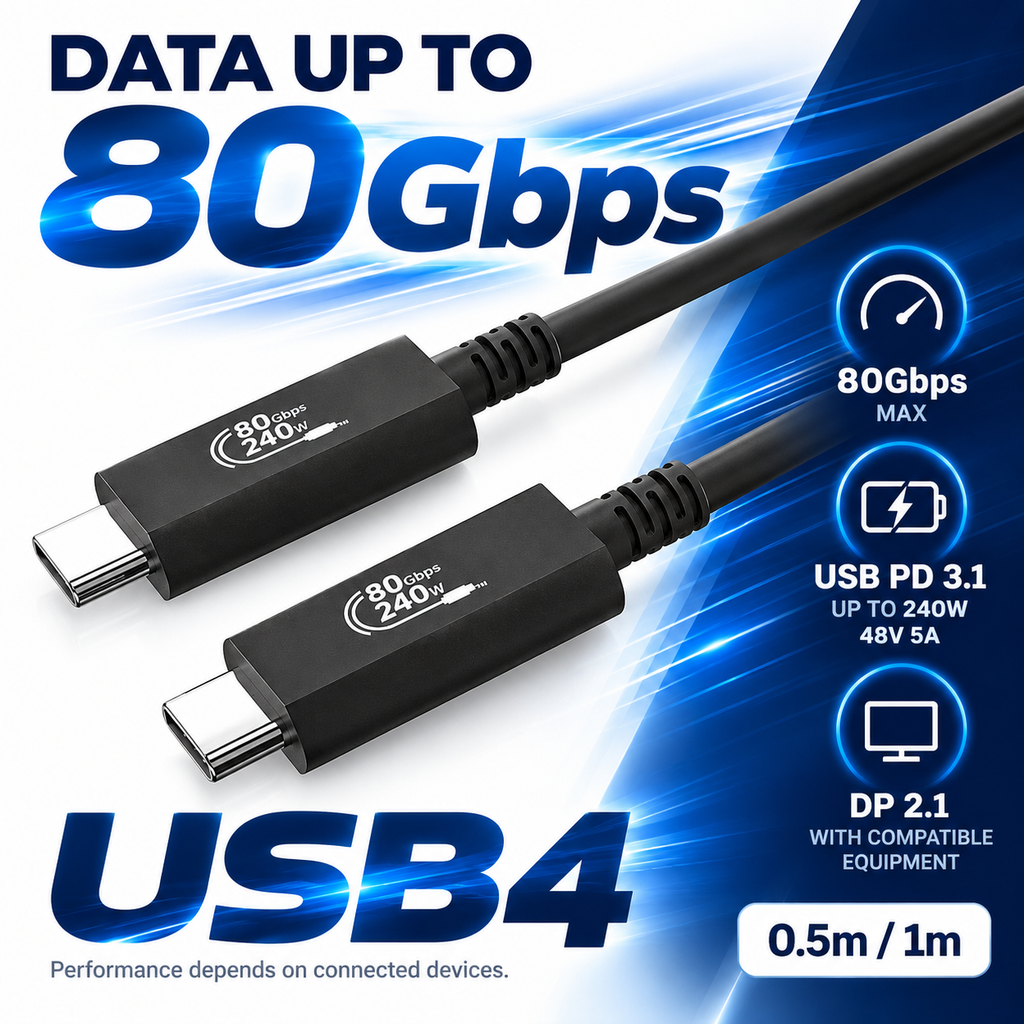

- Up to 80Gbps data: for compatible USB4 hosts, docks and peripherals. Actual throughput depends on the connected devices and workload.

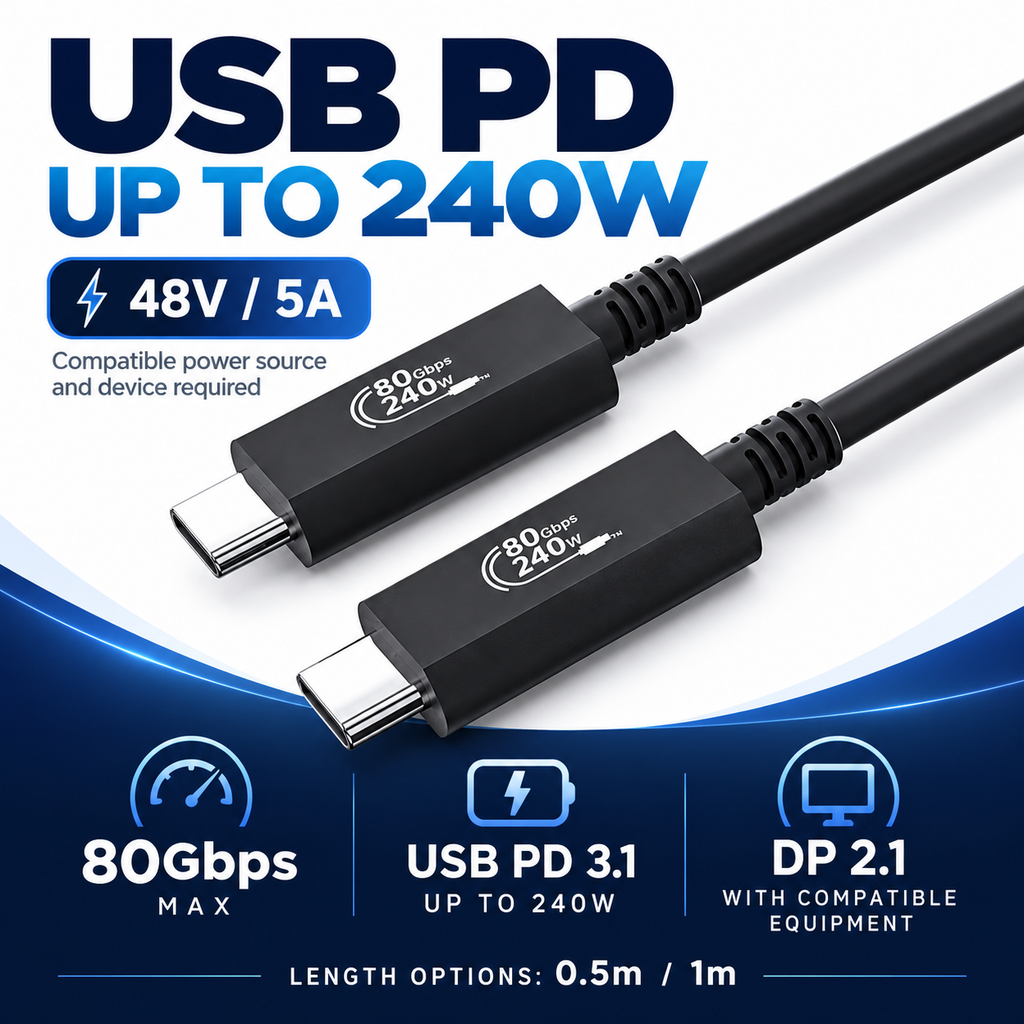

- USB PD 3.1 up to 240W: supports a maximum 48V/5A power profile with a compatible power source and receiving device. The cable does not generate power.

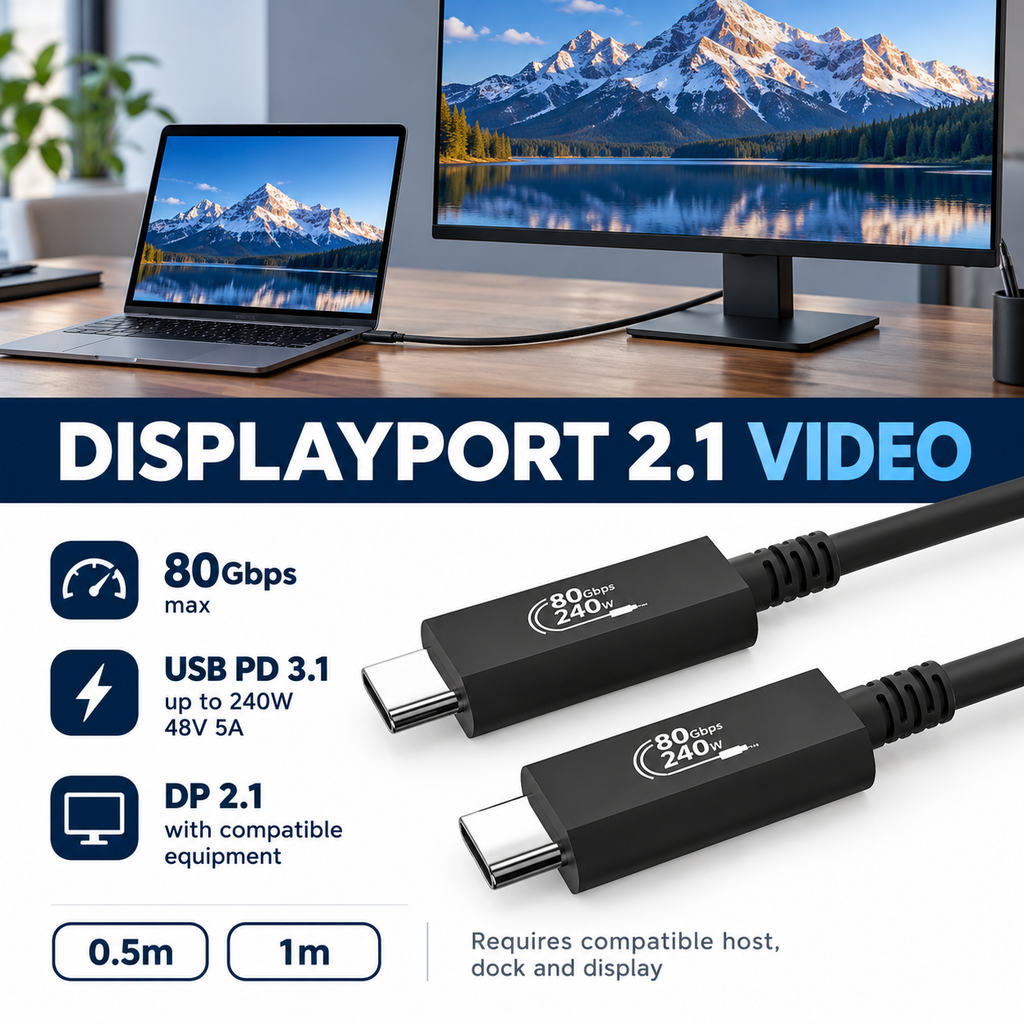

- DisplayPort 2.1 support: connect compatible USB-C video equipment. Available resolution, refresh rate and display count depend on the host, dock, display and negotiated mode.

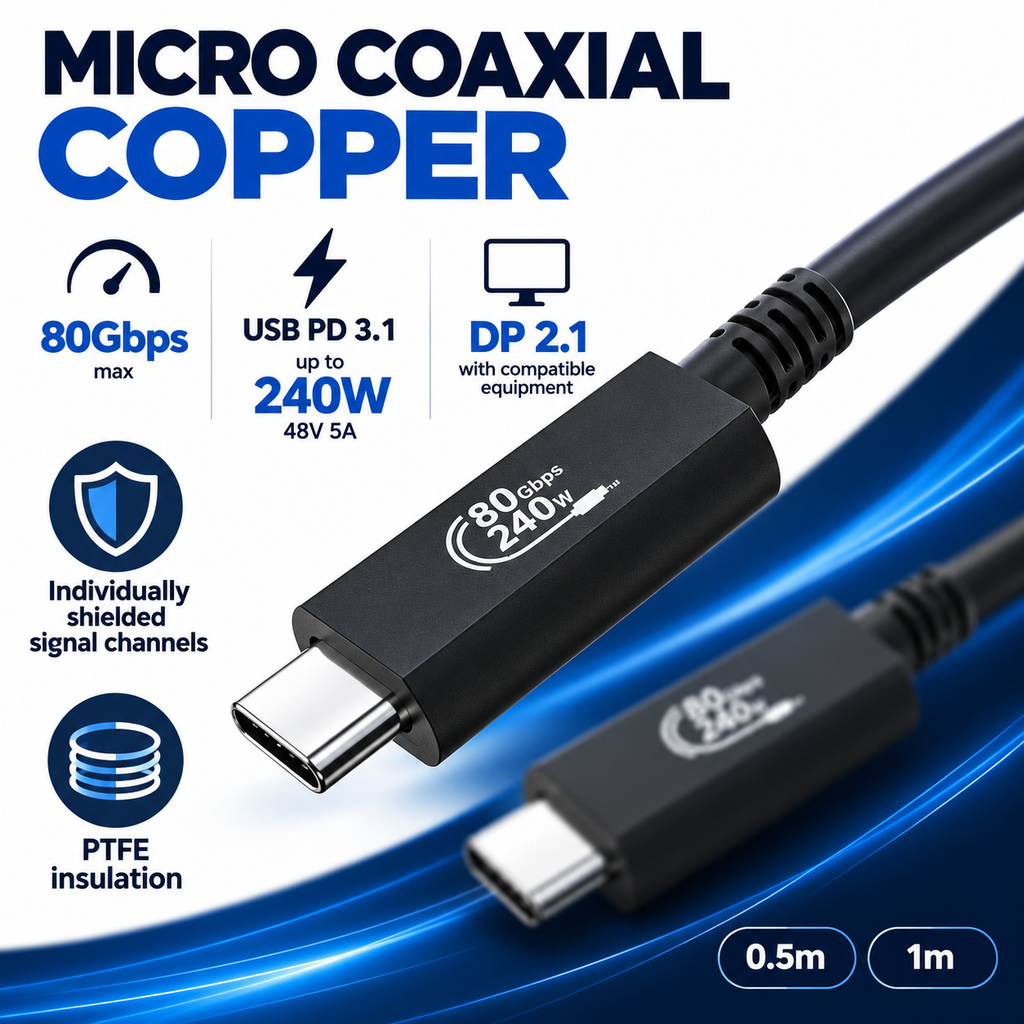

- Micro coaxial copper construction: individually shielded signal channels help manage crosstalk and electromagnetic interference.
- PTFE insulation: supports the cable's high-frequency transmission design.
- Matching straight USB-C ends: two slim black housings with ribbed strain reliefs and no fixing screws.
Built for compatible desktop setups

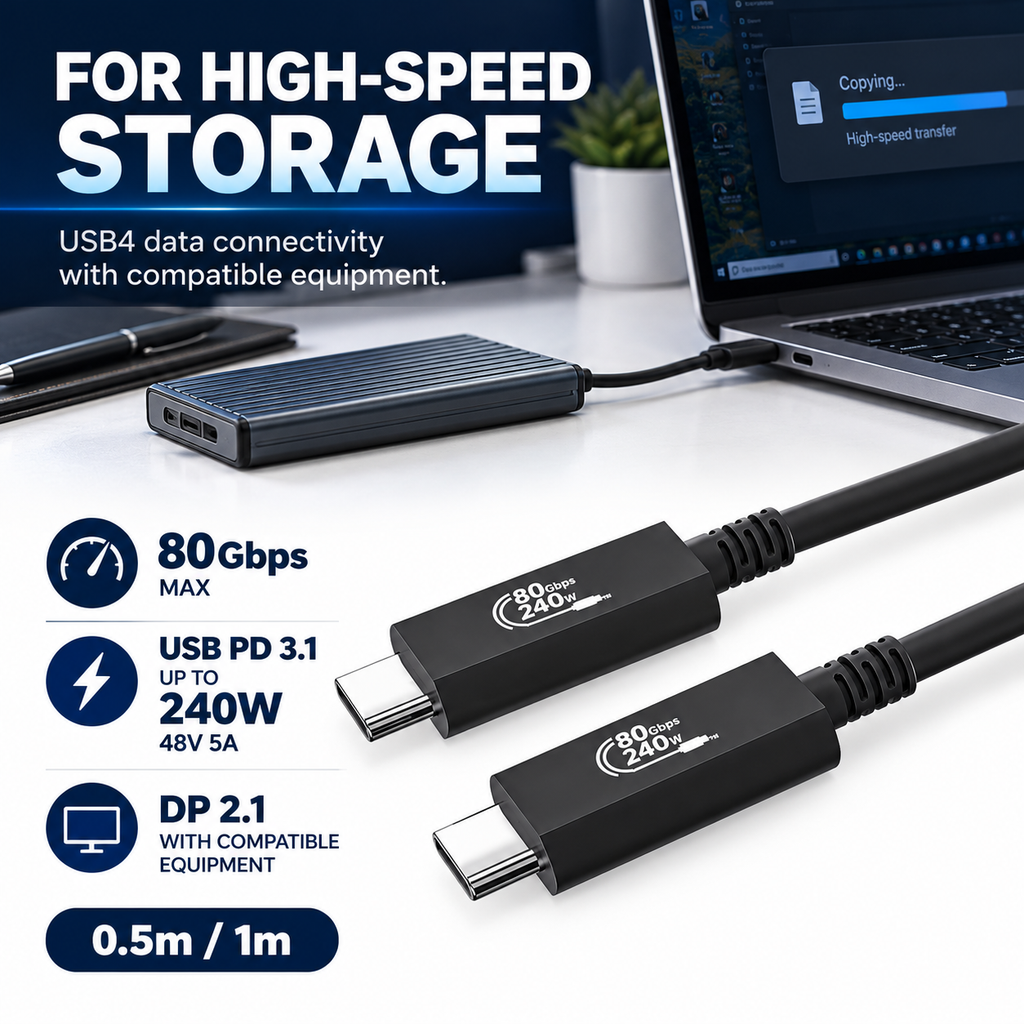

Connect USB4 storage, docks or professional workstations across a short desktop route. A 0.5m cable keeps nearby devices connected with less excess cable; a 1m cable gives additional placement room. Check the required data, power and video capabilities on both connected devices.
Specifications
| Item | Specification |
|---|---|
| Brand | Swegltek |
| Cable type | USB4 micro coaxial copper cable |
| Connectors | USB-C male to USB-C male; straight, unscrewed |
| Maximum USB data rate | 80Gbps; equipment dependent |
| Maximum USB PD rating | USB PD 3.1 up to 240W (48V/5A), with compatible equipment |
| Video support | DisplayPort 2.1; requires compatible source and receiving equipment |
| Signal construction | Micro coaxial copper with individually shielded channels |
| Insulation | PTFE |
| Lengths | 0.5m / 1m |
| Color | Black |
Before connecting
- Confirm that the host and peripheral support the USB4 speed needed for the application.
- For high-power delivery, use a compatible USB PD source and receiving device.
- For video, verify DisplayPort support on the host, dock and display. A USB-C socket alone does not establish video capability.
- Leave clearance for both housings and route with gentle bends.
Frequently asked questions
Is this an optical cable?
No. This product uses micro coaxial copper construction.
Does it have screw-lock connectors?
No. Both ends use plain straight USB-C male connectors.
Will every USB-C device run at 80Gbps or charge at 240W?
No. These are maximum cable ratings. Actual operation depends on the connected equipment and negotiated mode.
Is a particular multi-display resolution guaranteed?
No. Display count, resolution and refresh rate depend on the complete setup. Confirm the required mode with your equipment specifications.
$28.80
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Product Details
Everything you need to know about this product.
Extend USB-C Video to a DisplayPort Display
The swegltek SCTD-1200 USB-C to DisplayPort active optical cable connects a compatible USB-C video
source to a DisplayPort monitor, projector or professional display. Its integrated cable design provides a
direct display connection for equipment layouts that need more distance between the source and screen.
4K Video at 60Hz
Support for video up to 4K at 60Hz makes this USB-C to DP cable suitable for clear presentations, digital
signage and professional visual content. The supported resolution and refresh rate depend on the source,
display and complete system configuration.
DisplayPort 1.2 Optical Transmission
With DisplayPort 1.2 support and link bandwidth up to 21.6Gbps, this active optical cable uses fiber for
high-speed signal transmission along the cable run. The bandwidth rating describes the DisplayPort link;
this product is intended for display connectivity.
Length Options from 5m to 50m
Choose a 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m or 50m USB-C to DisplayPort cable to suit
the installation route. Allow for cable routing, connector access and equipment position when selecting
your length. Contact swegltek for project quantities or other length requirements within the 5–50m range.
Designed for Professional Display Installations
Conference rooms: connect compatible USB-C presentation sources to DisplayPort displays.
Digital signage: place compatible media source equipment farther from the screen.
Workstations: position the computer away from the display area.
AV installations: plan longer point-to-point video and audio cable routes to compatible DP equipment.
Check Your USB-C Video Output
Connect the USB-C end to a source that supports DisplayPort Alt Mode and the DisplayPort end to the
display input. A USB-C connector alone does not guarantee video output. Confirm source and display
compatibility, installation direction and power requirements before ordering.
Product Specifications
Technical specifications and product details.
| Model | SCTD-1200 |
|---|---|
| SCTD-1200Product type | USB-C to DisplayPort Active Optical Cable |
| Connectors | USB-C Male to DisplayPort Male |
| DisplayPort standard | DP 1.2 |
| Link bandwidth | Up to 21.6Gbps |
| Video | Up to 4K at 60Hz |
| Length range | 5–50m |
| 5–50mSignal source | USB-C with DisplayPort Alt Mode |
| Destination | Compatible DisplayPort display input |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
No. Its plug projects at 90° to the housing and cable axis, as shown.
Check the device interface, port recess, nearby connectors and required cable exit direction.
This listing describes USB data connectivity. USB-C video output and high-wattage laptop charging are not specified.
One cable in the selected length. Devices shown are for illustration.
Standard options cover 5m to 50m. Contact swegltek with your installation route and required length for other project options.
