swegltek Detachable HDMI Active Optical Cable | 4K 60Hz 18Gbps | 5–50m
Short description

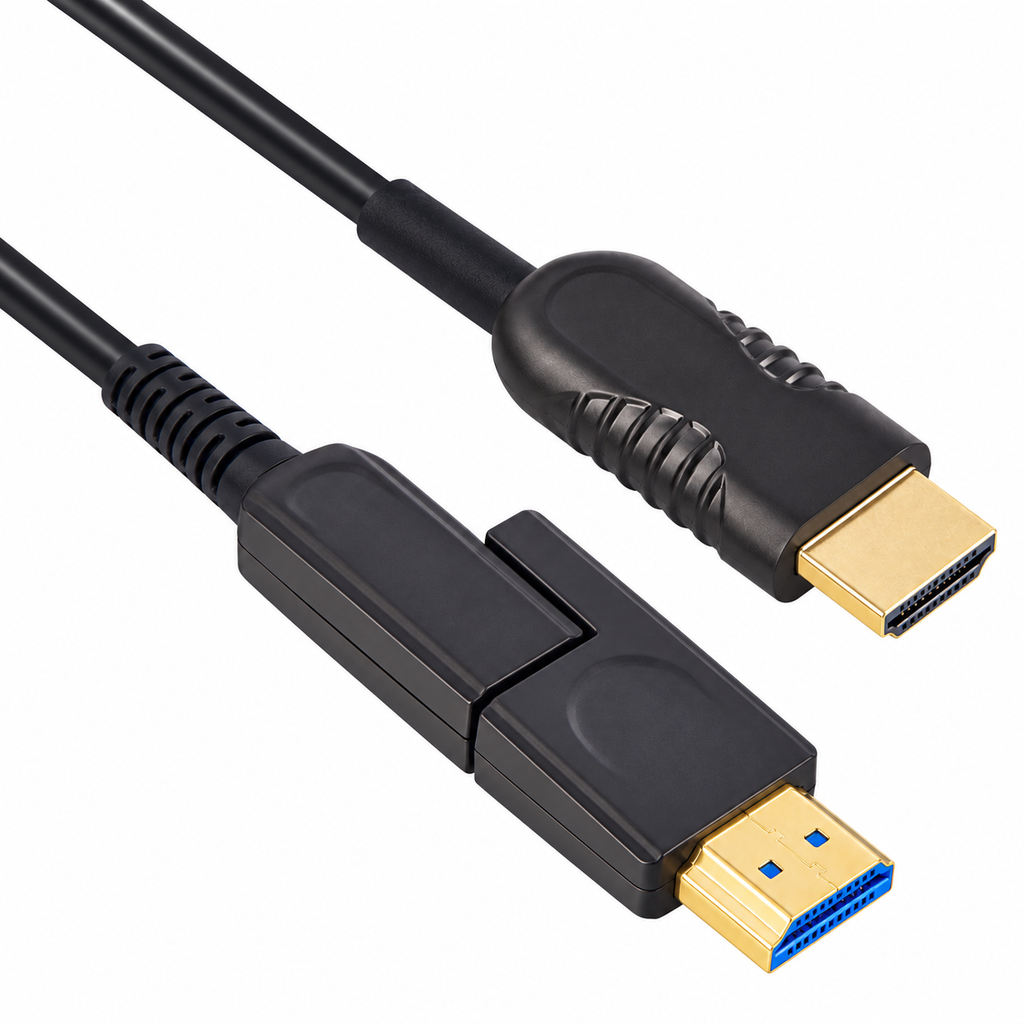

Route long HDMI connections through your installation path with the swegltek SHDC-8810 detachable HDMI active optical cable. The display-side Micro HDMI connector fits into a removable HDMI Type A adapter, allowing a smaller connector to pass through suitable conduit. Choose lengths from 5m to 50m for compatible 4K 60Hz audio and video systems.

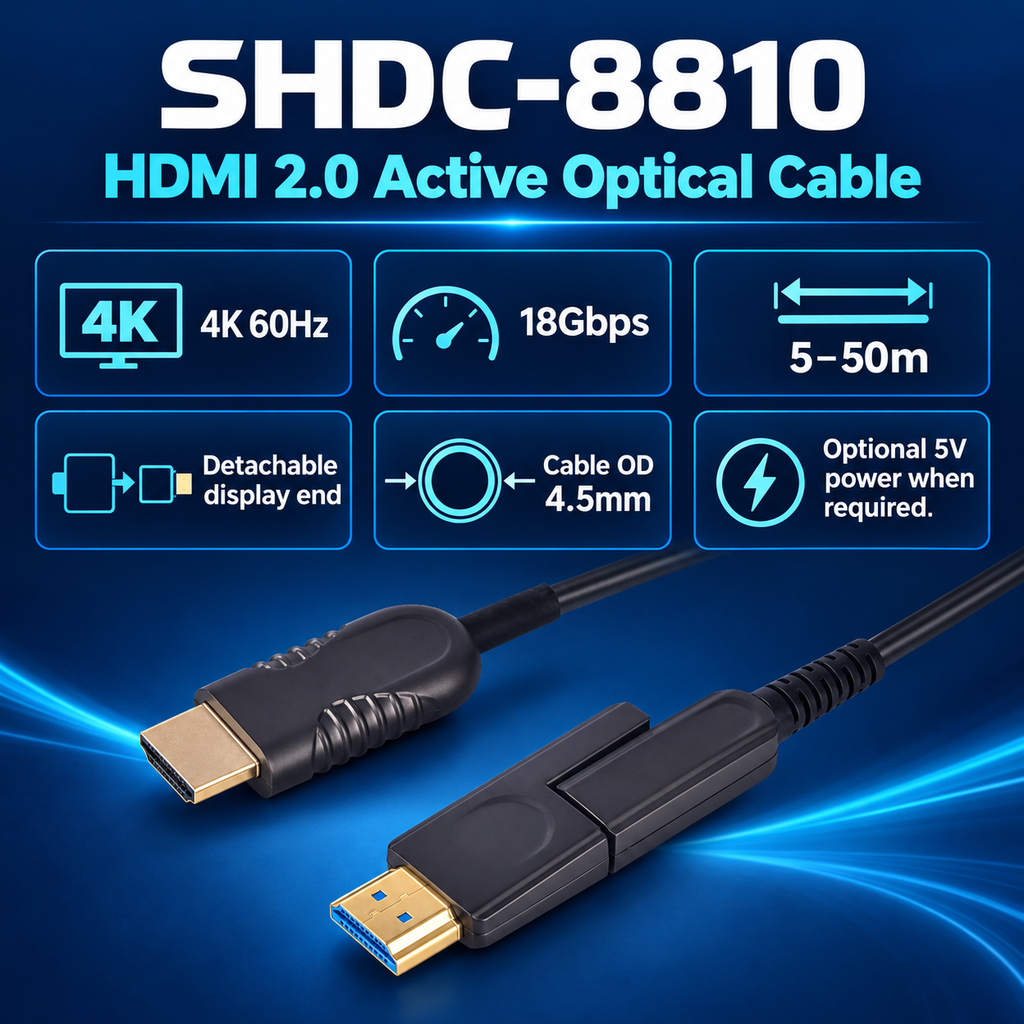

Key features
• Up to 4K at 60Hz with 4:4:4 chroma support, subject to source and display settings.
• HDMI 2.0 video bandwidth up to 18Gbps.
• Detachable display-side HDMI adapter for cable routing.
• Hybrid optical cable with OM3 fiber and copper conductors.
• 4.5mm cable outer diameter for installation planning.
• Clearly directional SOURCE-to-DISPLAY connection.
• Length options from 5m to 50m.
Installation guide
- Test the source, cable and display together before permanent installation.
- Check direction and remove the display-side HDMI adapter.

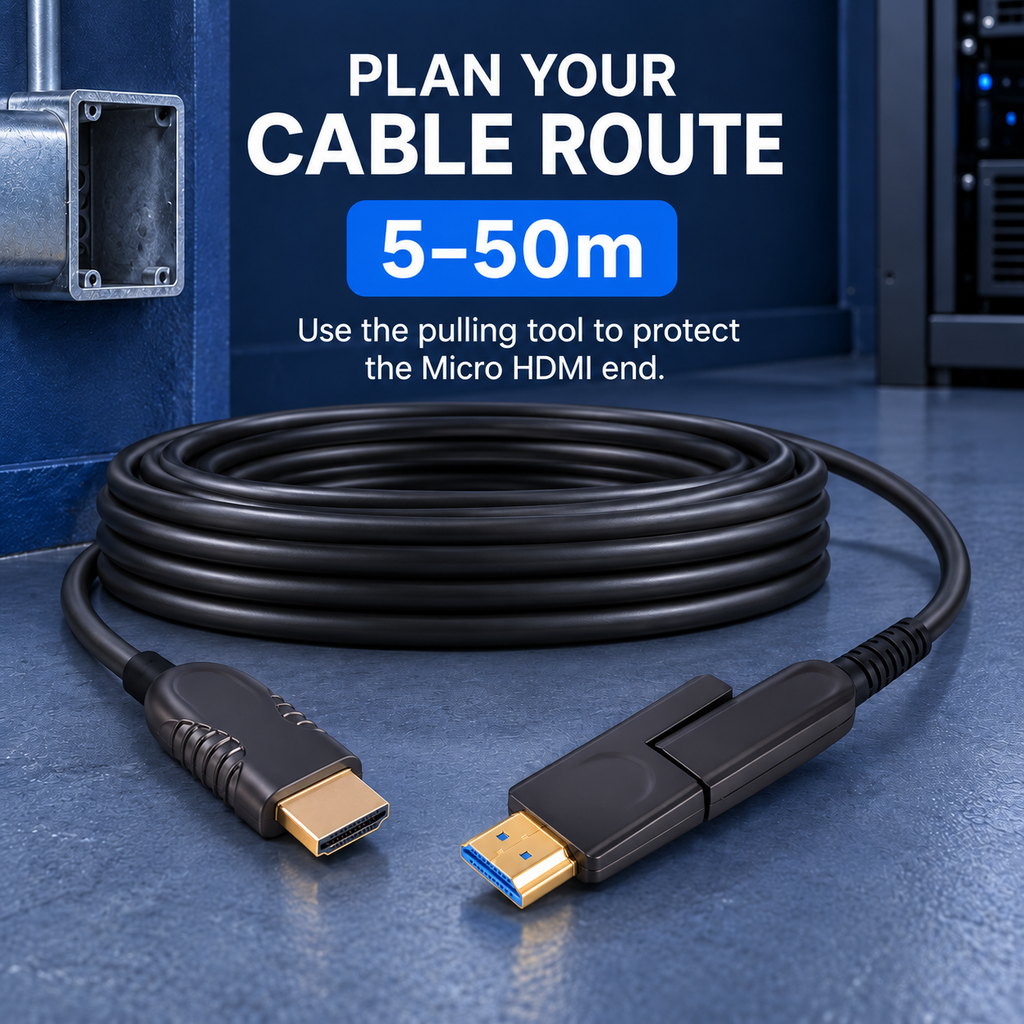

- Enclose the Micro HDMI connector in the pulling tool and close its cover.
- Attach the pulling line to the tool; protect the connector throughout routing.
- Avoid sharp bends. The specification lists a 20mm long-term bend radius; this is not a rated pulling-force limit.
- Refit the display adapter and connect SOURCE and DISPLAY to the correct devices.
- Power on the equipment and test video and audio. Add suitable 5V power if required.
$109.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Category:
HDMI AOC
Tags:
Product Details
Everything you need to know about this product.
Extend USB-C Video to a DisplayPort Display
The swegltek SCTD-1200 USB-C to DisplayPort active optical cable connects a compatible USB-C video
source to a DisplayPort monitor, projector or professional display. Its integrated cable design provides a
direct display connection for equipment layouts that need more distance between the source and screen.
4K Video at 60Hz
Support for video up to 4K at 60Hz makes this USB-C to DP cable suitable for clear presentations, digital
signage and professional visual content. The supported resolution and refresh rate depend on the source,
display and complete system configuration.
DisplayPort 1.2 Optical Transmission
With DisplayPort 1.2 support and link bandwidth up to 21.6Gbps, this active optical cable uses fiber for
high-speed signal transmission along the cable run. The bandwidth rating describes the DisplayPort link;
this product is intended for display connectivity.
Length Options from 5m to 50m
Choose a 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m or 50m USB-C to DisplayPort cable to suit
the installation route. Allow for cable routing, connector access and equipment position when selecting
your length. Contact swegltek for project quantities or other length requirements within the 5–50m range.
Designed for Professional Display Installations
Conference rooms: connect compatible USB-C presentation sources to DisplayPort displays.
Digital signage: place compatible media source equipment farther from the screen.
Workstations: position the computer away from the display area.
AV installations: plan longer point-to-point video and audio cable routes to compatible DP equipment.
Check Your USB-C Video Output
Connect the USB-C end to a source that supports DisplayPort Alt Mode and the DisplayPort end to the
display input. A USB-C connector alone does not guarantee video output. Confirm source and display
compatibility, installation direction and power requirements before ordering.
Product Specifications
Technical specifications and product details.
| Model | |
|---|---|
| SCTD-1200Product type | USB-C to DisplayPort Active Optical Cable |
| Connectors | USB-C Male to DisplayPort Male |
| DisplayPort standard | DP 1.2 |
| Link bandwidth | Up to 21.6Gbps |
| Video | Up to 4K at 60Hz |
| Length range | 5–50m |
| 5–50mSignal source | USB-C with DisplayPort Alt Mode |
| Destination | Compatible DisplayPort display input |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
No. Its plug projects at 90° to the housing and cable axis, as shown.
Check the device interface, port recess, nearby connectors and required cable exit direction.
This listing describes USB data connectivity. USB-C video output and high-wattage laptop charging are not specified.
One cable in the selected length. Devices shown are for illustration.
Standard options cover 5m to 50m. Contact swegltek with your installation route and required length for other project options.
