Swegltek 90° USB-A to USB-B Active Optical Cable with Screw Lock | 10Gbps | 5–50m
Longer USB connections. Right-angle device-side routing.

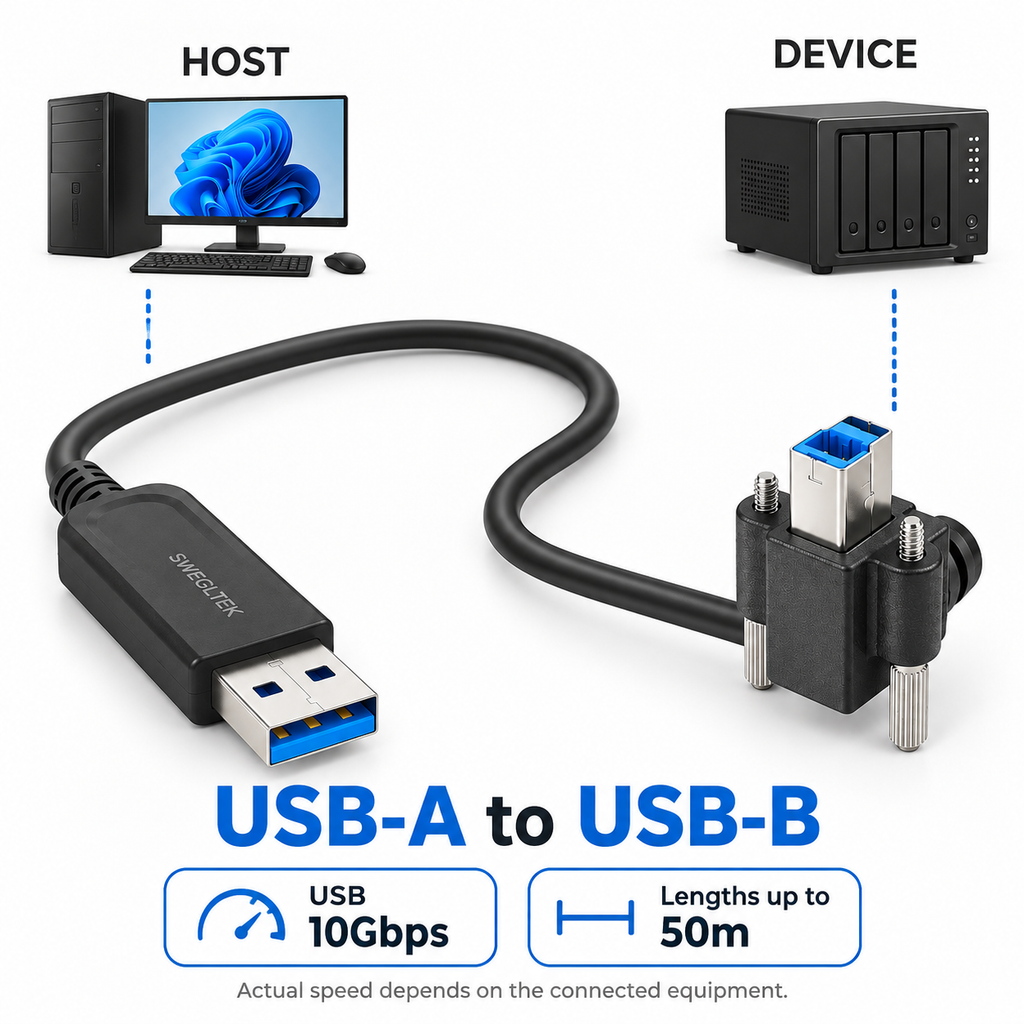

The Swegltek 90° USB-A to USB-B Active Optical Cable connects a compatible USB-A host to a full-size USB 3.0 Type-B device. With a specified maximum data rate of 10Gbps and lengths up to 50m, it gives you more flexibility when positioning equipment around a workstation or installation.
Key features
- Up to 10Gbps: maximum specified cable data rate; actual throughput depends on the connected host, device and configuration.
- Lengths up to 50m: choose a cable for the full installation route, including bends and service access.

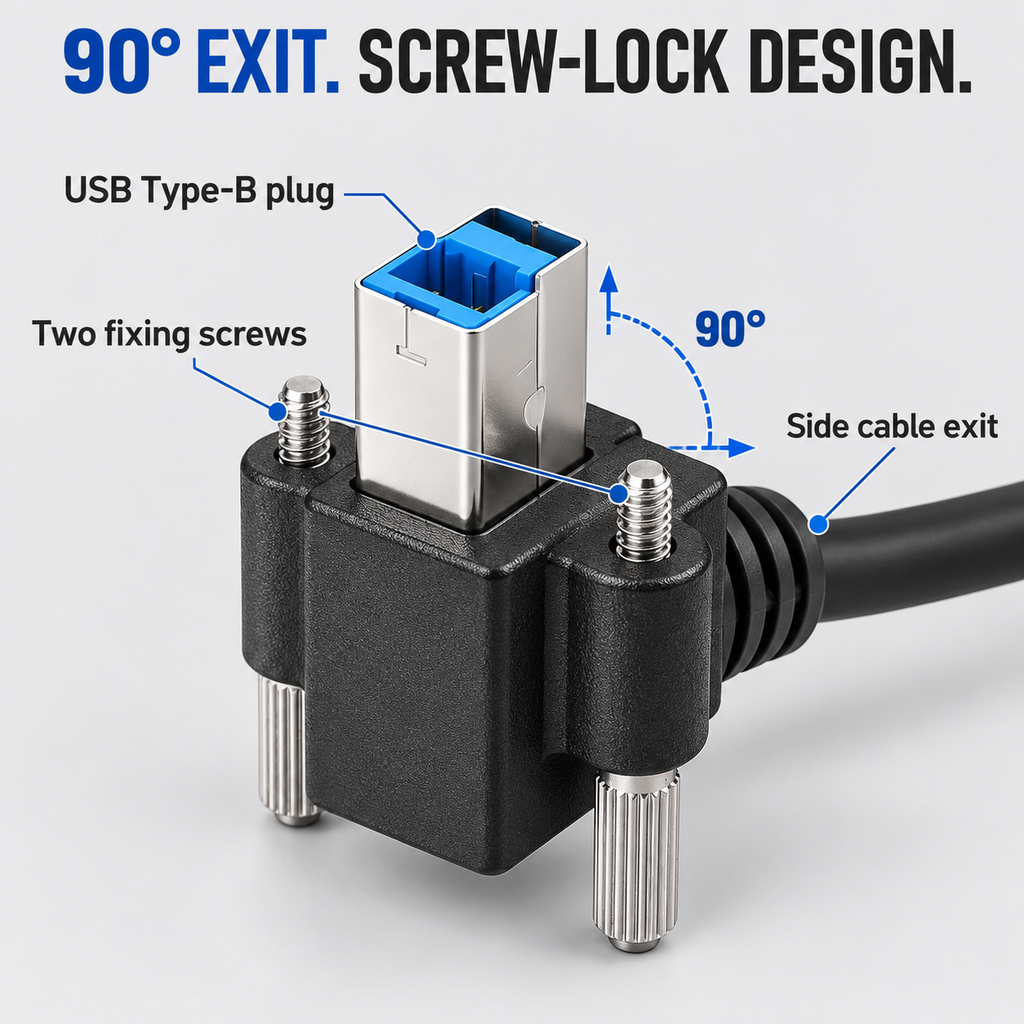

- 90° Type-B end: side cable exit supports planned routing around equipment where rear clearance is limited.
- Two fixing screws: secure the device-side connection to equipment with matching mounting holes.

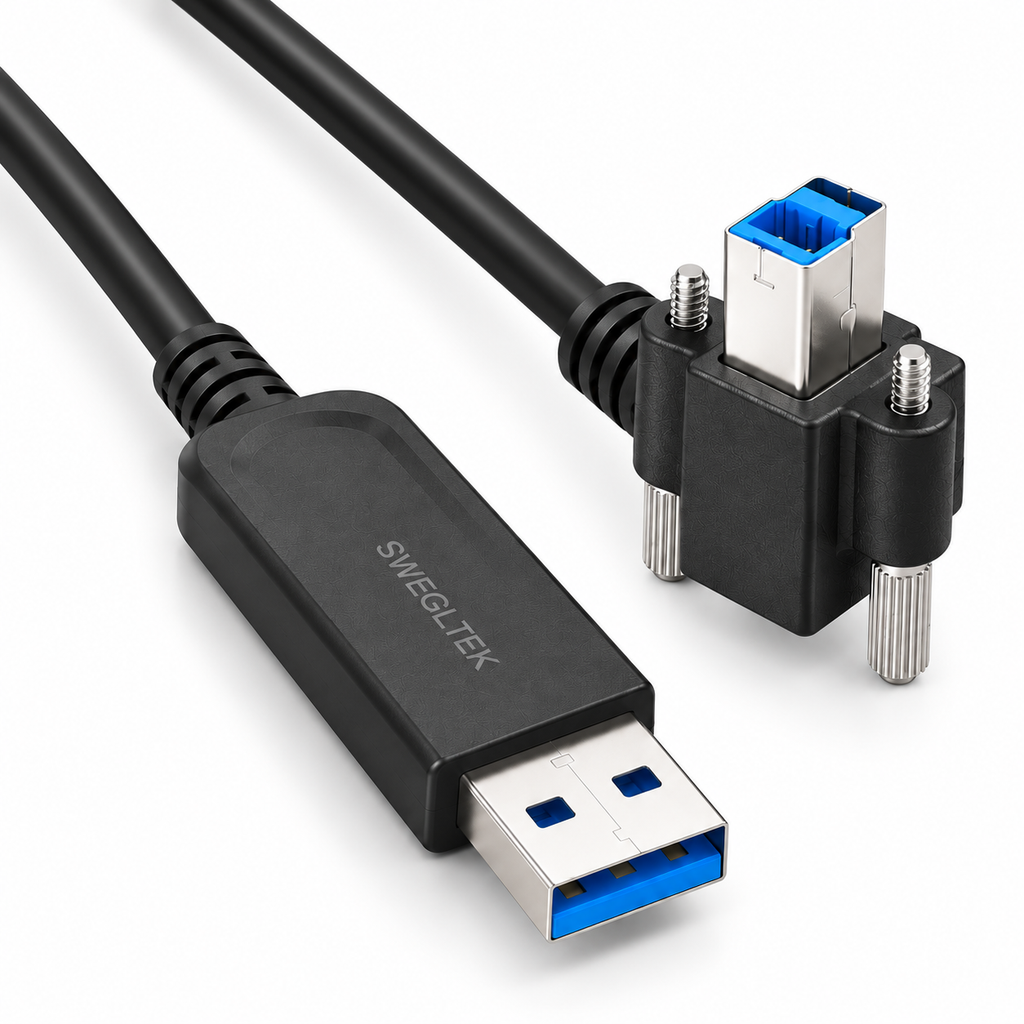

- Straight USB-A host connector: elongated black housing with an integrated cable assembly.
Designed for compatible equipment
Plan a connection between a USB-A computer or controller and compatible USB Type-B equipment in industrial inspection, instrument workstations or professional USB installations. Check the exact device socket, mounting-hole arrangement, software and power requirements before ordering.
Match the plug and the cable exit
The device end uses a full-size, stepped USB 3.0 Type-B male plug. It is different from Micro-B, USB-C and the smaller USB 2.0 Type-B plug. Check the socket shape and the 90° cable-exit orientation against your equipment. The fixing screws require matching threaded mounts; a standard USB socket alone does not provide screw-lock attachment.
Specifications
| Item | Product information |
|---|---|
| Brand | Swegltek |
| Product type | USB active optical cable |
| Host connector | USB Standard-A male; straight housing |
| Device connector | Full-size USB 3.0 Type-B male; 90° cable exit |
| Fixing method | Two device-side screws; matching equipment mounts required |
| Maximum specified data rate | 10Gbps; equipment and configuration dependent |
| Available lengths | 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m, 50m |
| Cable color | Black |
| Power arrangement | Confirm peripheral power requirements for the selected length and equipment |
Installation checklist
- Connect USB-A to the host and USB-B to the compatible peripheral.
- Check the physical plug shape, cable-exit direction and screw-hole alignment.
- Route with gentle bends and avoid tension on connectors.
- Retain any power supply required by the peripheral.
- Test the complete system at the selected length before fixing the cable route.
Frequently asked questions
Is this a Micro-B cable?
No. The device-side plug is full-size USB 3.0 Type-B. Compare its stepped shape with the socket on your equipment.
Does every system transfer at 10Gbps?
No. 10Gbps is the maximum specified cable data rate. The host, peripheral, software and configuration determine actual transfer performance.
Will the screws fit any USB-B device?
No. Your equipment must have compatible threaded mounting holes. Confirm their spacing and thread specification before purchase.
Does it provide USB-C video output or fast charging?
This product connects USB-A hosts to compatible USB-B peripherals for USB data communication. USB-C display output and USB Power Delivery charging are not specified.
Does host-to-device orientation mean data only travels one way?
No. End assignment describes how to connect the cable; it is not a claim that USB data traffic is limited to one direction.
