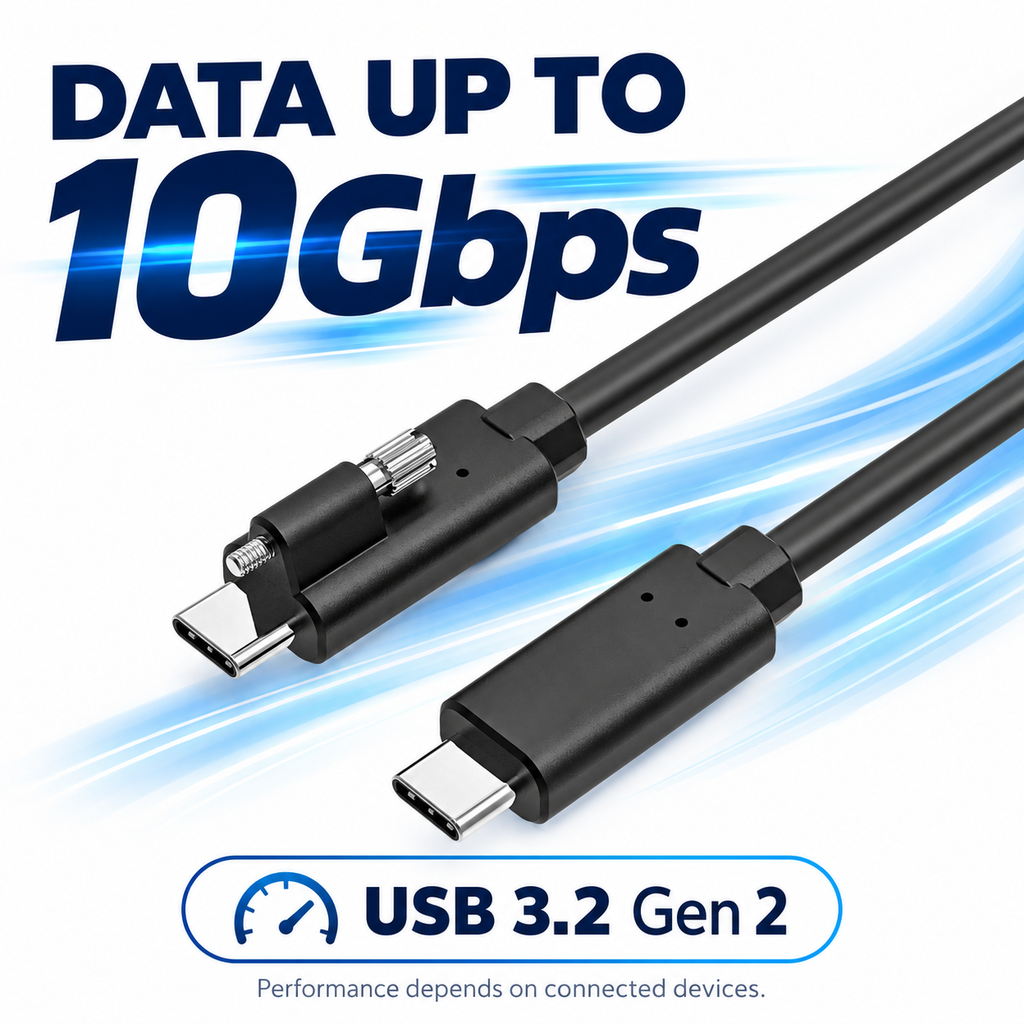

Swegltek USB-C Active Optical Cable | 10Gbps, 60W | Straight to Straight Screw Lock | 5–10m
Longer USB-C connections for professional equipment
The Swegltek USB-C Active Optical Cable supports USB 3.2 Gen 2 data transfer up to 10Gbps and USB Power Delivery up to 60W over lengths of 5m, 7.5m or 10m. Its hybrid optical and copper construction combines extended USB data reach with supported power delivery.
Straight connections with single-screw fixing
Both ends use straight USB-C male plugs. One end has one axial fixing screw; the opposite end is unscrewed. Compare the actual plug orientation, housing clearance and screw-mount dimensions with your equipment before ordering.
Key features
- Up to 10Gbps USB data: designed for compatible USB 3.2 Gen 2 hosts and peripherals; actual throughput depends on connected equipment.
- USB PD up to 60W: requires a compatible power source, device and negotiated power profile. The cable does not generate power.
- Bi-directional connection: no fixed host/device end assignment for supported USB data operation.
- Hybrid optical and copper construction: optical high-speed transmission with copper conductors for supported electrical functions.
- Single-screw mounting at one end: for equipment with a matching threaded mounting hole above its USB-C socket.
- Three lengths: 5m, 7.5m and 10m.
Professional applications
Arrange compatible camera-tethering, storage or industrial USB equipment across a workspace. Camera tethering and transferred video files are USB data applications; direct display video output is not specified for this model. Check the required functions on both connected devices.
Specifications
| Item | Specification |
|---|---|
| Brand | Swegltek |
| Connector configuration | Straight to Straight Screw Lock; USB-C male at both ends |
| Fixing | One screw at the straight screw-lock end; opposite end unscrewed |
| USB data | USB 3.2 Gen 2, up to 10Gbps |
| Backward compatibility | USB 2.0 / 1.1 with compatible equipment |
| Power delivery | USB PD up to 60W, equipment dependent |
| Construction | Hybrid optical fiber and copper; black PVC jacket |
| Connection direction | Bi-directional; no fixed host/device end assignment |
| Lengths | 5m / 7.5m / 10m |
Installation and compatibility
- Confirm USB data and power requirements on both devices.
- Check port placement, screw thread, port-to-hole spacing and housing clearance.
- Seat the plug fully before securing the fixing screw. Avoid overtightening.
- Route with gentle bends and keep pulling force off the connectors.
- Test data and required power operation before completing the installation.
Frequently asked questions
Are there screws at both ends?
No. Only the straight screw-lock end has a fixing screw.
Does it work as a USB4 or Thunderbolt cable?
No. This model is not designed for USB4 or Thunderbolt operation.
Does it provide direct video output to a monitor?
DisplayPort Alt Mode and direct display-video support are not specified for this model.
Will every device receive 60W?
No. 60W is the maximum supported USB PD rating. Actual power depends on the connected source, device and negotiated profile.
$169.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Product Details
Everything you need to know about this product.
Extend USB-C Video to a DisplayPort Display
The swegltek SCTD-1200 USB-C to DisplayPort active optical cable connects a compatible USB-C video
source to a DisplayPort monitor, projector or professional display. Its integrated cable design provides a
direct display connection for equipment layouts that need more distance between the source and screen.
4K Video at 60Hz
Support for video up to 4K at 60Hz makes this USB-C to DP cable suitable for clear presentations, digital
signage and professional visual content. The supported resolution and refresh rate depend on the source,
display and complete system configuration.
DisplayPort 1.2 Optical Transmission
With DisplayPort 1.2 support and link bandwidth up to 21.6Gbps, this active optical cable uses fiber for
high-speed signal transmission along the cable run. The bandwidth rating describes the DisplayPort link;
this product is intended for display connectivity.
Length Options from 5m to 50m
Choose a 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m or 50m USB-C to DisplayPort cable to suit
the installation route. Allow for cable routing, connector access and equipment position when selecting
your length. Contact swegltek for project quantities or other length requirements within the 5–50m range.
Designed for Professional Display Installations
Conference rooms: connect compatible USB-C presentation sources to DisplayPort displays.
Digital signage: place compatible media source equipment farther from the screen.
Workstations: position the computer away from the display area.
AV installations: plan longer point-to-point video and audio cable routes to compatible DP equipment.
Check Your USB-C Video Output
Connect the USB-C end to a source that supports DisplayPort Alt Mode and the DisplayPort end to the
display input. A USB-C connector alone does not guarantee video output. Confirm source and display
compatibility, installation direction and power requirements before ordering.
Product Specifications
Technical specifications and product details.
| Model | |
|---|---|
| SCTD-1200Product type | USB-C to DisplayPort Active Optical Cable |
| Connectors | USB-C Male to DisplayPort Male |
| DisplayPort standard | DP 1.2 |
| Link bandwidth | Up to 21.6Gbps |
| Video | Up to 4K at 60Hz |
| Length range | 5–50m |
| 5–50mSignal source | USB-C with DisplayPort Alt Mode |
| Destination | Compatible DisplayPort display input |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
No. Its plug projects at 90° to the housing and cable axis, as shown.
Check the device interface, port recess, nearby connectors and required cable exit direction.
This listing describes USB data connectivity. USB-C video output and high-wattage laptop charging are not specified.
One cable in the selected length. Devices shown are for illustration.
Standard options cover 5m to 50m. Contact swegltek with your installation route and required length for other project options.
