swegltek USB-C Fiber Optic Data Cable | 10Gbps USB-C to USB-C AOC | 5–50m
Short description
Extend a compatible USB data connection with the swegltek SCDC-3100 USB-C active optical cable. With USB 3.1 Gen2 bandwidth up to 10Gbps, a hybrid optical-fiber and copper construction, and lengths up to 50m, this USB-C to USB-C data cable supports installations where the host and peripheral need more separation. This model is for USB data transmission and does not provide video output.
Key features
- Up to 10Gbps: USB 3.1 Gen2 data bandwidth for compatible hosts and peripherals. Actual transfer speed depends on the connected equipment and configuration.
- Long-distance USB data: Choose cable lengths up to 50m for room layouts, equipment racks and remote peripheral placement.

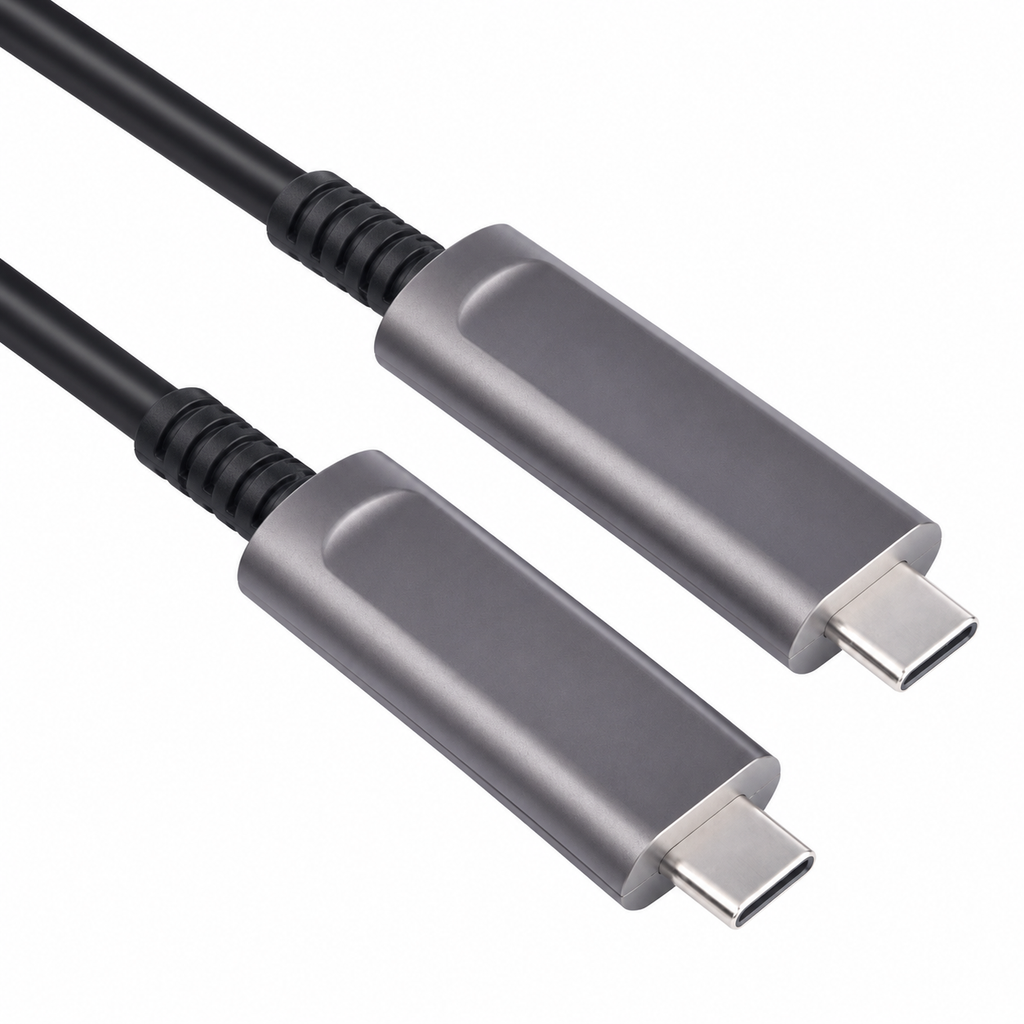

- USB-C to USB-C: Straight USB Type-C male connectors with slim gray housings and black strain reliefs.
- Hybrid active optical construction: Optical fiber and copper conductors combine within one cable for long-distance USB data connectivity.
- Camera and acquisition workflows: Suitable for compatible USB data cameras and data acquisition equipment after checking interface and power requirements.
- Data-focused connection: This model does not support USB-C video output. It is not specified as a USB Power Delivery charging cable.
$109.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Category:
USB AOC
Tags:
Product Details
Everything you need to know about this product.
More room between host and device
The SCDC-3100 long-distance USB-C cable lets you place compatible USB equipment farther from its host computer. Use it for a USB camera in a meeting space or compatible data acquisition equipment in a workstation installation. Select the length to suit the complete cable route, including service loops.
Confirm the data interface
USB-C describes the connector shape; supported functions depend on the equipment and cable. This active optical USB-C cable supports USB data at up to 10Gbps. Check the USB data standard supported by the host and peripheral before ordering. A USB-C display connection that requires video is outside this model’s stated function.
Device power
The supplied model specification lists a maximum remote-device supply of 5V 800mA. Confirm available power for the selected cable length and the peripheral’s startup and operating requirements, especially for the extended 50m configuration. Use the device’s approved power arrangement where required. Do not assume laptop charging or USB PD support.
Installation
Check host and device end identification before routing. Confirm the equipment’s USB data compatibility and power needs. Connect and test the cable with the intended devices before securing the installation. Route with gentle bends, and avoid pulling on the housings or strain reliefs.
Product Specifications
Technical specifications and product details.
| Brand | swegltek |
|---|---|
| Model | SCDC-3100 |
| Product type | USB-C active optical data cable |
| Connectors | USB Type-C male to USB Type-C male |
| USB standard | USB 3.1 Gen2 |
| Maximum data bandwidth | 10Gbps |
| Offered length range | 5-50m, custom lengths subject to availability |
| Cable construction | Hybrid optical fiber and copper wire |
| Video output | Not supported by this data-only model |
| Remote-device power | Up to 5V 800mA per model specification; confirm for selected length |
| Listed cable power consumption | 0.5W |
| Housing and cable appearance | Gray connector housings and black cable |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
No. SCDC-3100 is a data-only cable and does not provide USB-C video output.
No. 10Gbps is the maximum specified bandwidth. The host, peripheral and configuration determine actual throughput.
USB Power Delivery charging is not specified. The model sheet lists limited remote-device power of up to 5V 800mA; confirm suitability for your peripheral and cable length.
It can be considered for cameras with a compatible USB data interface and suitable power arrangement. Check the specific camera and host combination before installation.
Universal compatibility is not established by the model specification. Confirm the exact device and USB operating mode. This product is listed as USB 3.1 Gen2, not as a Thunderbolt-certified cable.
The offered range extends to 50m. Confirm stock and lead time for the required length.
