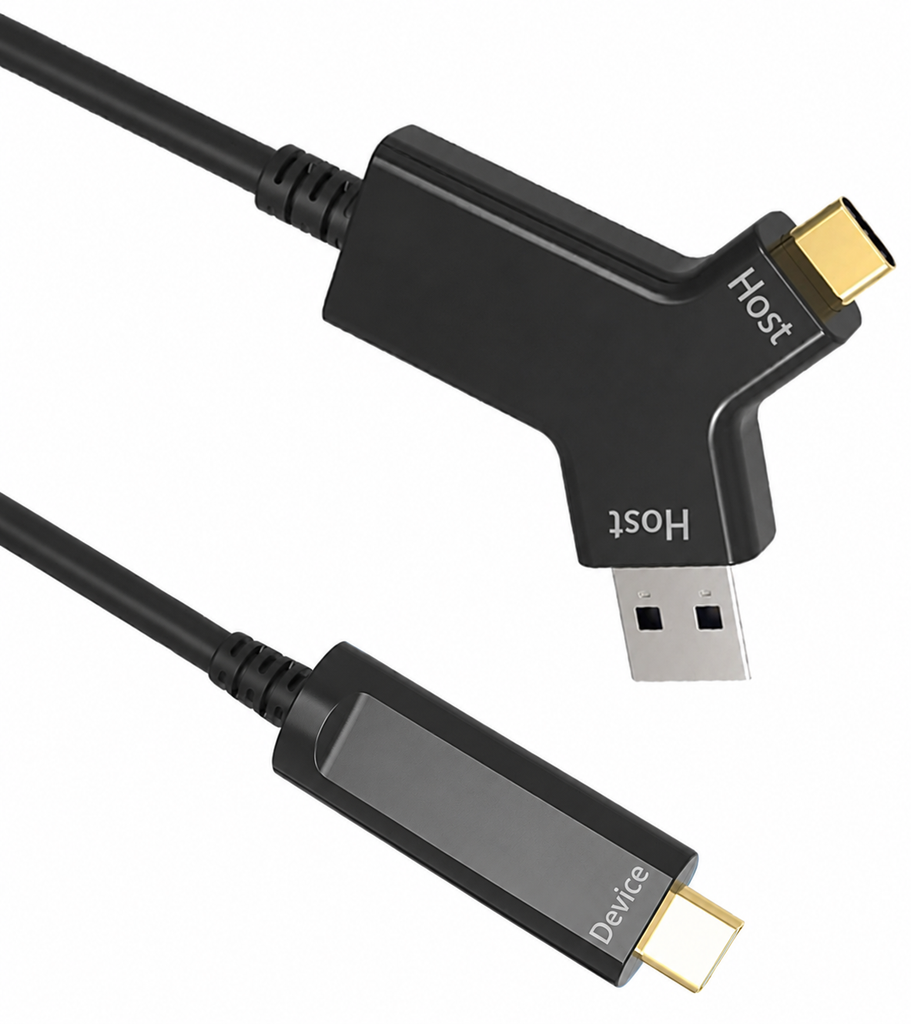

swegltek SUYC-3250 USB-A and USB-C to USB-C Active Optical Cable | Y Host, Up to 10Gbps | 5–50m
Short description
Plan long-distance USB data connections with the swegltek SUYC-3250 active optical cable. Its integrated Y-shaped USB-A and USB-C host assembly connects through optical fiber to a straight USB-C device end. With a specified maximum link rate of 10Gbps and lengths up to 50m, it supports flexible placement of compatible USB cameras, storage and other peripherals. Confirm host connector use and remote device power before installation.
Key features
- Up to 50m reach for compatible USB equipment placed away from the host computer.
- Up to 10Gbps link rate with compatible host and device hardware; actual performance varies.
- Integrated USB-A and USB-C Y-shaped host assembly with a USB-C device connector.
- Active optical transmission using 850nm VCSEL multimode technology.
- 4.5mm cable diameter for planned routes with gentle bends and connector clearance.
- Windows, macOS and Linux support; peripheral drivers and device compatibility remain relevant.
$119.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Category:
USB AOC
Tags:
Product Details
Everything you need to know about this product.

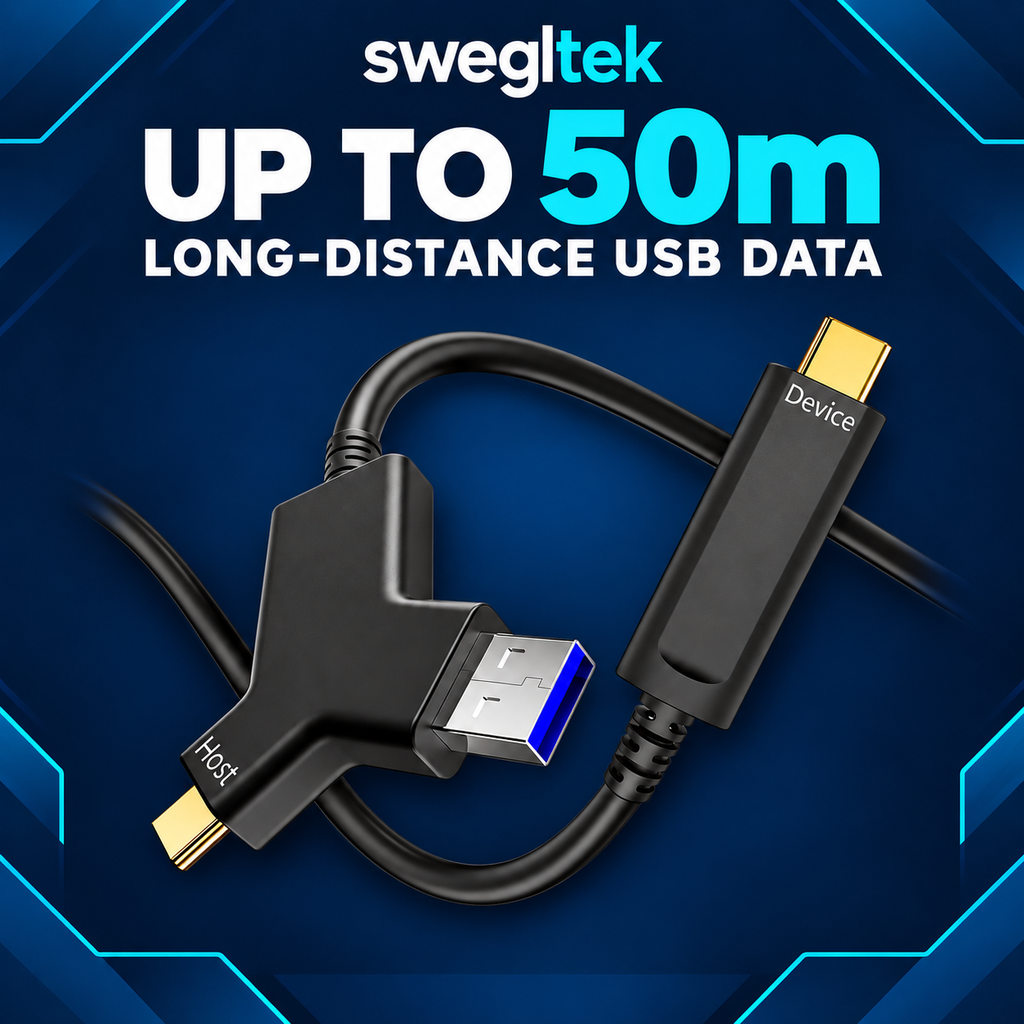

Long distance USB connectivity
The SUYC-3250 USB active optical cable gives compatible peripherals more placement flexibility. Position a conference camera near the meeting area or an inspection camera near the workpiece while keeping the host computer in a convenient location. Select a cable length for the actual route, including slack at each end.

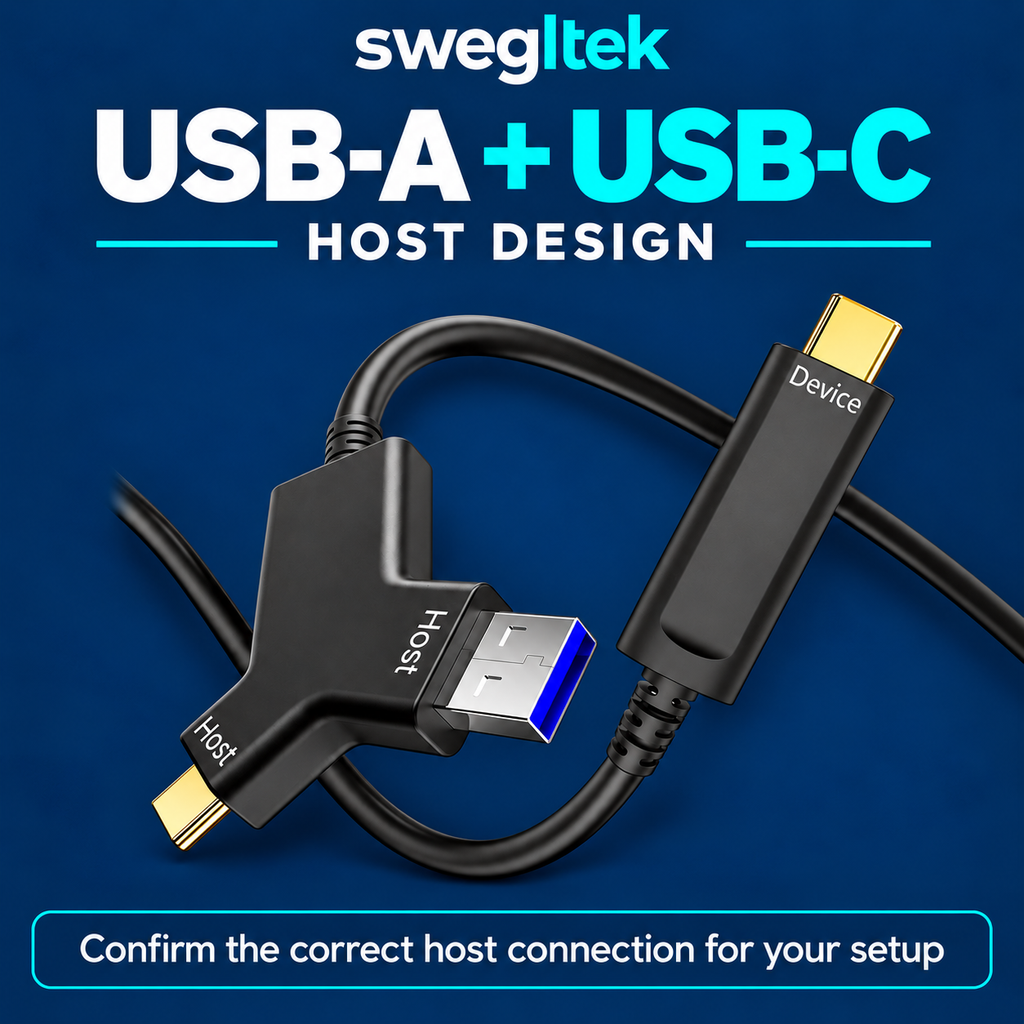

A distinctive integrated host connector

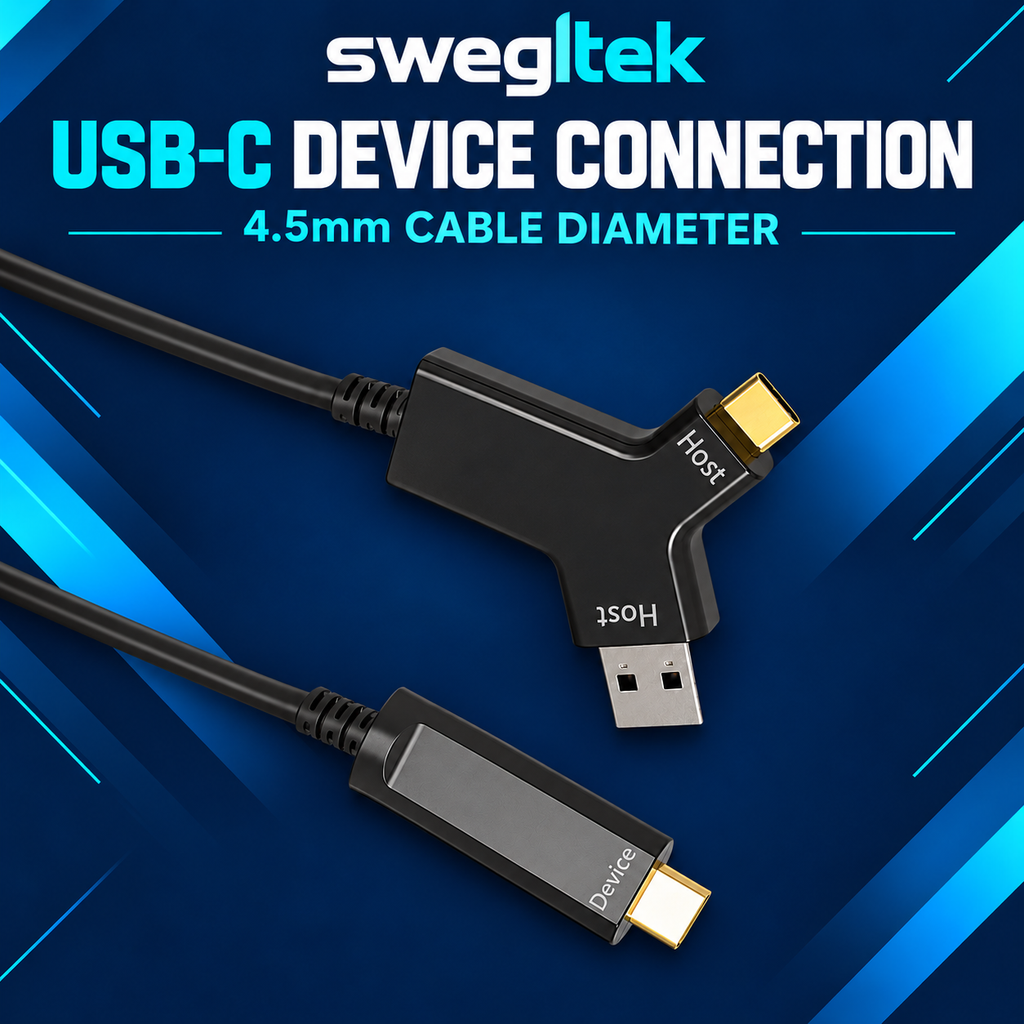

The USB-A and USB-C plugs are built into a single rigid Y-shaped host housing. The opposite end uses a straight USB-C plug for the device. Confirm the correct use of the two host connectors for your configuration. The supplied specification does not establish simultaneous connection to two hosts; this cable is not advertised as a two-computer switch or a hub.

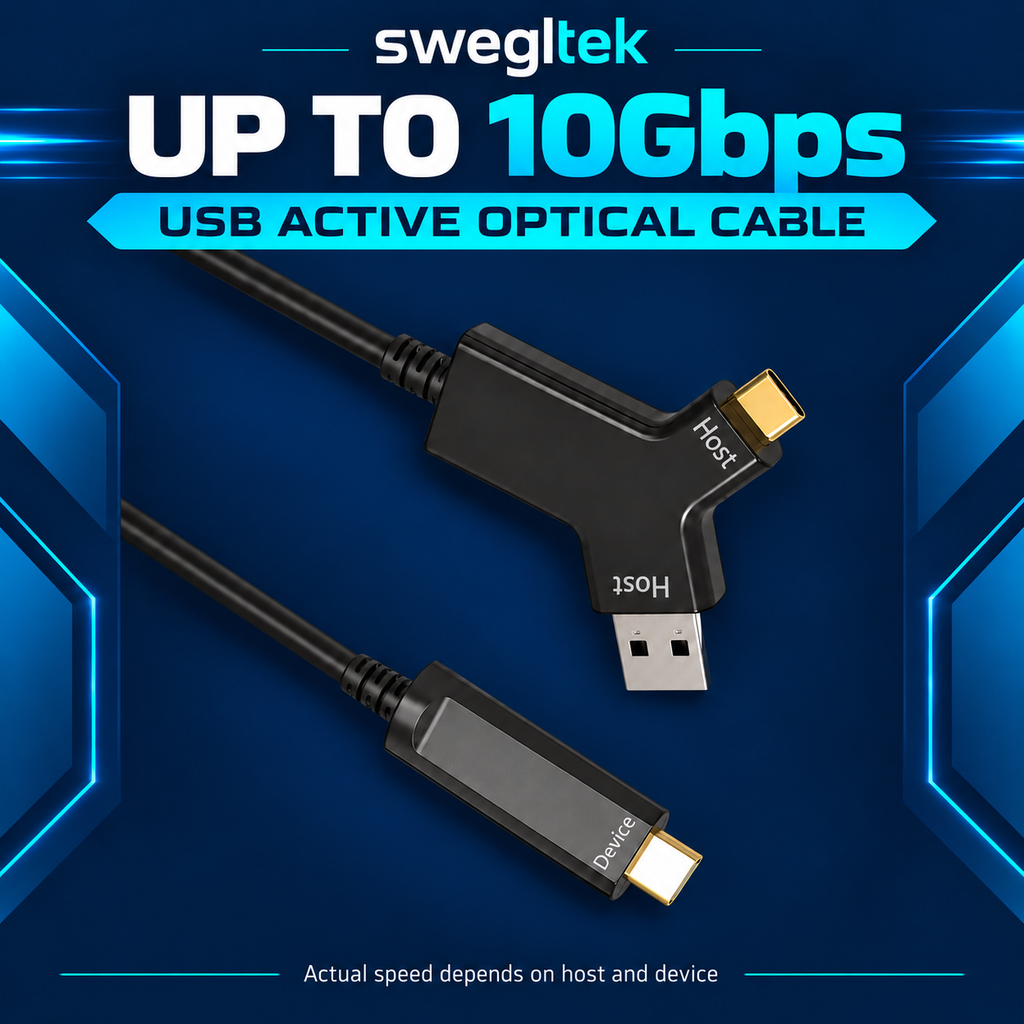

USB speed and compatibility
The specification describes interoperability with USB 2.0 and USB 3.x equipment. Maximum speed depends on the negotiated protocol, host controller and peripheral. USB 2.0 devices retain their own speed limits. Confirm the intended host and device combination, particularly when using an older USB port.

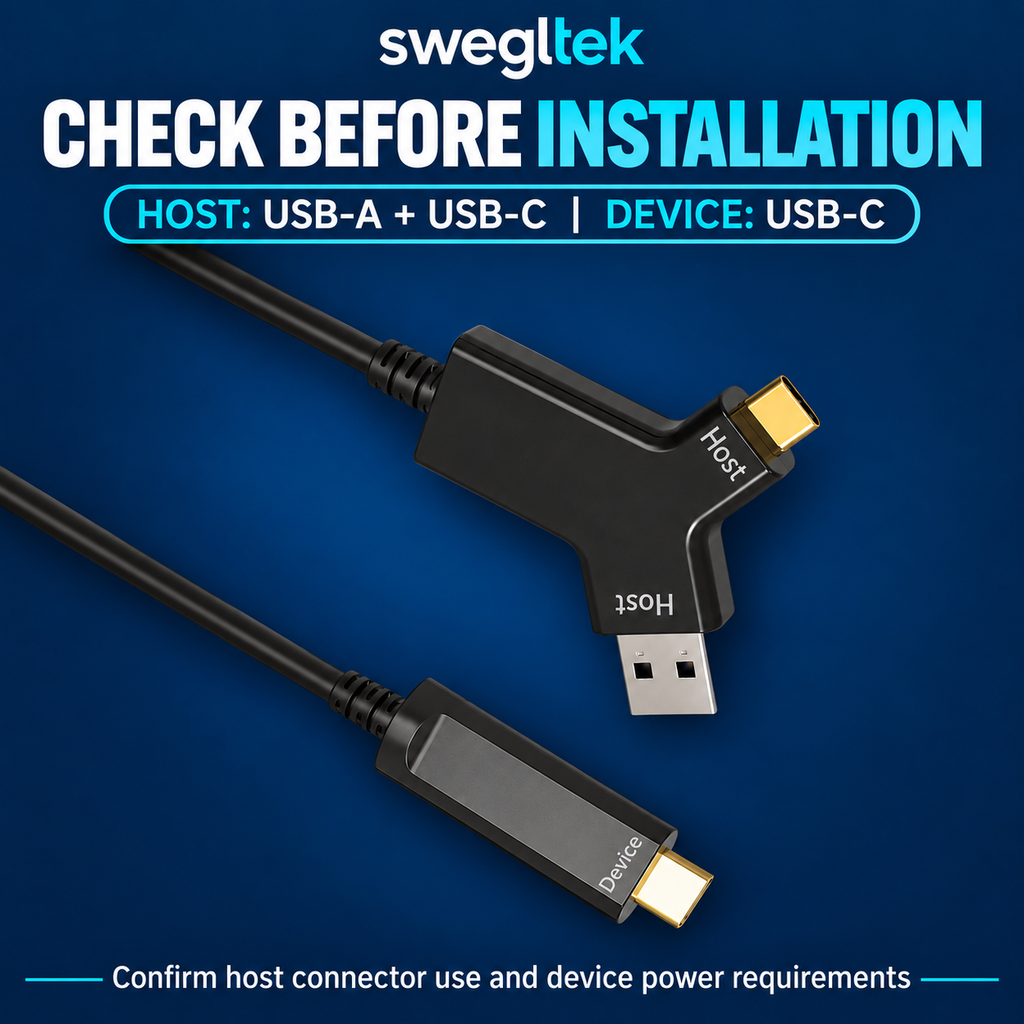

Power and installation
The specification states that no extra host-side power adapter is required and that the remote unit requires power. Confirm how remote power is provided, which accessories are needed and whether they are included before ordering. USB-C connectors alone do not establish USB Power Delivery charging or DisplayPort video capability.
Application ideas

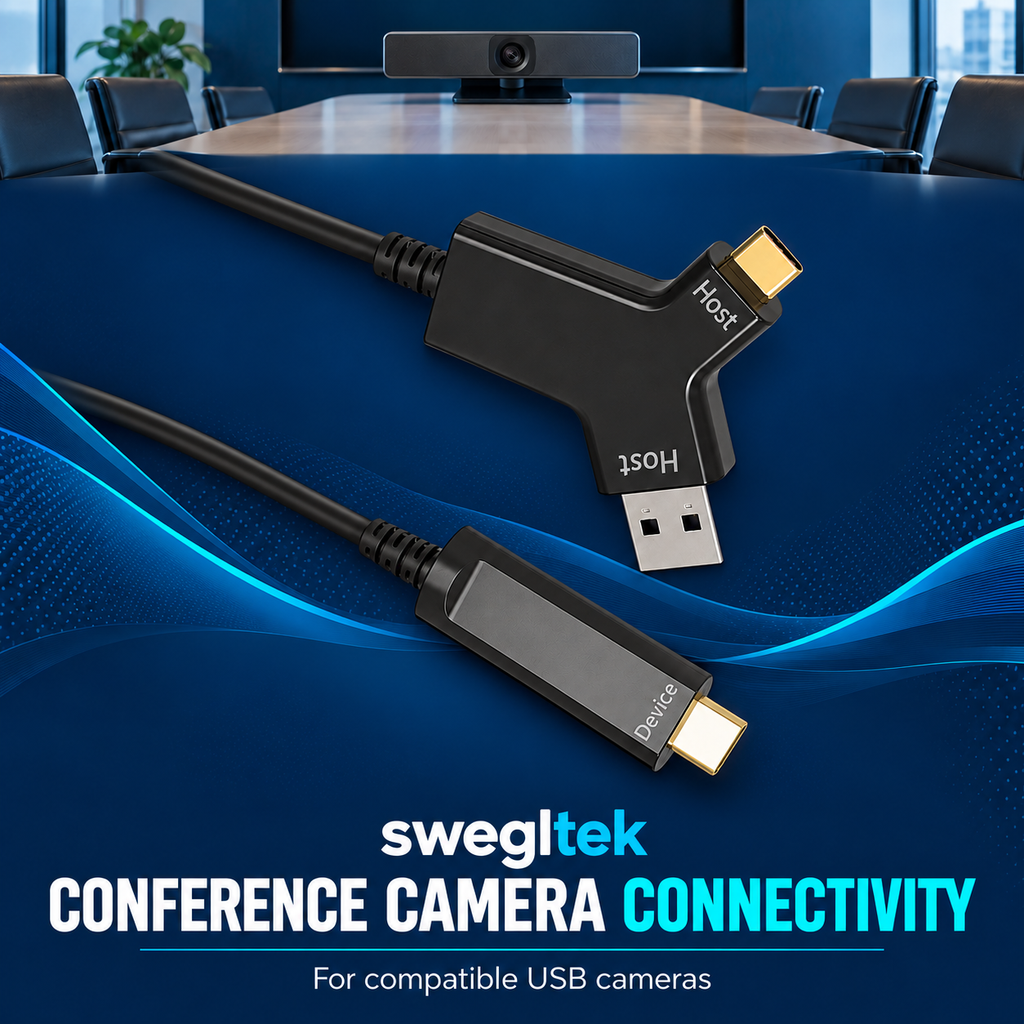

- Compatible conference cameras and USB meeting-room equipment.
- Machine vision and inspection cameras with compatible USB interfaces.
- Remote storage and other USB-C peripherals with a suitable power arrangement.
- Compatible USB touch interfaces; display video uses a separate connection.
Product Specifications
Technical specifications and product details.
| Brand | swegltek |
|---|---|
| Model | SUYC-3250 |
| Cable type | USB active optical data cable |
| Host assembly | Integrated Y-shaped USB-A male and USB-C male |
| Device connector | USB-C male |
| Maximum link rate | Up to 10Gbps |
| Maximum offered length | 50m, approximately 164ft |
| Length options | 5 / 7.5 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50m; confirm availability |
| Cable diameter | 4.5mm |
| Optical technology | 850nm VCSEL, multimode fiber |
| Protocol description | Protocol descriptionUSB 2.0 and USB 3.x interoperability per specification; confirm intended configuration |
| Operating systems | Windows, macOS and Linux; device-dependent drivers may be needed |
| Host power | No additional host adapter required per specification |
| Remote power | Required; connection and accessories to be confirmed |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 70°C |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
That operating mode is not established by the specification. Confirm the correct host connector arrangement before use; do not treat the Y assembly as a two-host switch.
No. The host, device, protocol and configuration determine the actual speed. A USB-C connector does not by itself guarantee 10Gbps capability.
USB Power Delivery charging and DisplayPort Alt Mode are not specified. This product is presented as a USB data cable.
The specification requires remote power but does not define the connector or supply arrangement. Confirm those details and included accessories for the selected setup.
Measure the complete cable route and allow service slack at each end. Available proposals range from 5m to 50m; confirm production availability and lead time for your selected length.
