swegltek SUAB-3120 USB-A to USB 3.0 Type-B Active Optical Cable | Up to 10Gbps | 5–15m
Short description
Create a longer USB connection between your computer and compatible Type-B equipment. The swegltek SUAB-3120 USB-A to USB 3.0 Type-B active optical cable supports a specified maximum data rate of 10Gbps and cable lengths up to 15m, with USB 2.0 and USB 1.1 protocol compatibility.
Key features

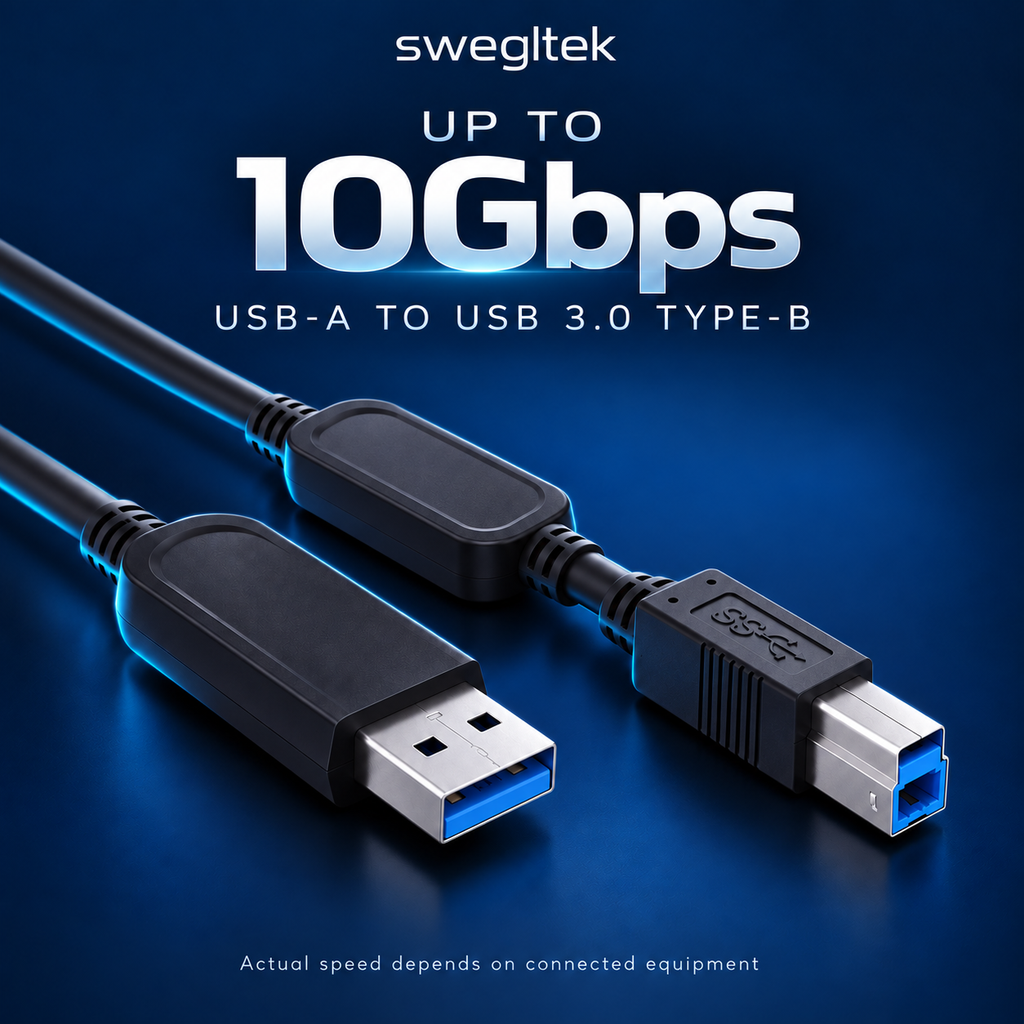

• Up to 10Gbps: the specified maximum cable data rate supports demanding USB connections. Actual speed depends on the host, device and system configuration.

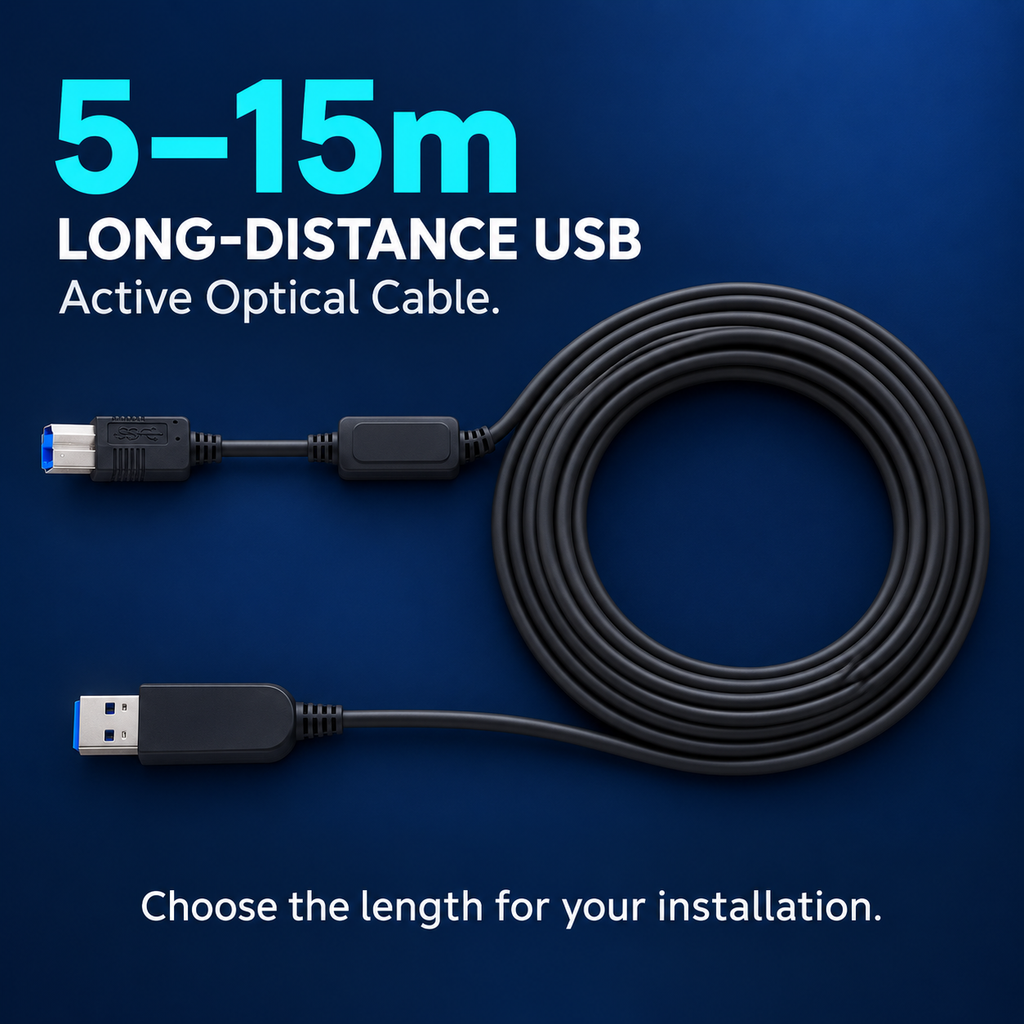

• Up to 15m reach: position compatible equipment farther from your USB-A host without redesigning the workspace around a short cable.
• USB-A to USB 3.0 Type-B: a Standard-A male host connector and full-size USB 3.0 Type-B male device connector.
• Active optical construction: optical transmission is integrated into the cable assembly, with an inline module and short tail near the Type-B end.
• USB 2.0 and USB 1.1 protocol support: check the physical socket as well as the device's USB protocol before purchase.

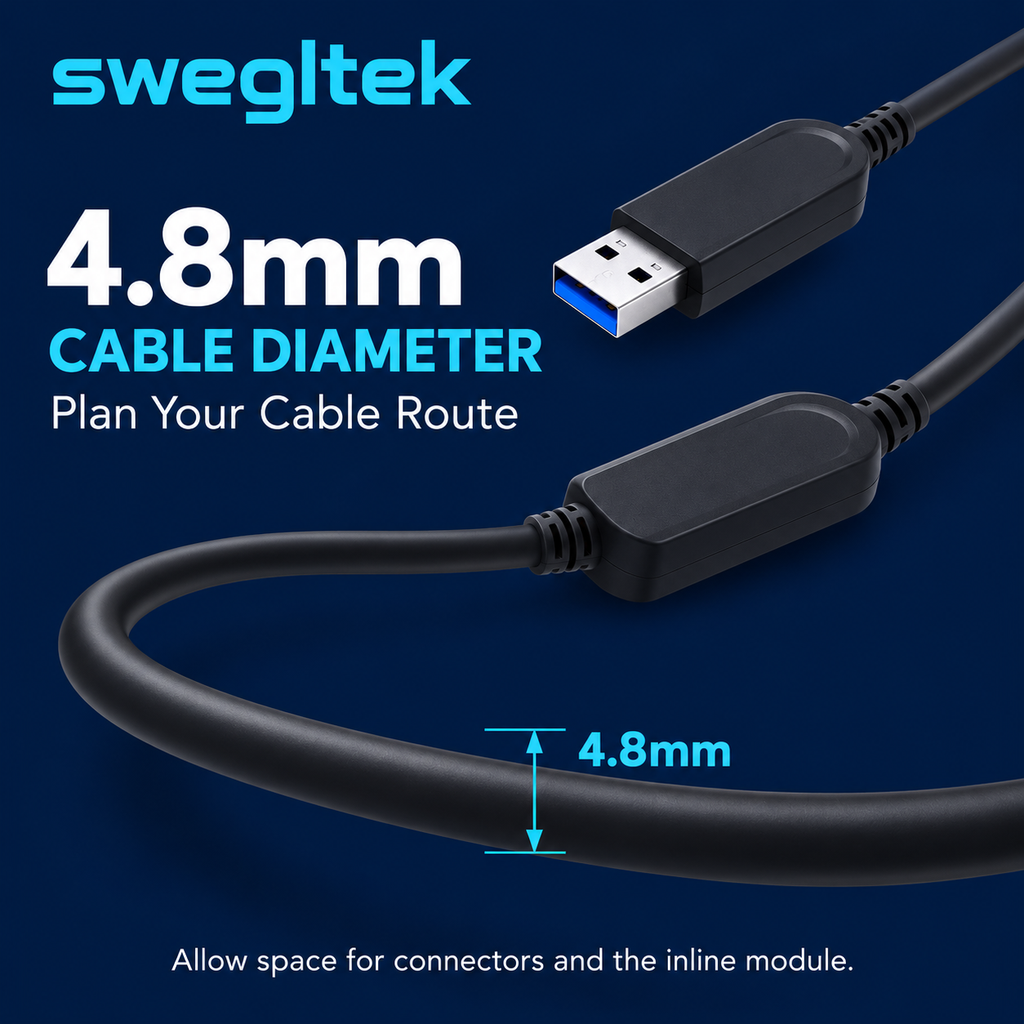

• 4.8mm cable diameter: plan a suitable cable route with clearance for the plugs and inline module.
• Windows and Mac support: device drivers and application requirements remain specific to your equipment.
Extend your USB workspace
This long-distance USB active optical cable gives you more flexibility when arranging a control station, instrument bench or remote USB workstation. Use it with compatible equipment that provides a matching USB 3.0 Type-B receptacle, and select the cable length that suits your installation.
Match the connection to your equipment

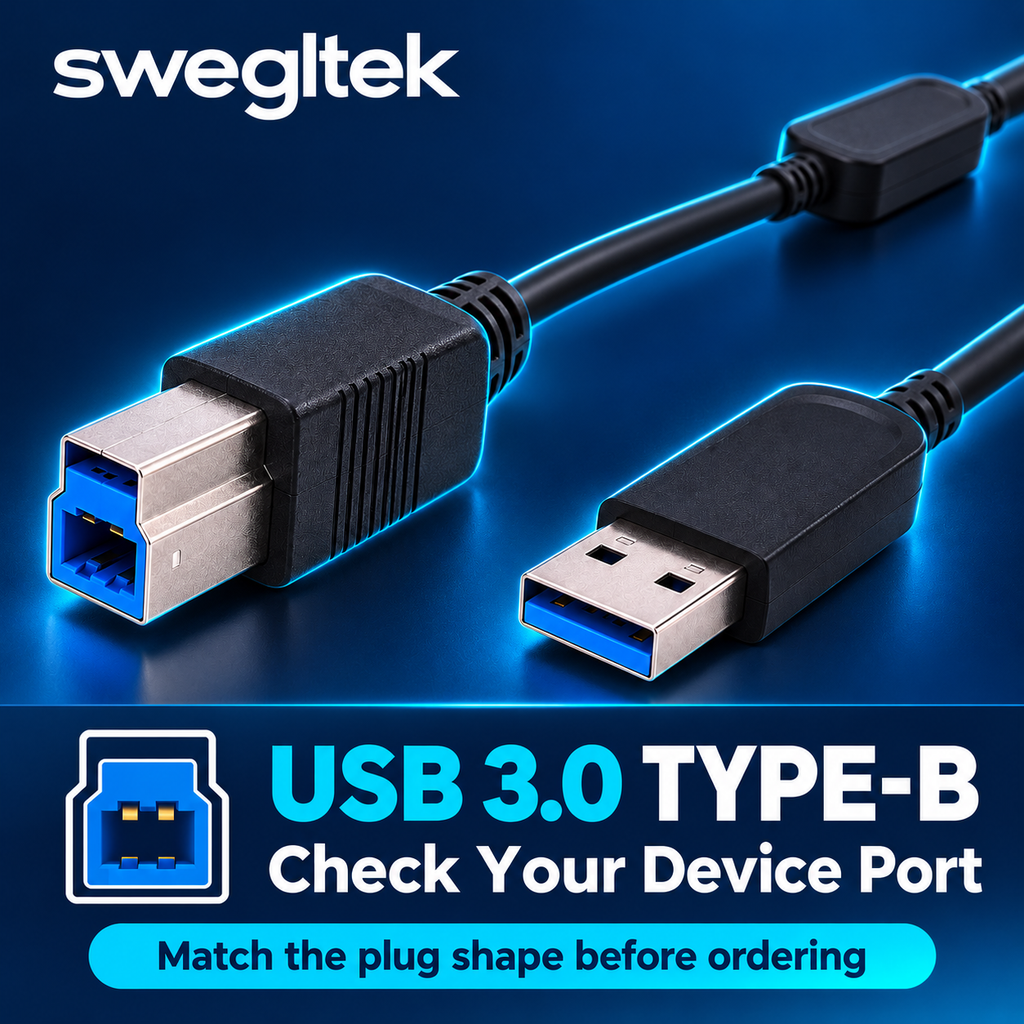

Connect USB-A to the host and Type-B to the peripheral. The Type-B end uses the tall, stepped USB 3.0 plug shown in the product images. Confirm the socket shape before ordering; USB protocol backward compatibility does not make differently shaped connectors interchangeable.
Plan the route before installation
Allow room for the inline module, short device-side tail and strain reliefs. Route the cable with gentle bends and avoid pulling on the connectors. Check device power requirements and test the complete host, cable and peripheral combination before fixing the cable in place.
Application ideas
- Industrial control stations using compatible USB Type-B equipment.
- Test and measurement workstations with matching USB 3.0 Type-B instruments.
- Remote peripheral installations where the host computer needs a separate location.
- Printing, scanning, storage or audio setups only when the equipment's socket, power and software requirements match this cable.
Specifications
| Item | Specification |
|---|---|
| Brand and model | swegltek SUAB-3120 |
| Cable type | USB active optical cable |
| Host connector | USB Standard-A male |
| Device connector | Full-size USB 3.0 Type-B male |
| Device-side assembly | Inline module followed by a short cable tail and Type-B plug |
| Maximum specified data rate | 10.0Gbps; actual performance depends on connected equipment |
| Maximum length | 15m |
| Protocol compatibility | USB 3.0, USB 2.0 and USB 1.1 as stated in the specification |
| Cable diameter | 4.8mm |
| Optical technology | 850nm VCSEL, multimode optical fiber |
| Operating temperature | 0°C to 50°C |
| Storage temperature | −20°C to 70°C |
| Operating systems | Windows and Mac; peripheral drivers may be required |
| Peripheral power | Confirm requirements before ordering; remote power capacity is not specified |
FAQ
Is this the same as a Micro-B cable?
No. SUAB-3120 has a full-size USB 3.0 Type-B plug. Compare your device socket with the product images before buying.
Can I plug it into any printer or scanner?
Only if the device socket physically matches and the equipment is compatible. A USB 2.0 Type-B socket must not be assumed to accept this USB 3.0 Type-B plug.
Does every system reach 10Gbps?
No. 10Gbps is the maximum stated in the supplied product specification. The host, peripheral and configuration determine actual throughput.
Is it compatible with USB 2.0 and USB 1.1?
The specification states protocol compatibility with both. Physical connector fit and device compatibility still need to be checked.
Can it power my peripheral?
The specification does not establish a guaranteed remote-device power budget. Confirm the device's power arrangement before use and retain its required power supply.
Which end connects to the computer?
Connect the USB-A end to the host computer and the USB 3.0 Type-B end to the compatible peripheral.
What lengths are offered?
The proposed Shopify options are 5m, 7.5m, 10m and 15m. The 7.5m option is a custom-length request, subject to production confirmation. Other listed lengths can be quoted separately.
