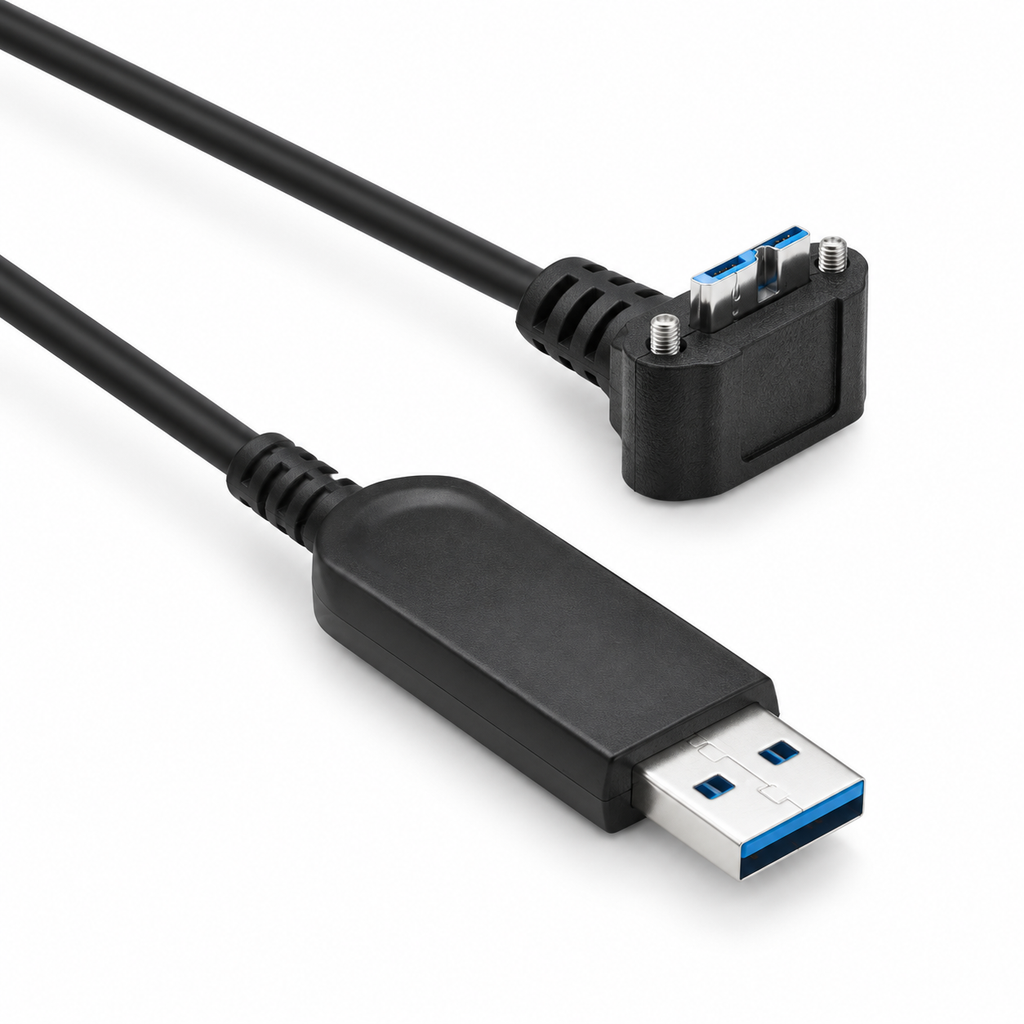

swegltek SSMB-3120 USB-A to 90° Micro-B Active Optical Cable | Up to 10Gbps | 5–15m
Short description
Extend the connection between your computer and compatible USB Micro-B equipment with the swegltek SSMB-3120 active optical cable. With a screw-locking 90° Micro-B device connector, up to 10Gbps data transfer and lengths up to 15m, it supports flexible positioning for industrial cameras and inspection workstations.
Key features

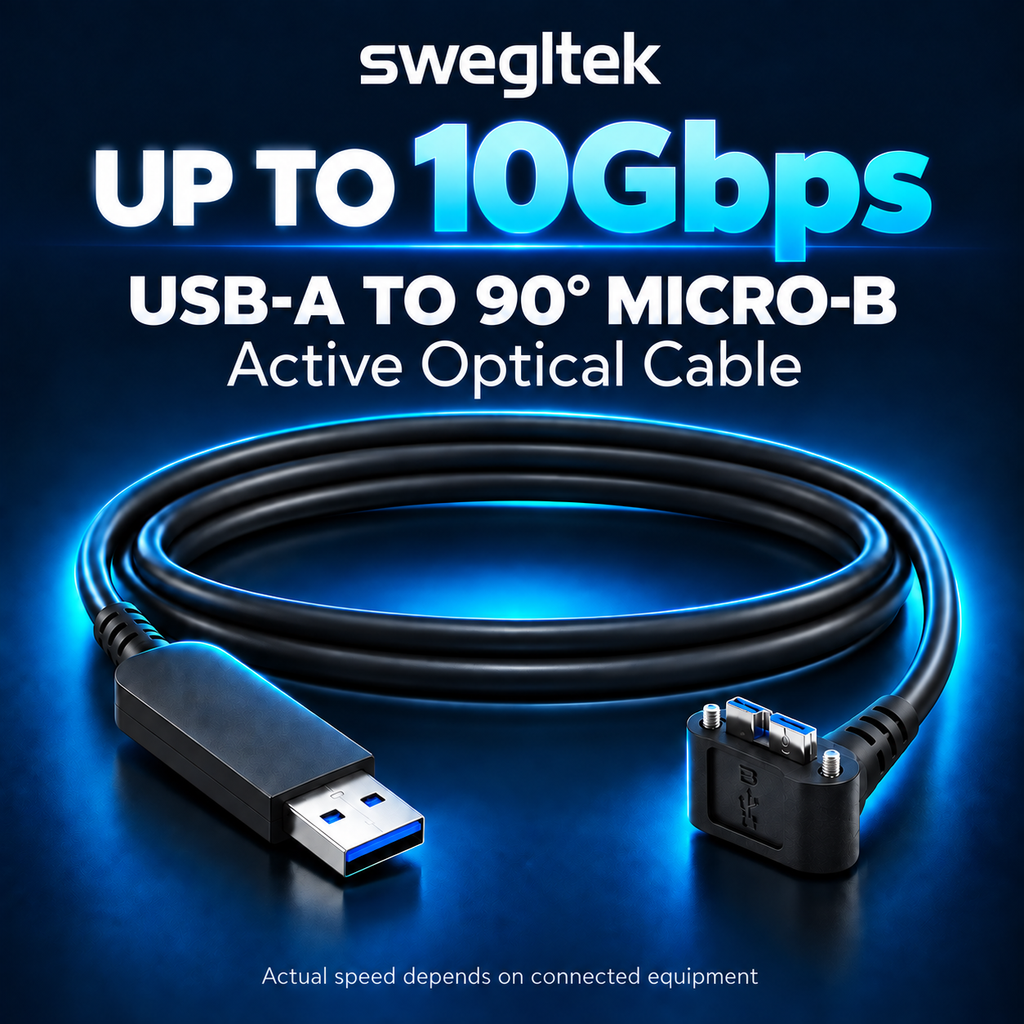

- Up to 10Gbps data transfer: designed for high-speed USB data links. Actual speed depends on the host, device and system configuration.

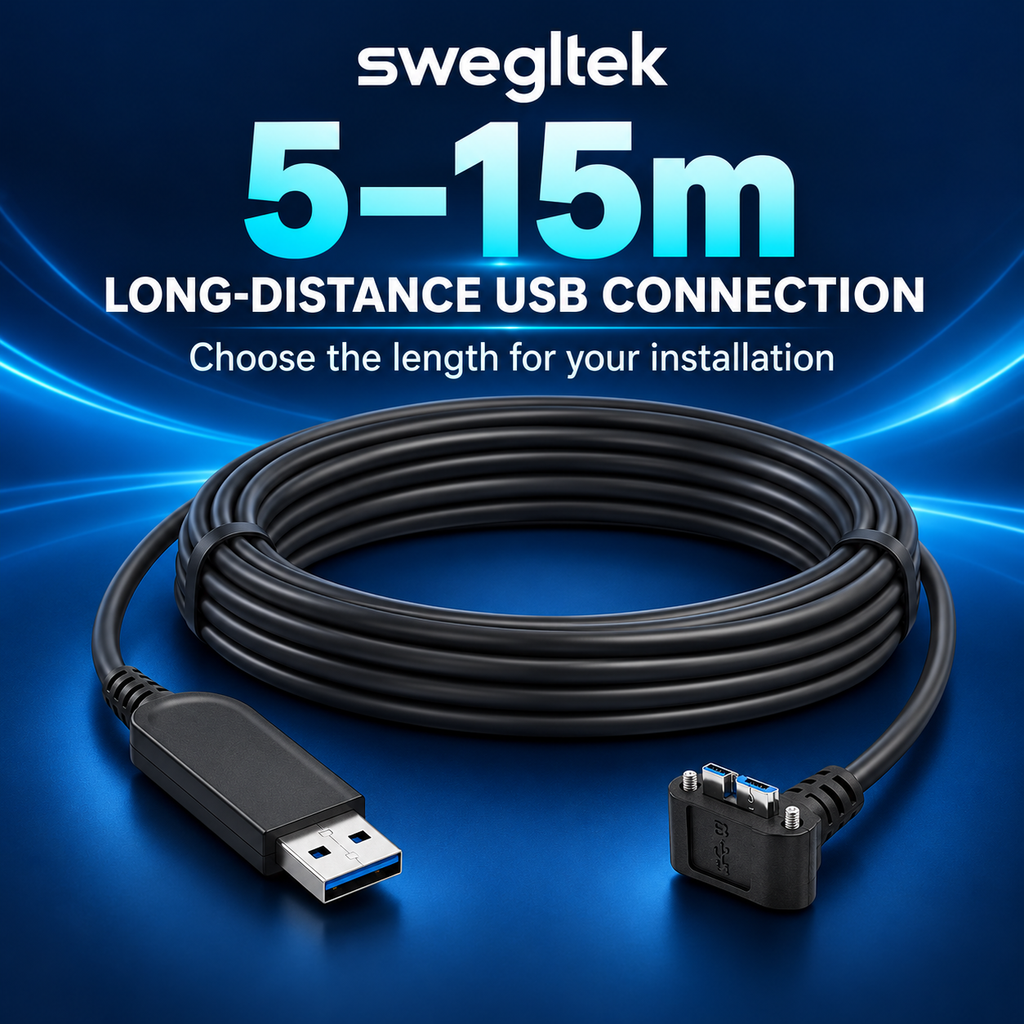

- Long-distance USB connectivity: choose a cable length from 5m to 15m to suit your installation.
- Right-angle device connection: the 90° USB 3.0 Micro-B plug routes the cable sideways at the device. Check its orientation against your enclosure before ordering.
- Screw-locking Micro-B connector: secure the connection to equipment with matching threaded mounting holes.
- USB 2.0 and USB 1.1 protocol support: backward compatibility is supported; physical connector fit must still be checked.

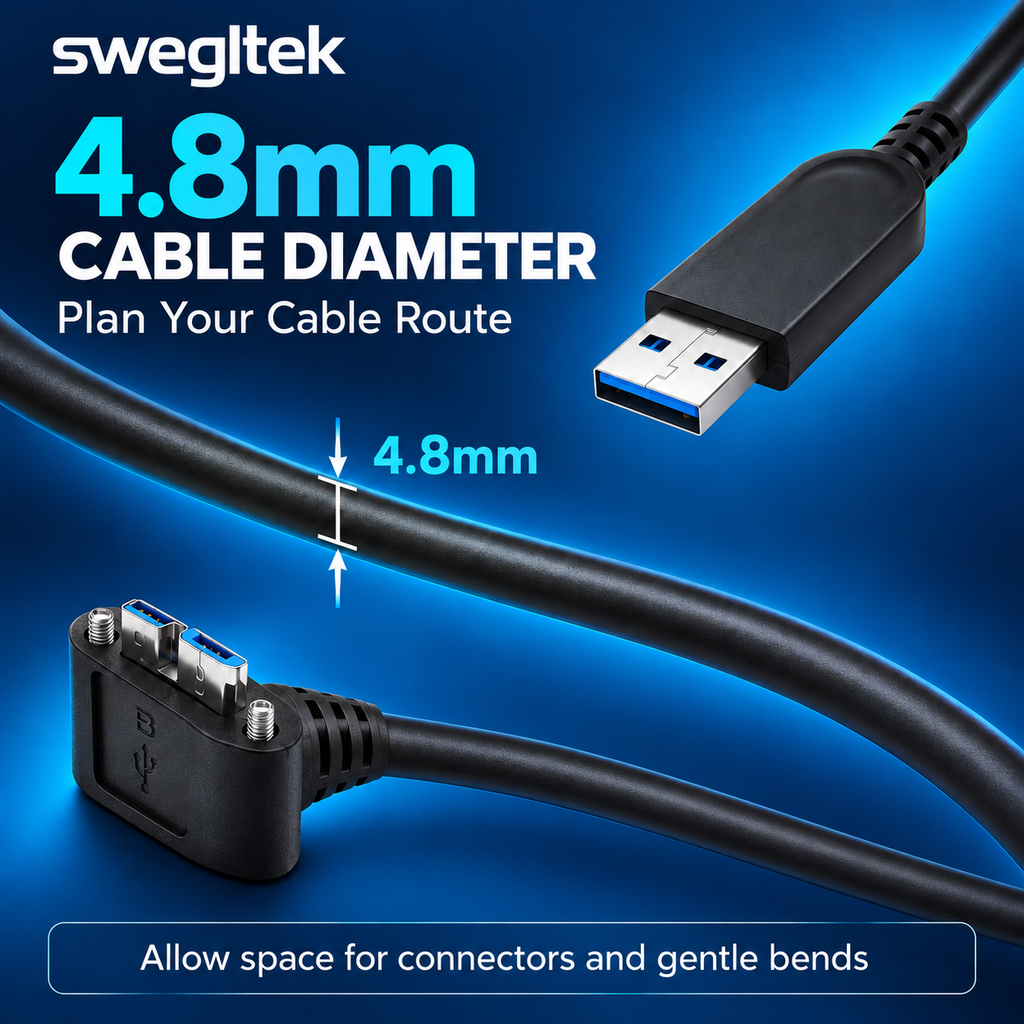

- 4.8mm cable diameter: plan the cable path and allow adequate space around both connectors.
7.5m is a custom length, subject to production and lead-time confirmation. Other non-standard lengths are available by enquiry.
$109.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Category:
USB AOC
Tags:
Product Details
Everything you need to know about this product.
More freedom for your inspection setup
Position a compatible USB industrial camera near the inspection area while locating the host computer where it is accessible. This USB-A to Micro-B active optical cable is suitable for evaluating long-distance connections in machine vision, industrial control and remote inspection systems.
A right-angle connection for device-side routing

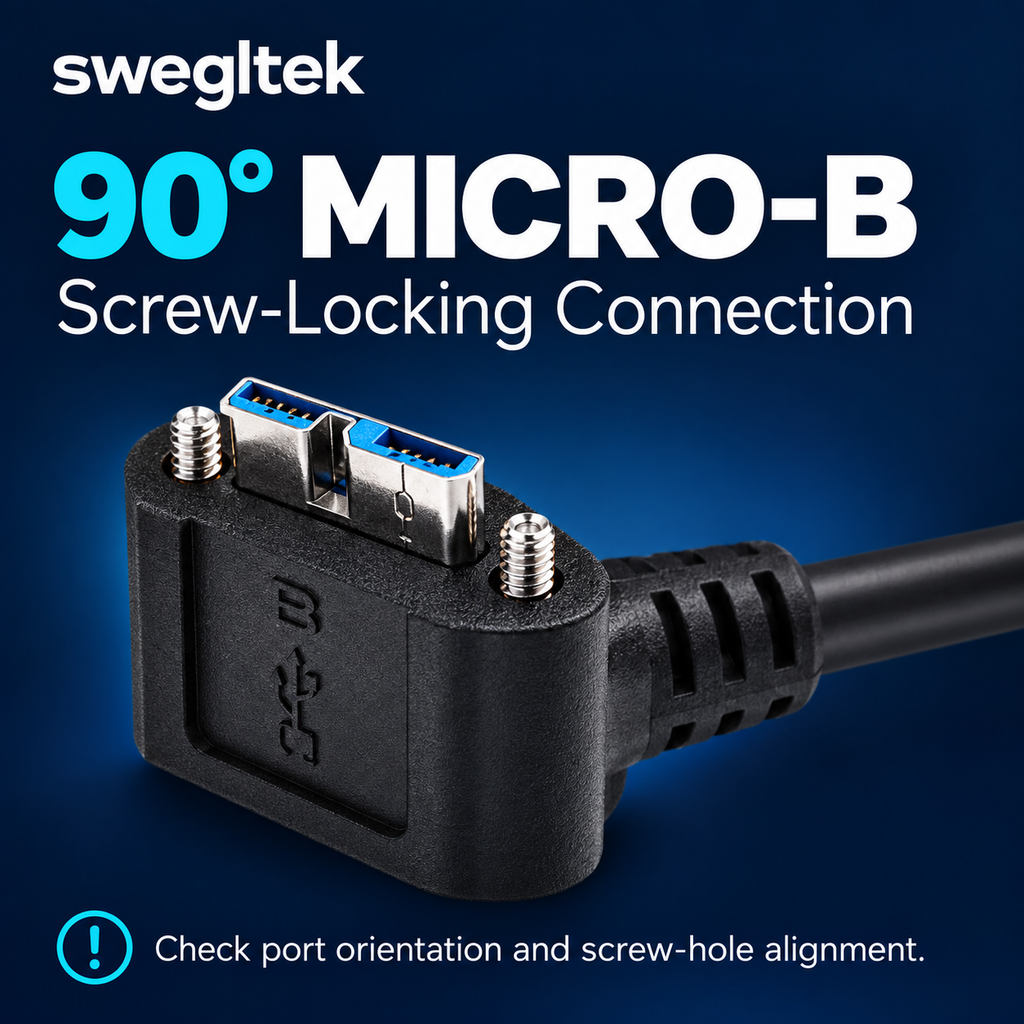

The compact 90° Micro-B connector changes the cable exit direction at the equipment. Its two locking screws are intended for compatible mounting holes. Confirm the port shape, screw alignment and available clearance before selecting this right-angle USB Micro-B cable.
Built for a matched system

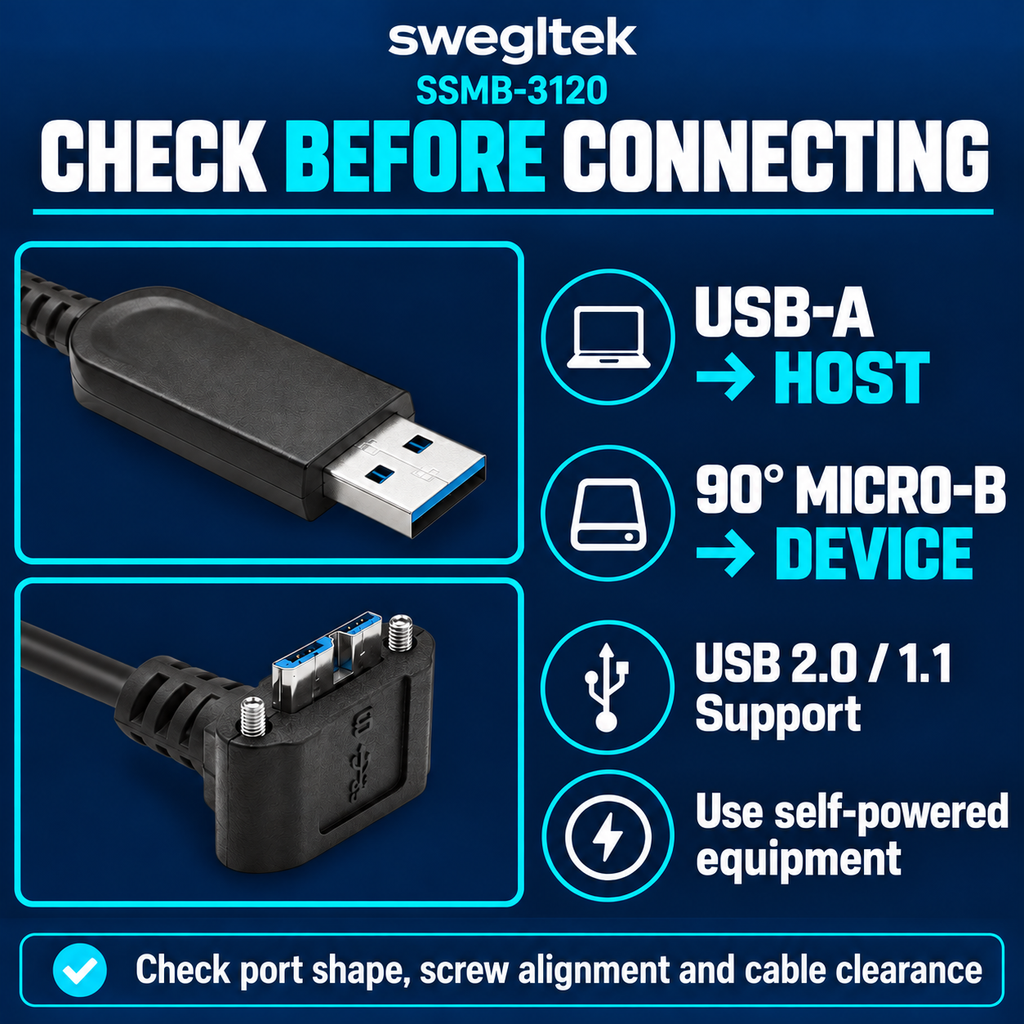

Connect USB-A to the host and Micro-B to the device. Use self-powered host and remote equipment as specified in the product documentation. Do not assume the cable can power every bus-powered camera or peripheral. Windows, macOS and Linux support is specified; device drivers and application software remain equipment-dependent.
Product Specifications
Technical specifications and product details.
| Brand | swegltek |
|---|---|
| Model | SSMB-3120 |
| Cable type | Hybrid active optical USB cable |
| Host connector | USB Standard-A male |
| Device connector | USB 3.0 Micro-B male, 90°, with locking screws |
| Maximum data rate | Up to 10Gbps, as stated in the model specification |
| Protocol | USB 3.1 Gen2 as stated in the specification; USB 2.0/1.1 backward compatibility |
| Length range | 5-15m |
| Cable diameter | 4.8mm |
| Product construction | No separate inline module, as confirmed for this version |
| Power requirement | Self-powered host and remote equipment |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 70°C |
| Humidity | 5-85%, non-condensing |
| Operating systems | Windows, macOS and Linux; device-dependent drivers may be needed |
| Available lengths | 5m, 7.5m (Custom — confirm lead time), 10m, 15m |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
No. The device end is a 90° USB 3.0 Micro-B plug with locking screws. Check the product photos against your equipment and mounting space.
No. 10Gbps is the cable's specified maximum data rate. Your host, device and configuration determine the actual connection speed.
The cable supports USB 2.0 and USB 1.1 protocols. The device socket must still match the physical plug; protocol compatibility does not make different connector shapes interchangeable.
The specification requires self-powered host and remote devices. Confirm your camera's power arrangement before purchase; do not rely on this cable as its sole power source without confirmation.
Only when the camera has matching threaded mounting holes and sufficient clearance. Verify the connector direction and mounting arrangement first.
This SSMB-3120 offer supports lengths up to 15m. Contact us for a custom length within that range.
