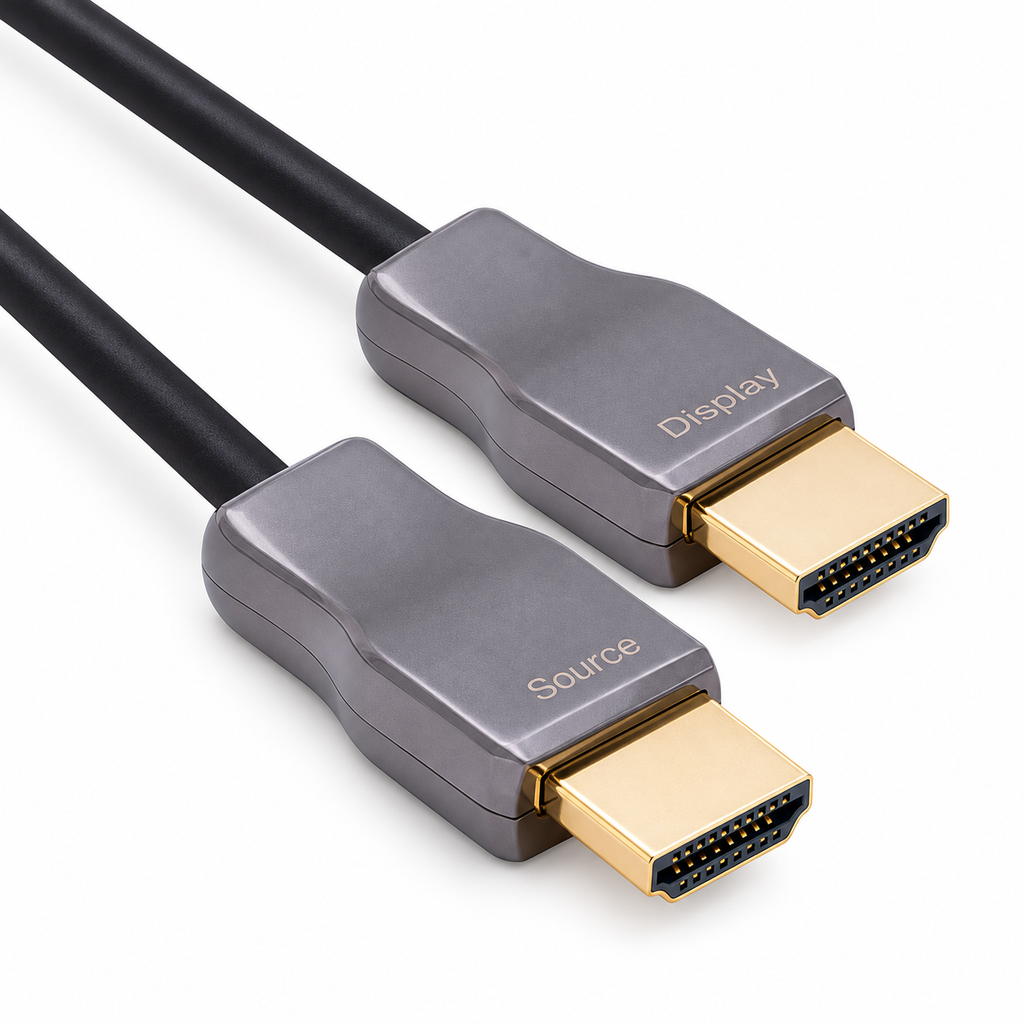

swegltek Slim Armored HDMI Active Optical Cable | 48Gbps 8K60 & 4K120 | 5–30m
Short description
Bring high-bandwidth video to installations where cable space matters. The swegltek armored HDMI active optical cable combines a slim 3.8mm profile, stainless-steel reinforcement and support for up to 48Gbps bandwidth. Designed for long-distance connections in home theaters, meeting rooms and professional AV installations.
Available in 5m, 7.5m, 10m, 15m, 20m, 25m and 30m. Prices range from $104.00 to $194.00 USD.
Key features
48Gbps for High Resolution Video
Support up to 8K at 60Hz and 4K at 120Hz with compatible source and display equipment.
Slim 3.8mm Cable Profile
A compact cable body helps manage space in cable routes, equipment racks and behind displays.
Stainless Steel Armored Construction
An internal spiral stainless-steel reinforcement layer adds mechanical protection around the cable’s optical and electrical components.
Active Optical Technology for Longer Runs
Connect AV equipment across larger rooms and installation routes with a long-distance HDMI fiber optic cable. Choose lengths from 5m to 30m to suit your installation.
Compact Connectors with Clear Direction Labels
Connect the SOURCE end to your source equipment and the DISPLAY end to your screen or projector.
Built for Planned AV Installations
Suitable for home theater systems, projector installations, meeting rooms and digital signage setups requiring a longer HDMI connection. Check connector clearance, cable routing and equipment compatibility before installation.
Installation notes
- Follow the SOURCE and DISPLAY labels when connecting the cable.
- Avoid sharp bends and follow the specified minimum bend radius.
- Test the complete system at the intended video settings before concealing the cable.
- Supported video modes depend on the connected equipment and system configuration.
FAQ
Which end connects to the source?
Connect SOURCE to your media player, computer or other source equipment. Connect DISPLAY to your screen or projector.
What lengths are available?
Choose 5m, 7.5m, 10m, 15m, 20m, 25m or 30m.
Will every setup support 8K60 or 4K120?
The source, display and other equipment in the signal path must support your chosen video mode. Test the complete system before permanent installation.
What should I check before routing the cable?
Check the connector clearance, cable route and minimum bend radius. Leave sufficient service slack and avoid sharp bends.
Specifications
| Specification | Value |
|---|---|
| Connector | HDMI male to HDMI male |
| Technology | Active optical cable |
| Bandwidth | Up to 48Gbps |
| Video | Up to 8K60 and 4K120 |
| Cable diameter | 3.8mm |
| Reinforcement | Spiral stainless steel |
| Direction | SOURCE to DISPLAY |
| Available lengths | 5m / 7.5m / 10m / 15m / 20m / 25m / 30m |
$104.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Category:
HDMI AOC
Tags:
Product Details
Everything you need to know about this product.
Extend USB-C Video to a DisplayPort Display
The swegltek SCTD-1200 USB-C to DisplayPort active optical cable connects a compatible USB-C video
source to a DisplayPort monitor, projector or professional display. Its integrated cable design provides a
direct display connection for equipment layouts that need more distance between the source and screen.
4K Video at 60Hz
Support for video up to 4K at 60Hz makes this USB-C to DP cable suitable for clear presentations, digital
signage and professional visual content. The supported resolution and refresh rate depend on the source,
display and complete system configuration.
DisplayPort 1.2 Optical Transmission
With DisplayPort 1.2 support and link bandwidth up to 21.6Gbps, this active optical cable uses fiber for
high-speed signal transmission along the cable run. The bandwidth rating describes the DisplayPort link;
this product is intended for display connectivity.
Length Options from 5m to 50m
Choose a 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m or 50m USB-C to DisplayPort cable to suit
the installation route. Allow for cable routing, connector access and equipment position when selecting
your length. Contact swegltek for project quantities or other length requirements within the 5–50m range.
Designed for Professional Display Installations
Conference rooms: connect compatible USB-C presentation sources to DisplayPort displays.
Digital signage: place compatible media source equipment farther from the screen.
Workstations: position the computer away from the display area.
AV installations: plan longer point-to-point video and audio cable routes to compatible DP equipment.
Check Your USB-C Video Output
Connect the USB-C end to a source that supports DisplayPort Alt Mode and the DisplayPort end to the
display input. A USB-C connector alone does not guarantee video output. Confirm source and display
compatibility, installation direction and power requirements before ordering.
Product Specifications
Technical specifications and product details.
| Model | SCTD-1200 |
|---|---|
| SCTD-1200Product type | USB-C to DisplayPort Active Optical Cable |
| Connectors | USB-C Male to DisplayPort Male |
| DisplayPort standard | DP 1.2 |
| Link bandwidth | Up to 21.6Gbps |
| Video | Up to 4K at 60Hz |
| Length range | 5–50m |
| 5–50mSignal source | USB-C with DisplayPort Alt Mode |
| Destination | Compatible DisplayPort display input |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
No. Its plug projects at 90° to the housing and cable axis, as shown.
Check the device interface, port recess, nearby connectors and required cable exit direction.
This listing describes USB data connectivity. USB-C video output and high-wattage laptop charging are not specified.
One cable in the selected length. Devices shown are for illustration.
Standard options cover 5m to 50m. Contact swegltek with your installation route and required length for other project options.
