swegltek Right-Angle USB-C Active Optical Data Cable | Up to 10Gbps | 5–50m
Short description
Connect a compatible USB-C host and device over longer distances with the swegltek SCRA-3100 active optical data cable. A straight HOST connector and 90° DEVICE connector provide a different cable exit direction at the peripheral. Choose 5–50m lengths, with data signaling up to 10Gbps.
Key features

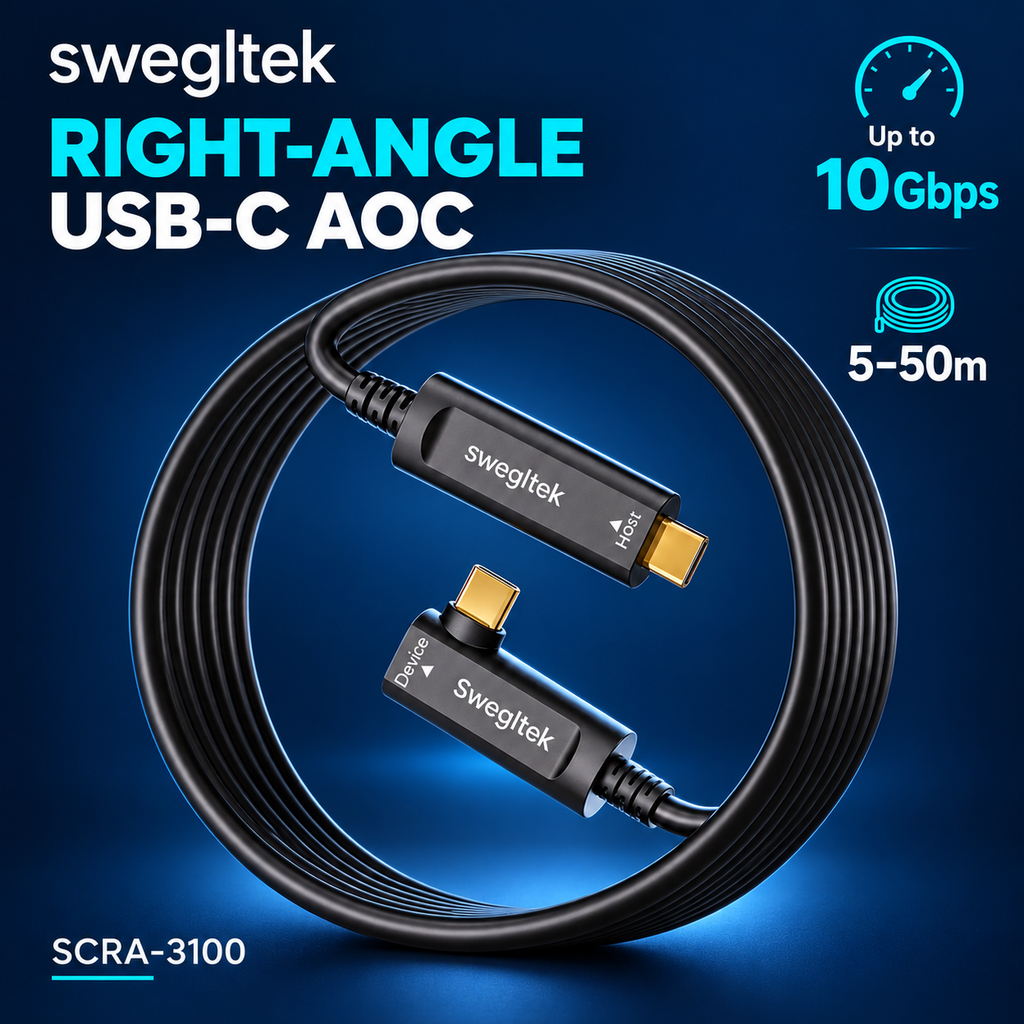

- Up to 10Gbps USB data signaling with compatible host and device equipment.
- 90° device-side USB-C connector: plan cable routing around the device's port position.

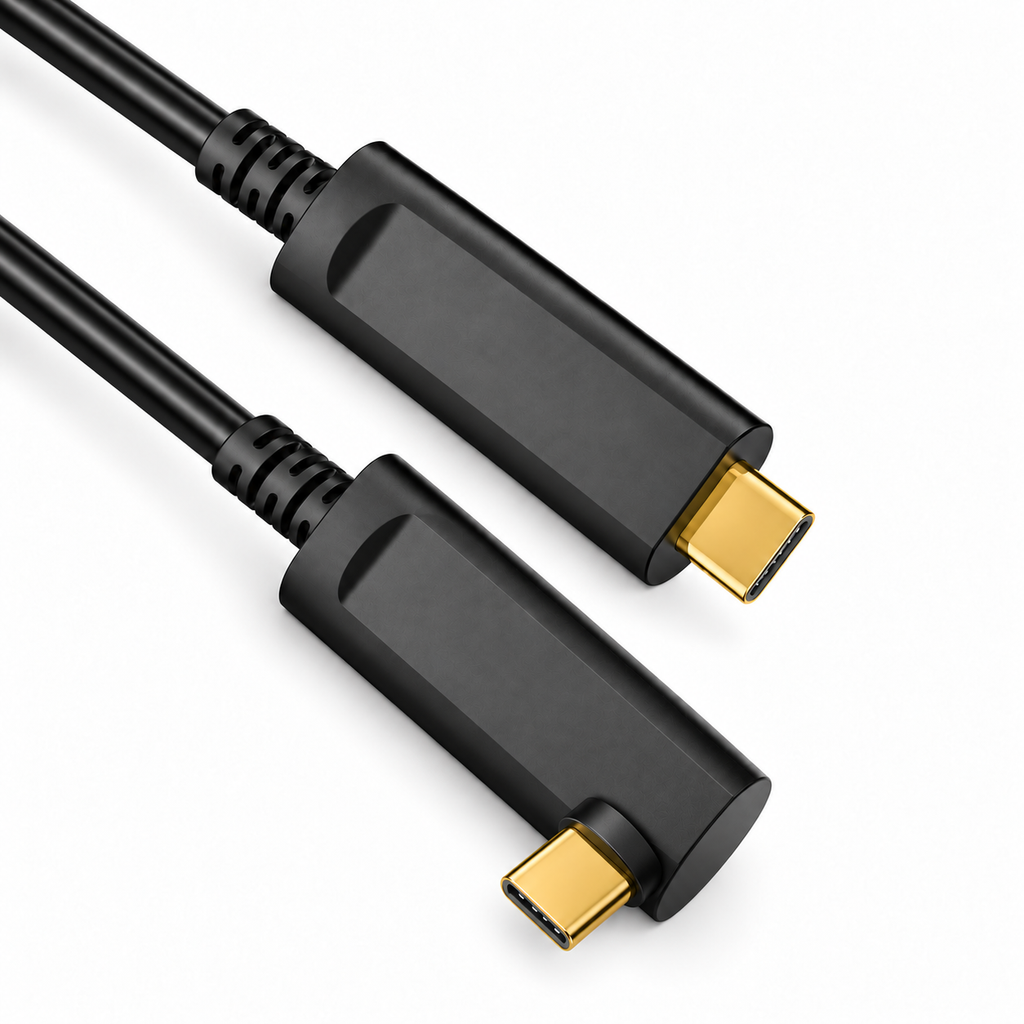

- Straight USB-C HOST connector and right-angle USB-C DEVICE connector, with defined installation direction.
- Active optical link using VCSEL transmission and optical reception.

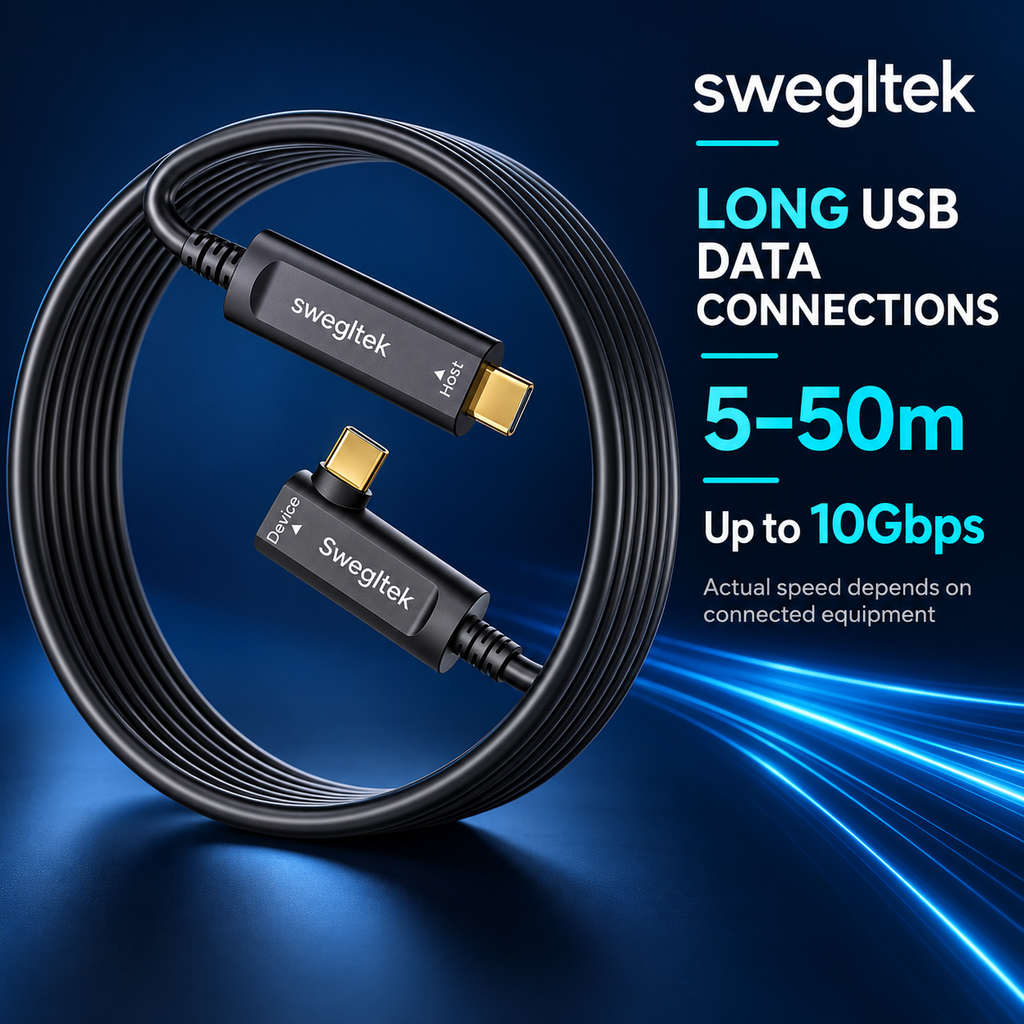

- 5–50m length options for remote equipment placement.
- Plug-and-play cable operation; no external power supply required for the cable according to its specification.
Installation
- Confirm the host and peripheral support the required USB data mode.
- Check that the 90° plug's orientation and housing fit the device's port area.

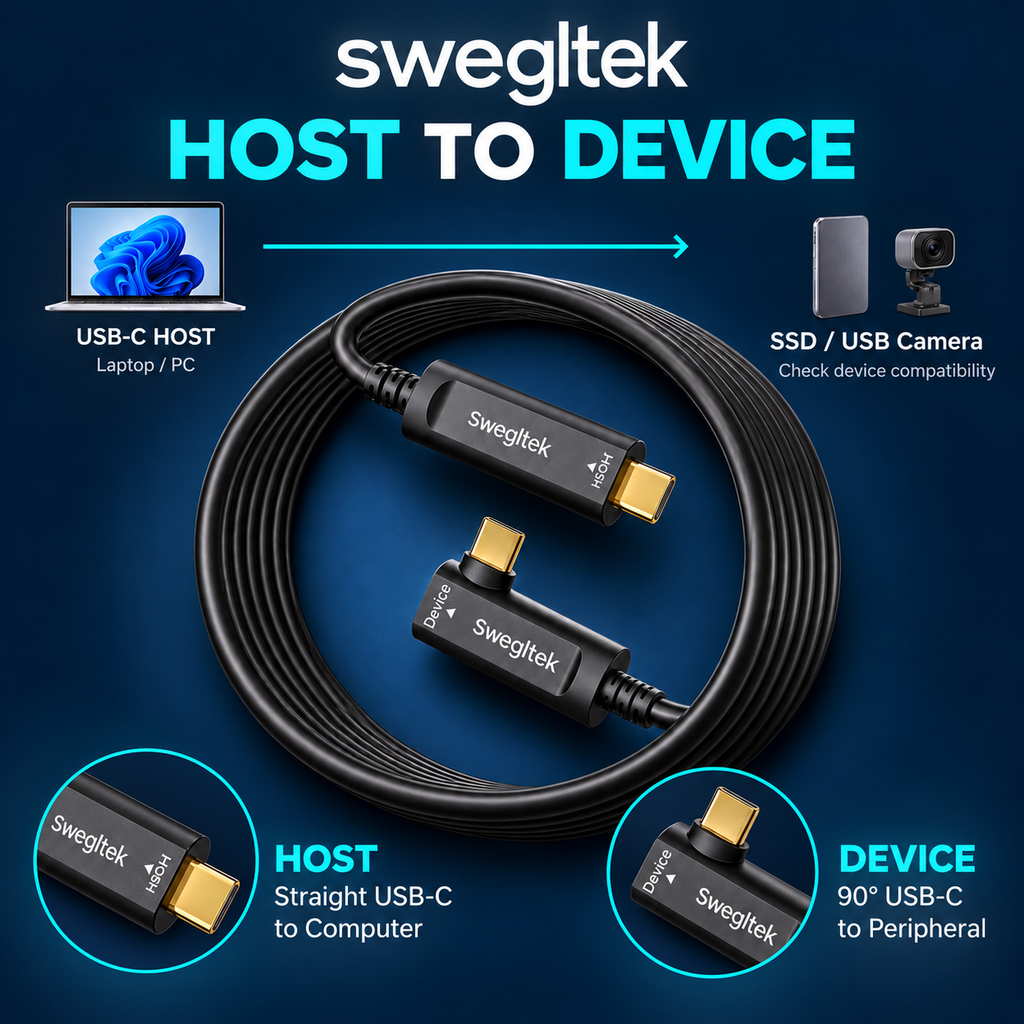

- Connect the straight end to HOST and the 90° end to DEVICE.
- Route the cable gently and secure it without pulling on the connector.
- Test device detection and data transfer before final installation.
$109.00
In StockFree Shipping Over $49
30-Day Return
2-Year Warranty
24/7 Support
Category:
USB AOC
Tags:
Product Details
Everything you need to know about this product.

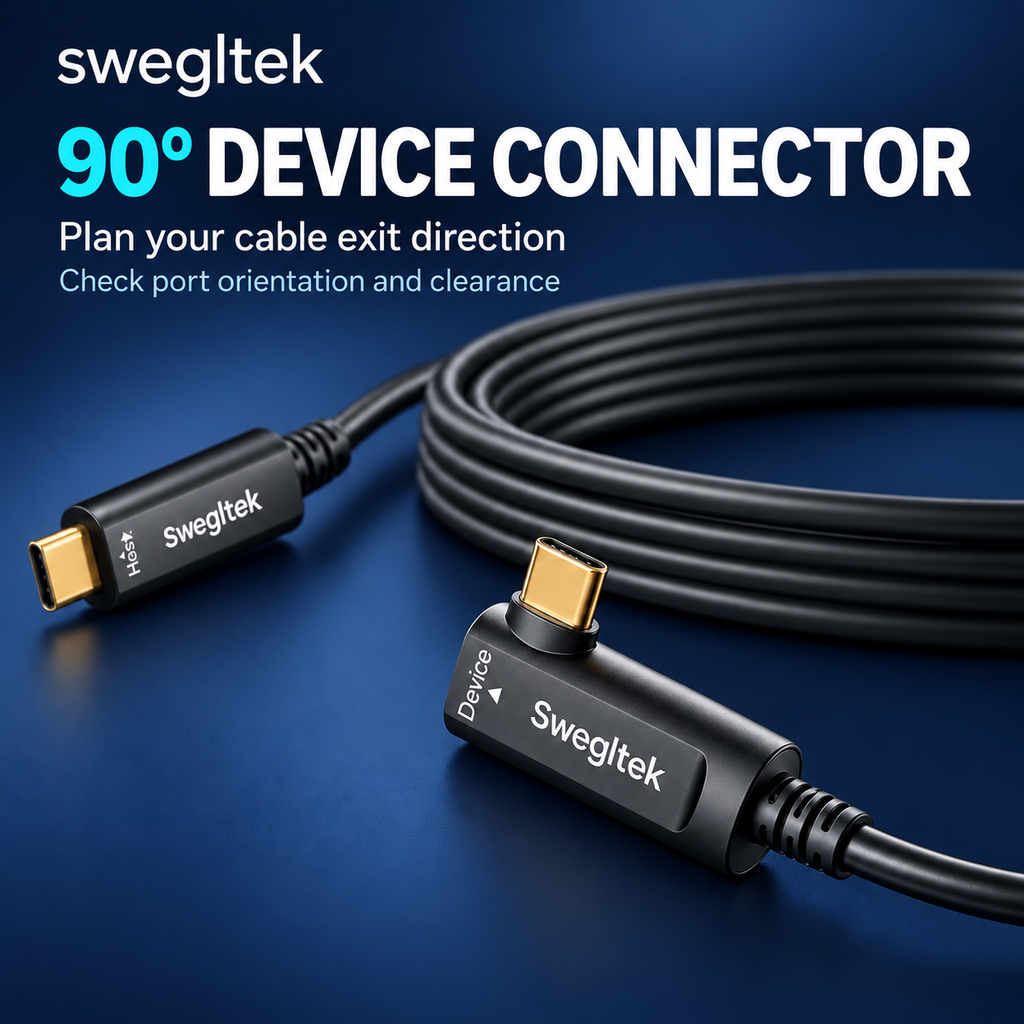

A right-angle connection at the device
The SCRA-3100 uses a side-exiting USB-C plug at the DEVICE end. This changes the way the cable leaves the peripheral, which can help organize a compatible equipment setup. Check the actual port orientation, adjacent connections and housing clearance before ordering.
Longer USB data connections
The active optical cable links compatible USB-C host and device equipment over lengths from 5m to 50m. Data signaling is specified up to 10Gbps; actual performance depends on the host, device and application.
Plan for your peripheral

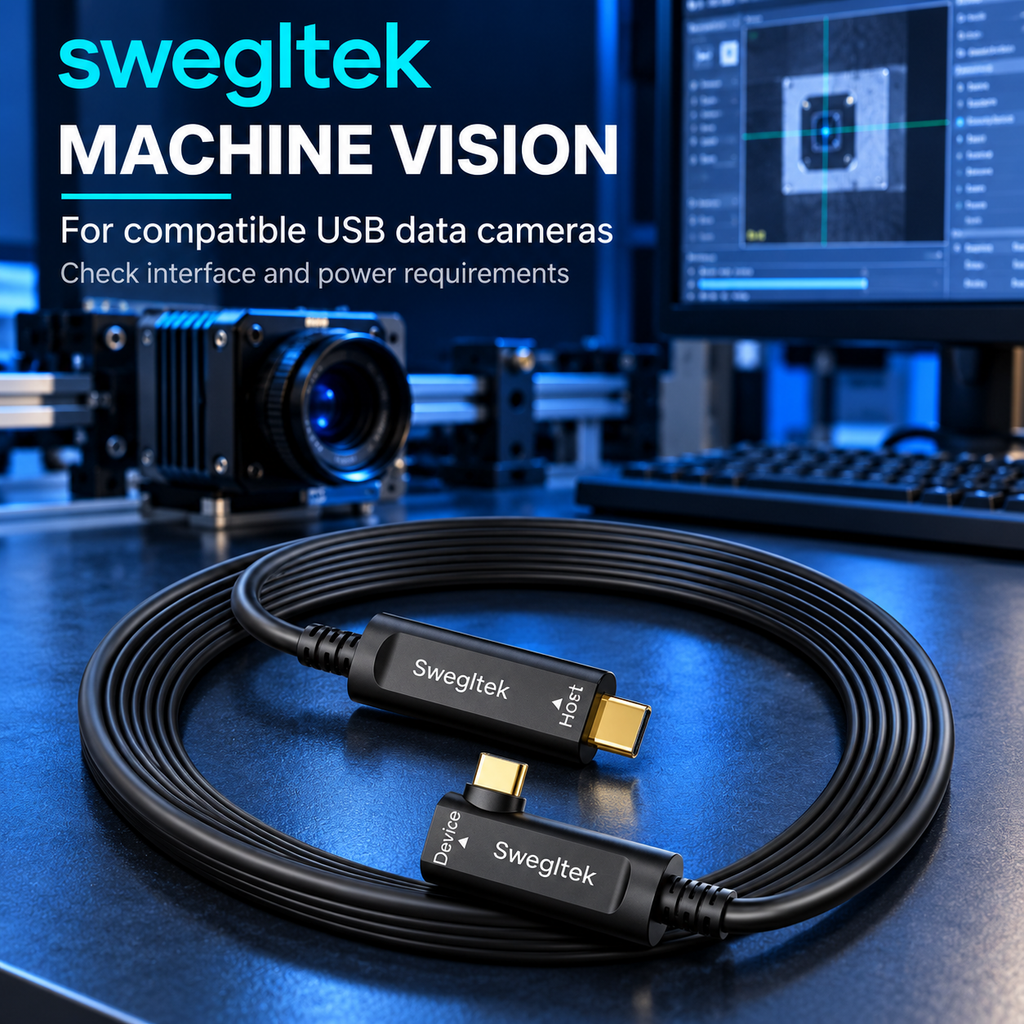

Suitable applications include compatible industrial USB cameras and supported USB-connected AR/VR equipment. A USB-C socket by itself does not establish compatibility. Verify the required data mode and power arrangement for the exact device model.

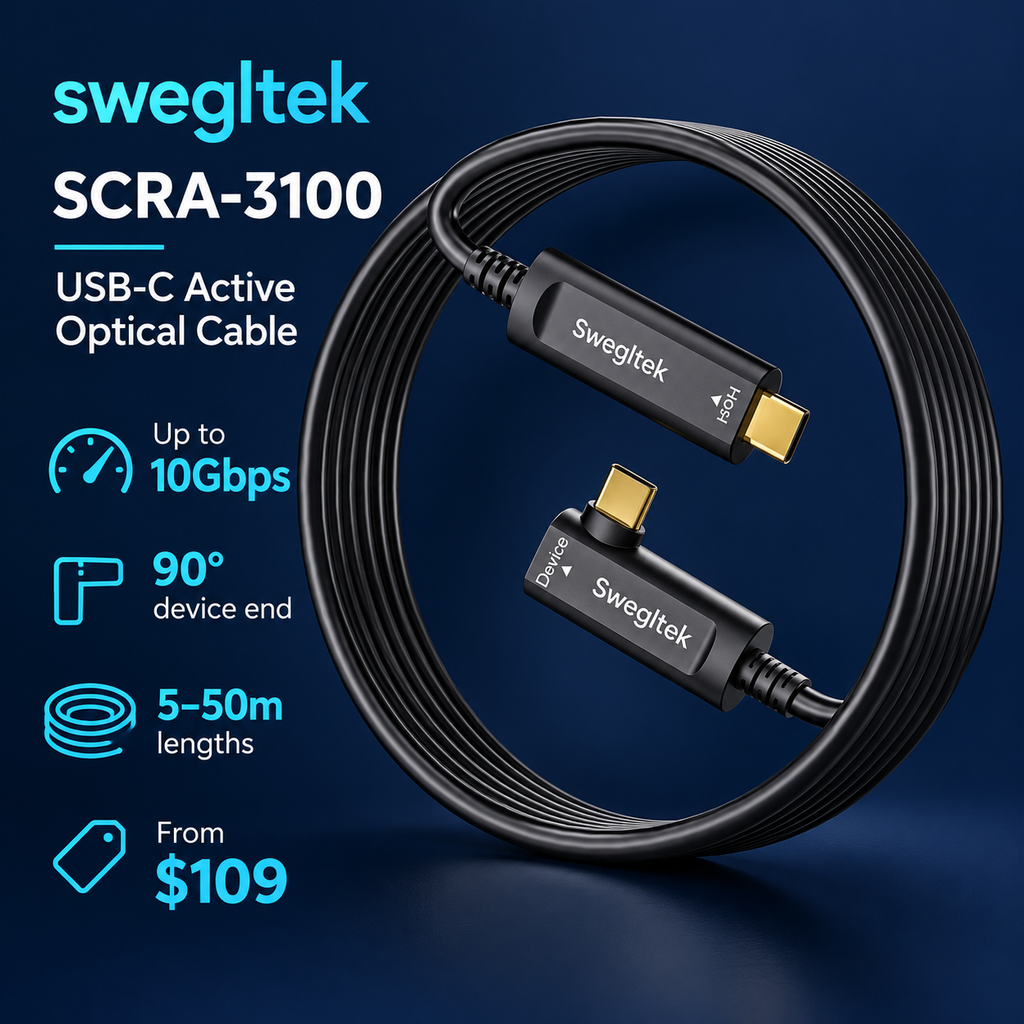

Product Specifications
Technical specifications and product details.
| Brand | swegltek |
|---|---|
| Model | SCRA-3100 |
| Product | USB-C active optical data cable |
| Maximum data signaling rate | Up to 10Gbps |
| Host end | Straight USB-C male |
| Device end | 90° USB-C male |
| Available lengths | 5m, 7.5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 45m, 50m |
| Nominal outside diameter | 4.5mm |
| Optical medium | OM3 multimode fiber |
| Supply voltage | 5V typical; 4.8-5.3V |
| Listed cable power consumption | 0.35W |
| Operating case temperature | -20-50°C |
| Storage temperature | -40-80°C |
| Cable external power supply | Not required according to the specification |
FAQS
Find answers to the most common questions about our products, shipping, returns and support.
No. The HOST end is straight; the DEVICE end has the 90° connector.
Follow the connector markings. The right-angle end belongs at the device.
Video output and USB Power Delivery fast charging are not specified features. This listing is for USB data connectivity.
No universal compatibility is claimed. Check the exact equipment's USB mode, connector clearance and power requirements.
Backward compatibility is not established by the model specification. Confirm the intended peripheral before ordering.
No. Cable operation and peripheral power requirements are separate. Verify the power arrangement for the connected device.
