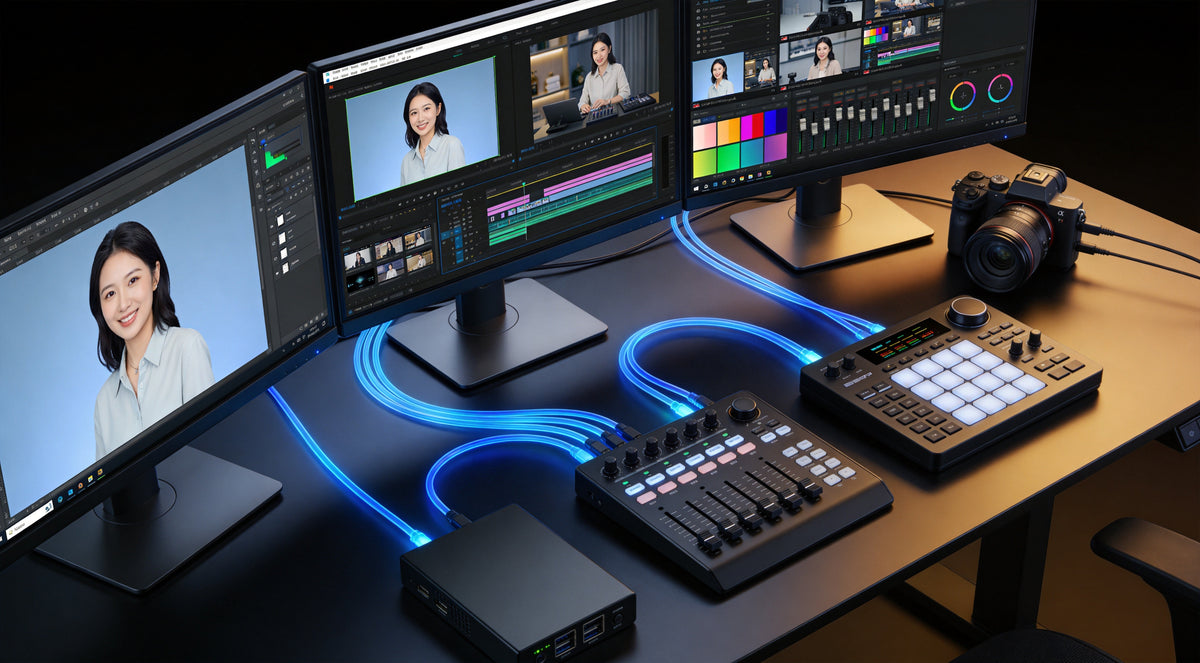

Creator Studio — High-Speed Connectivity for Content Creation Workflows

A professional content creation studio is only as reliable as the connections between its devices. Whether you're editing 8K footage, live-streaming to thousands, recording a podcast, or compositing motion graphics, every frame, every audio sample, and every data transfer depends on the cables carrying that signal.

SWEGLTEK high-performance Active Optical Cables and connectivity solutions are engineered to keep pace with the most demanding creator workflows — from camera to capture card, from editing workstation to reference monitor, and from studio to stream.

The Creator Studio Signal Chain

A modern creator studio is not a single application. It is a multi-device, multi-format ecosystem where video, audio, data, and control signals all flow simultaneously.

A typical signal chain may look like:

Camera / Capture Device → Cable → Capture Card → Workstation → Cable → Reference Monitor

Workstation → Cable → External SSD / NAS

Workstation → Cable → Streaming Encoder / Second Display

Audio Interface → Cable → Workstation

Each connection in this chain must carry the required bandwidth without degradation. If any single link in the chain falls short, the entire workflow suffers — dropped frames during editing, signal dropouts on the reference monitor, slow file transfers, or latency during live streams.

That is where the right cable becomes a critical part of the creative workflow.

01 — HDMI AOC for Reference Monitors and Client Displays

Video editors, colorists, and directors need a reference monitor that accurately reproduces the footage — without signal artifacts, flickering, or resolution limitations.

A typical connection:

Editing Workstation → HDMI Cable → Reference Monitor or Client Display

Modern HDMI configurations support 4K at 120Hz, 8K at 60Hz, HDR10+, and Dolby Vision — all of which demand substantial bandwidth. HDMI Ultra High Speed cables support up to 48 Gbps, which is sufficient for most uncompressed 4K120 and 8K60 workflows.

Why AOC matters in the studio

In many creator studios, the reference monitor or client display is mounted on a wall, positioned across the room, or located in a separate viewing area. Standard copper HDMI cables can suffer signal degradation beyond approximately 7.5 meters (25 feet).

An Active Optical Cable converts the HDMI signal to light for transmission through the fiber, then back to electrical at the display end. The result:

- Full-bandwidth signal over 50, 100, or even 164 feet (50 m) with no degradation

- Immunity to EMI from nearby power cables, audio equipment, and wireless devices

- Slim, flexible jacket that routes cleanly through cable management channels and wall mounts

- No external power required — the AOC draws power directly from the HDMI port

For color-critical work where signal integrity matters, a fiber optic HDMI AOC ensures the image reaching the reference monitor is exactly what the workstation is outputting.

02 — DisplayPort AOC for High-Resolution Editing Workstations

Video editors and motion graphics artists often work with DisplayPort-connected monitors — especially when using high-resolution displays, ultrawide panels, or multi-monitor setups.

Common configurations include:

- 4K editing monitors at high refresh rates

- Ultrawide curved displays for timeline work

- Dual or triple monitor setups for editing, previewing, and tool panels

- Color-accurate reference displays

DisplayPort technologies support extremely high-bandwidth configurations. DisplayPort 2.1 UHBR20 supports up to 80 Gbps of link bandwidth, enabling resolutions and refresh rates that push the limits of current creative software.

 When a DP AOC is the right choice

A DisplayPort AOC is particularly useful when:

- The workstation is located in a separate room or rack, and the monitor is in the editing suite

- The cable run exceeds what passive copper can reliably support at full bandwidth

- A clean, interference-free signal path is important for color-accurate work

- Multiple high-resolution displays are driven from a single workstation

SWEGLTEK DisplayPort AOC solutions maintain the full bandwidth required for demanding editing and compositing workflows, even across longer distances.

 03 — USB AOC for Capture Cards, External Storage, and Peripherals

Content creation is not just about video output. It is also about data input and transfer.

A creator studio typically relies on:

- Capture cards (Elgato, Blackmagic, AVerMedia) for recording and streaming

- External SSDs and RAID arrays for footage storage and playback

- NAS systems for collaborative editing and backup

- Audio interfaces for podcast recording and music production

- Cameras and webcams for live streaming and video calls

- Control surfaces for editing and color grading

All of these devices connect via USB — and they all require reliable, high-bandwidth data transfer.

The advantage of USB AOC

Standard USB cables are limited in length. USB 3.2 Gen 2 (10 Gbps) connections over passive copper cables are generally reliable only up to about 3 meters. Beyond that, signal integrity becomes a concern.

A USB Active Optical Cable extends high-speed USB connectivity over much longer distances — 10 meters, 20 meters, or more — while maintaining the full bandwidth of the connection.

This is particularly useful when:

- A capture card is positioned near the camera, but the workstation is in an editing room

- External storage arrays are located in a server closet for noise reduction

- A camera or webcam needs to be positioned far from the computer

- Audio interfaces are in a recording booth while the DAW runs in the control room

SWEGLTEK USB AOC solutions support high-speed USB data transfer over extended distances, helping creators position their equipment where it works best — not where the cable length allows.

 04 — Multi-Monitor Workflows Without Compromise

Professional content creators rarely work on a single screen.

A typical multi-monitor setup might include:

- Primary display: Editing timeline (NLE software)

- Secondary display: Program preview / reference output

- Tertiary display: Asset browser, audio mixer, or chat window for streamers

- Dedicated display: Graphics tablet screen or motion graphics preview

Each of these displays requires its own high-bandwidth video connection. When the workstation is positioned at a distance from the monitor array — for example, in a ventilated rack or separate equipment room — every connection becomes a long cable run.

This is where AOC technology provides a practical advantage. Instead of being forced to place the workstation within 2–3 meters of every display, creators can use fiber optic AOC cables to maintain full-bandwidth connections over 15, 30, or even 50 meters.

The result: a cleaner studio layout, better noise and thermal management, and no compromise on display resolution or refresh rate.

 05 — Live Streaming and Real-Time Production

Live streaming adds a unique set of demands to a creator studio.

A typical streaming signal chain:

Camera → HDMI/SDI → Capture Card → USB → Streaming PC → Network

Simultaneously, the streamer may need:

- A preview monitor for the live output

- A second display for chat, alerts, and scene management

- External storage for recording a local backup of the stream

- An audio interface for microphone input

Every one of these connections must be stable. A dropped frame, a signal dropout, or a USB disconnect during a live stream is immediately visible to the audience.

SWEGLTEK AOC cables are designed for stable, continuous signal transmission. The optical fiber connection is immune to electromagnetic interference — which is especially important in a studio environment filled with cameras, lighting controllers, wireless microphones, and networking equipment.

06 — Podcast and Audio Production

Podcast studios and audio production rooms have their own connectivity requirements.

A typical audio studio setup:

Microphones → Audio Interface → USB → DAW Workstation

DAW Workstation → USB → External Storage / NAS

DAW Workstation → HDMI / USB → Control Surface

While audio data rates are lower than video, the reliability of the connection is equally important. A USB disconnect or dropout during a recording session means lost takes and wasted time.

USB AOC cables can be used to connect audio interfaces and control surfaces that are positioned at a distance from the main workstation — for example, when the DAW computer is in a ventilated rack or separate room to eliminate fan noise from the recording environment.

07 — Cable Management and Studio Design

A well-designed creator studio is not just about performance — it is about the working environment.

Long cable runs across a studio floor create visual clutter, tripping hazards, and maintenance challenges. AOC cables from SWEGLTEK address these issues through:

- Slim, lightweight jacket design — fiber optic AOC cables are significantly thinner than equivalent copper cables, making them easier to route through cable trays, conduits, and desk grommets

- Reduced weight — less strain on connectors and ports, which is important when connecting to capture cards, cameras, and portable monitors

- Clean routing — the flexibility of fiber AOC allows it to follow tight-radius paths along walls, under desks, and through ceiling mounts

For permanent installations — such as a ceiling-mounted reference monitor, a wall-mounted client display, or a camera positioned across the studio — AOC cables can be routed through walls and conduit for a clean, professional studio environment.

08 — CMP / Plenum-Rated Cables for Permanent Studio Installation

Studios that are built into commercial spaces often need to route cables through plenum spaces, drop ceilings, or raised floors. Building codes in many regions require cables installed in these spaces to meet specific fire-safety ratings.

SWEGLTEK offers CMP-rated cable solutions that meet these requirements, allowing professional studio installations to comply with local fire and building codes while maintaining the performance benefits of fiber optic connectivity.

Creator Studio Connectivity Guide

| Studio Application | Recommended SWEGLTEK Solution | Practical Purpose |

| Workstation → Reference Monitor | HDMI 2.1 AOC | Full-bandwidth video for color-critical monitoring |

| Workstation → Editing Display | DisplayPort AOC | High-resolution, high-refresh editing monitor |

| Camera → Capture Card | HDMI Cable / AOC | Video signal from camera to recording device |

| Capture Card → Workstation | USB AOC / USB Cable | High-speed data from capture device to editing software |

| Workstation → External Storage | USB AOC / USB Cable | Fast footage transfer and backup |

| Workstation → Streaming Display | HDMI AOC | Preview monitor for live output |

| Audio Interface → Workstation | USB AOC | Remote microphone/recording setup |

| Long-run studio installation | AOC (HDMI / DP / USB) | Extended high-speed signal transmission |

| In-wall / plenum runs | CMP-rated fiber AOC | Code-compliant permanent installation |

| Client viewing area | HDMI AOC | Clean, long-distance display connection |

The Practical Benefit

The value of a studio cable is measured by whether it reliably carries the signal your workflow demands — frame after frame, hour after hour, stream after stream.

For content creators, the practical benefits of appropriately specified SWEGLTEK cables include:

High Bandwidth — Support demanding 4K, 8K, HDR, and high-refresh-rate configurations when matched with compatible hardware.

Stable Transmission — Maintain a reliable signal path for editing, streaming, recording, and live production — no dropouts, no flickering, no handshake errors.

Longer Reach — Active optical designs extend high-speed connections across the studio, between rooms, or through walls — without signal degradation.

Clean Installation — Slim, lightweight cables route easily through cable management systems, conduits, and wall mounts for a professional studio environment.

Better Equipment Utilization — A properly specified cable ensures your capture cards, monitors, storage, and workstations operate at the full capability they were designed for.

Choose the Cable for the Workflow

There is no single cable that is ideal for every creator studio. The correct choice depends on:

Interface → Bandwidth → Resolution → Data Rate → Cable Length → Device Compatibility

Before selecting a cable, check the specifications of the source device, display, capture card, or peripheral — and verify the cable supports the required transmission standard.

With solutions spanning HDMI AOC, DisplayPort AOC, USB AOC, high-speed copper connectivity, and CMP-rated installations, SWEGLTEK provides the connectivity options that modern content creation workflows demand.

SWEGLTEK — Connecting Creators to Their Craft

Professional creative tools deserve a connection designed for professional-grade data transmission.

From the camera to the capture card. From the workstation to the reference monitor. From the studio to the stream.

SWEGLTEK helps keep the creative signal flowing.

High Bandwidth. Reliable Transmission. Uninterrupted Creation.
