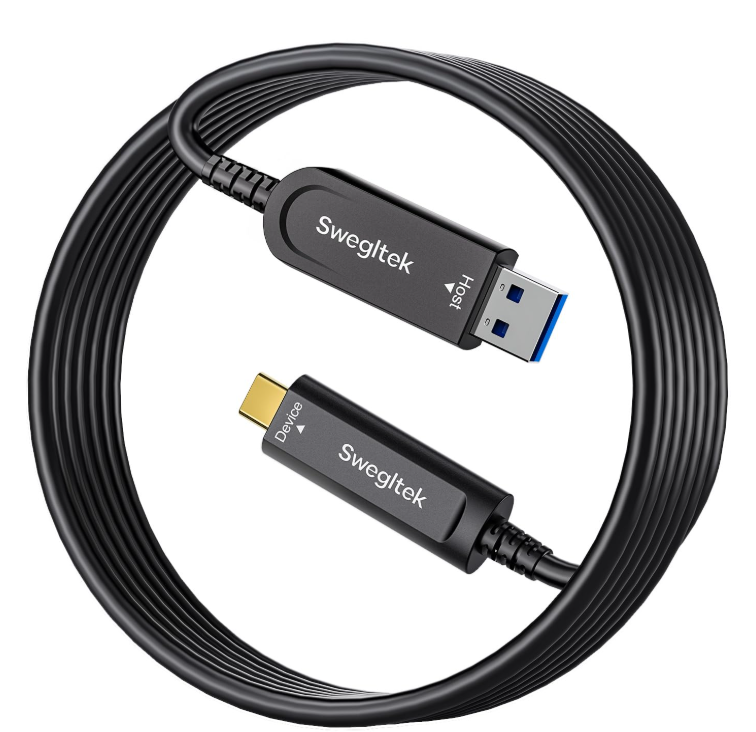

USB A TO C 3.2 super speed data transmission cable
USB A TO C 3.2 super speed data transmission cable
Description
Swegltek USB 3.2 A-C AOC is the first Gen2 active optical cable which can support downward compatible with USB 2.0 in the market . Super speed data transmission depending on optical fiber , not only its support length become much longer up to 50m max, but also signal quality is much more stable , no EMI completely, especially can support 10Gbps super speed , meets USB3.2 gen2 standard . Its suitable for applications that do not have on-site power supply .This optical fiber cable can be applicated to machine vision, Remote monitoring, etc.

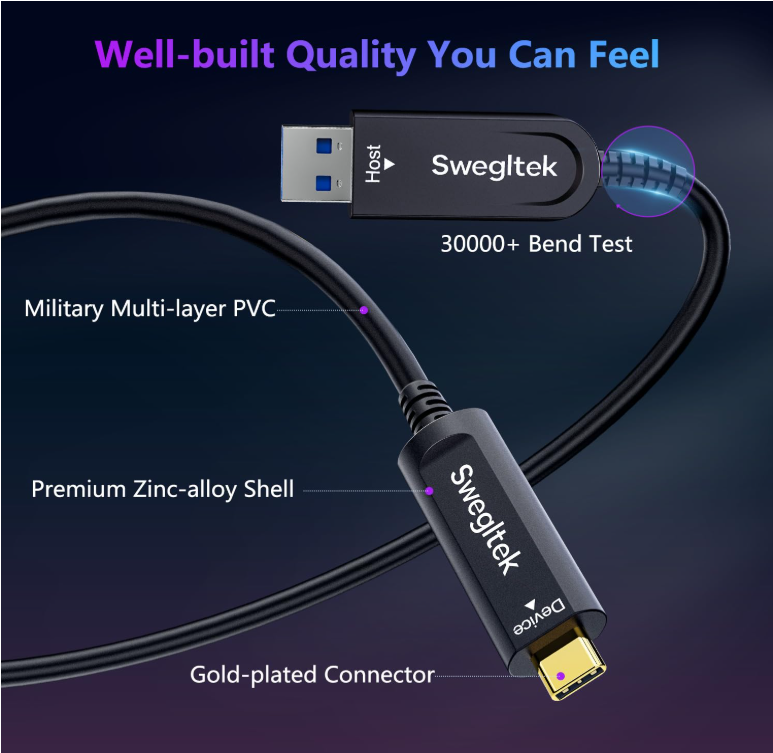

Key Features
1. Meet USB 3.2 Gen2 Standard , bandwidth can reach to 10Gbps super speed ;
2. Support length up to 50m .(Custom length is available) ;
3. Support 5V 900mA max ;
4. Support two sides plug and play on type C connector ;
5. Do support downward compatible with USB2.0/1.1 ;
6. No RF interference , working stable in complex environments .

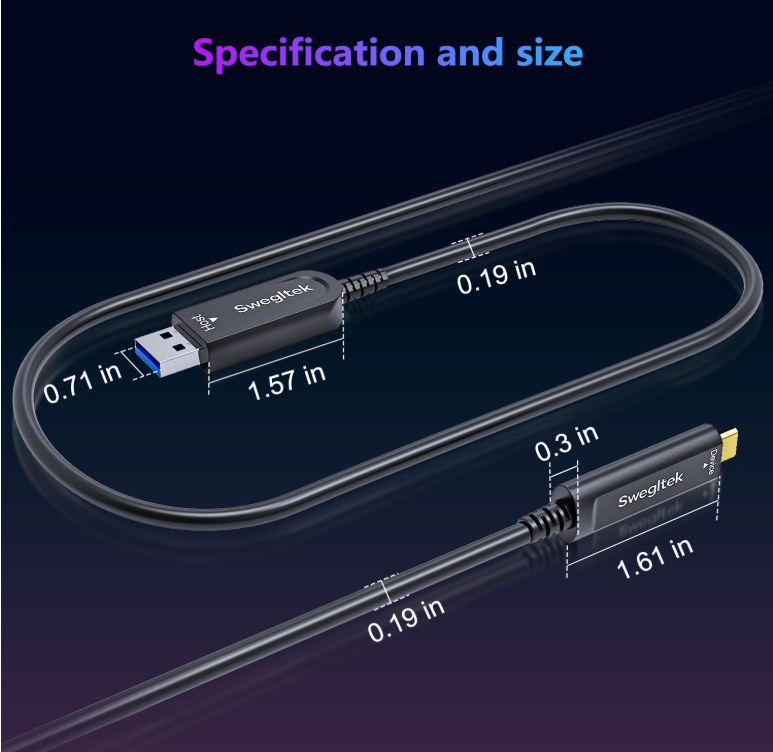

Specifications
Specification of USB 3.2 Type A- C AOC is as follows :
|
Item |
Description |
|
Connector Type |
USB A Male ; USB Type C |
|
Bandwidth |
USB 3.2 Gen2 , 10Gbps |
|
Power Consumption |
≤0.5W |
|
Supported Distance |
50m |
|
Operating Temperature |
-20℃～+50 ℃ |
|
Environment Protection |
ROHS |
Absolute Maximum Ratings
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Supply Voltage |
VCC |
-0.5 |
5.5 |
V |
|
Operating Temperature |
Top |
0 |
70 |
°C |
|
Storage Temperature |
Ts |
-40 |
85 |
°C |
|
Storage Relative Humidity |
Hs |
10 |
85 |
%RH |
Recommended Operating Conditions
|
Parameter |
Symbol |
Minimum |
Typical |
Maximum |
Units |
|
Supply Voltage |
VCC |
4.75 |
5 |
5.25 |
V |
|
Operating Temperature |
Top |
0 |
|
50 |
°C |
Characteristics
|
Parameter |
Description |
Minimum |
Typical |
Maximum |
Units |
|
VCC |
Supply Voltage |
4.75 |
5 |
5.25 |
V |
|
IBUS |
Current at USB Bus Power |
49.5 |
55 |
60.5 |
mA |
|
RDIFF |
Differential impedance |
|
90 |
|
Ω |
|
USB3.0 AOC TX Characteristic |
|||||
|
PTX |
Optical TX output power |
0 |
|
|
dBm |
|
Rj |
Random jitter |
|
|
3 |
ps |
|
Dj |
Deterministic jitter |
|
|
60 |
ps |
|
Tj |
Total jitter at a 10-12 BER |
|
|
100 |
ps |
|
USB3.0 AOC RX Characteristic |
|||||
|
SRX |
RX sensitivity |
-7.5 |
|
|
dBm |
|
CAC-COUPLING |
AC coupling capacitor on RXOUT |
75 |
100 |
200 |
nF |
Application
• Cameras • Computers • Monitors • Smartphones • Hard drives
