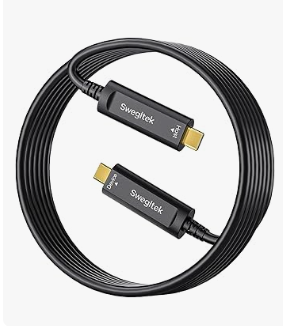

USB 3.2 C to C AOC Data Transmission Only

Description

Swegltek USB 3.2 Type C AOC is the first Gen2 active optical cable in the market . Super speed data transmission depending on optical fiber , not only its support length become much longer up to 15m max, but also signal quality is much more stable , no EMI completely, can support 10Gbps super speed , meets USB3.1 standard, especially can downward compatible with USB 2.0/1.1 .It is a mature & competitive solution in the high speed date transmission market .

KEY FEATURES

•  Meet USB 3.2 Gen2 Standard , bandwidth can reach to 10Gbps super speed
•  Uncompressed signal and the image quality is not distorted.
• Hybrid copper and fiber cable, anti-interference, no radiation, strong resistance to EMI
• Standard USB Type C interface
• 850nm VCSEL and PIN photodetector
• Plug and play, support hot plug
• Cable OD less than Φ4.5 mm, lighter application
• No external power supply required
• Support 5V 1.5A power maximum to the remote device
• Applicable length: 0.2-15 meters, support other distance customization.

Applications

USB Type C AOC is used for VR, Mobile terminal , for example , Mobile Phone 、PC、Cameras 、Wearable devices , also can be applicated to Home Theatre 、Medical Imaging Equipment 、LED signboards in strets and in stadiums、TV broadcast Station、Airplane On-board Video System 、Conference Room、Digital Signage...etc.

Function & Parameter
