Description

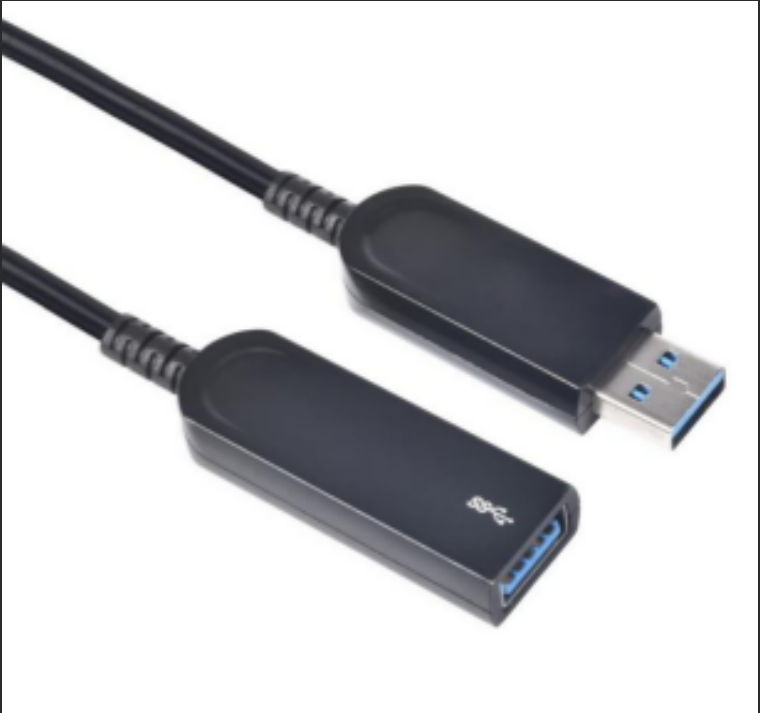

The USB 3.2 Active Optical Cable is a USB 3.2 electrical to optical conversion module. This product can translate signals between USB 3.2 electrical and optical signals. AOC is a cabling technology that accepts the same electrical inputs as a traditional copper cable, but using optical fiber“between the connectors”. The USB fiber cable can be up to 50 m with USB 3.2 version and also downward compatible with USB 2.0 and USB 1.1 at USB Female Side.
KEY FEATURES
◆ Extends USB 3.0 & USB 2.0 super speed devices up to 15 m
◆ Supports all USB 3.2 device types at Host: control, interrupt, bulk and isochronous at up to 10 Gbps
◆ Operates with USB 3.2 super speed host controllers
◆ Supports Windows & Mac operating systems
◆ Number of devices can be increased using additional hubs
◆ A substantial increase in USB 2.0 device bandwidth with special technology
◆ Ideal for a wire variety of USB devices, from printer, scanners, hard drives,and audio devices,to touch screens, web cams, and game controllers
Applications
◆ Industrial Control ◆ Digital Signage ◆ KVM Extension
◆ Home Network Integration ◆ Medical Device Connectivity
◆ Remote Desktop USB 3.0 and USB 2.0 Connections
◆ Security: web camera, access control
◆ USB 3.0 & USB 2.0 Device Sharing: print, scan, storage
Absolute Maximum Ratings
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Supply Voltage |
VCC |
-0.5 |
5.5 |
V |
|
Top |
0 |
50 |
°C |
|
|
Storage Temperature |
Ts |
-20 |
70 |
°C |
|
Storage Relative Humidity |
Hs |
10 |
85 |
%RH |
Recommended Operating Conditions
|
Parameter |
Symbol |
Minimum |
Typical |
Maximum |
Units |
|
Supply Voltage |
VCC |
4.75 |
5 |
5.25 |
V |
|
Operating Temperature |
Top |
0 |
|
50 |
°C |
Characteristics
|
Parameter |
Description |
Minimum |
Typical |
Maximum |
Units |
|
VCC |
Supply Voltage |
4.75 |
5 |
5.25 |
V |
|
IBUS |
Current at USB Bus Power |
49.5 |
55 |
60.5 |
mA |
|
RDIFF |
Differential impedance |
|
90 |
|
Ω |
|
USB 3.2 AOC TX Characteristic |
|||||
|
PTX |
Optical TX output power |
0 |
|
|
dBm |
|
Rj |
Random jitter |
|
|
3 |
ps |
|
Dj |
Deterministic jitter |
|
|
60 |
ps |
|
Tj |
Total jitter at a 10-12 BER |
|
|
100 |
ps |
|
USB 3.2 AOC RX Characteristic |
|||||
|
SRX |
RX sensitivity |
-7.5 |
|
|
dBm |
|
CAC-COUPLING |
AC coupling capacitor on RXOUT |
75 |
100 |
200 |
nF |
