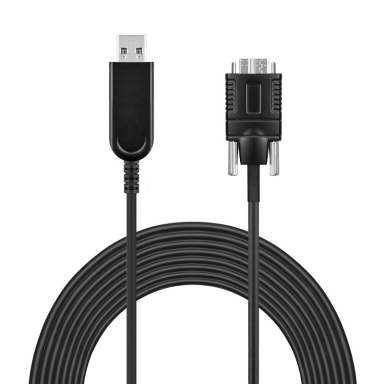

USB 3.2 A to Micro-B cable
USB 3.2 A to Micro-B cable
Description
In order to compensate for ordinary USB 3.2 active fiber cable 's defect that can't supply power to device, Swegltek introduced new USB 3.2 hybrid cable .On the basis of the use of optical fiber as the transmission medium , it integrate cooper to achieve the purpose of supplying power to device. The length of USB 3.2 hybrid cable can be extended up to 30m and this features offers flexibility in extending USB 3.2 devices in commercial and industrial locations such as machine vision cameras ,security cameras,and storage drives
KEY FEATURES
◆ Extends USB 3.2 super speed devices up to 30 m
◆ Supports all USB 3.2 device types: control, interrupt, bulk and isochronous at up to 10 Gbps
◆ Operates with USB 3.2 super speed host controllers
◆ Supports all major operating systems including Windows, Mac OS, and Linux
◆ Number of devices can be increased using additional hubs
◆ Host and Remote devices need to be self-powered
Applications
◆ Industrial Control ◆ Digital Signage ◆ KVM Extension
◆ Home Network Integration ◆ Medical Device Connectivity
◆ Remote Desktop USB 3.2 Connections ◆ Security: web camera, access control
◆ USB 3.2 Device Sharing: print, scan, storage
Applications Reference
！Requires a separate power supply for the HUB if the cable's downstream port connect to HUB
！Attention , don't be scalded by the interface shell because the temperature may be high if long time use the product.
SPECIFICATIONS
|
Product Name |
USB 3.2 A to Micro-B cable |
|
Description |
|
|
Connector |
Host side: USB 3.2 standard-A plug |
|
Device side: USB 3.2 Micro-B Plug (with locking screws) |
|
|
Max. data rate |
10Gbps |
|
Power |
Host side:USB Bus power supply |
|
Device side supply current: Maximum5V {800mA 10m/20m/30m)} , need to connect Auxiliary power supply to host side |
|
|
Wire Jacket |
Drag Chain Wire(Max to 20 million cycles) |
|
Cable diameter |
5.5 mm |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
Storage Temperature |
-20°C to 70°C (-4°F to 158°F). |
|
Humidity |
10% to 85% (non-condensing) |
Absolute Maximum Ratings
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Supply Voltage |
VCC |
-0.5 |
5.5 |
V |
|
Top |
0 |
50 |
°C |
|
|
Storage Temperature |
Ts |
-20 |
70 |
°C |
|
Storage Relative Humidity |
Hs |
10 |
85 |
%RH |
Recommended Operating Conditions
|
Parameter |
Symbol |
Minimum |
Typical |
Maximum |
Units |
|
Supply Voltage |
VCC |
4.75 |
5 |
5.25 |
V |
|
Operating Temperature |
Top |
0 |
|
50 |
°C |
Characteristics
|
Parameter |
Description |
Minimum |
Typical |
Maximum |
Units |
|
VCC |
Supply Voltage |
4.75 |
5 |
5.25 |
V |
|
IBUS |
Current at USB Bus Power |
750 |
800 |
850 |
mA |
|
RDIFF |
Differential impedance |
|
90 |
|
Ω |
|
USB 3.2 AOC TX Characteristic |
|||||
|
PTX |
Optical TX output power |
0 |
|
|
dBm |
|
Rj |
Random jitter |
|
|
3 |
ps |
|
Dj |
Deterministic jitter |
|
|
60 |
ps |
|
Tj |
Total jitter at a 10-12 BER |
|
|
100 |
ps |
|
USB 3.2 AOC RX Characteristic |
|||||
|
SRX |
RX sensitivity |
-7.5 |
|
|
dBm |
|
CAC-COUPLING |
AC coupling capacitor on RXOUT |
75 |
100 |
200 |
nF |
