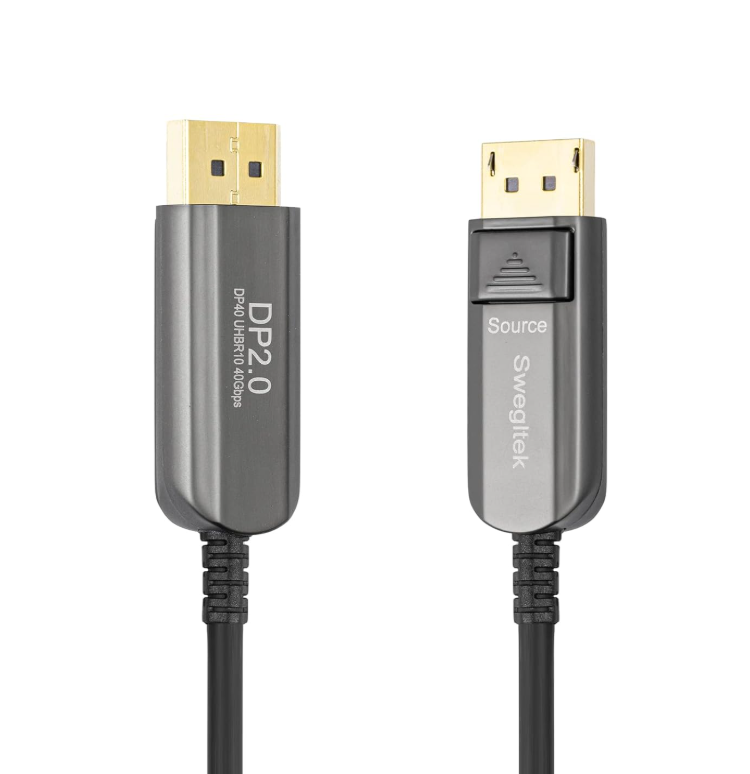

Swegltek DP 2.1 AOC is new Audio/Video cable , UHD signal transmission depending on optical fiber，support length become much longer (above 100m) ,but also signal quality is much more stable , lower EMI/EMC, especially can support 10Gbps bandwidth per channel，40Gbps total . Support 8K@60Hz and 4K@144Hz, meets DP2.1 UHBR 10 DP 40Gbps Standard，It is a mature & competitive solution in the high speed signal transmission application . This optical fiber cable can be applied to computer with DP interface , Displays outdoor , LED signboards in streets / stadiums and Security System , that transfer audio video signal .
Key Feature
1. Support 8K@60Hz , Supports HBR10, HDCP 1.4 / 2.2; very good compatibility;
2. Support DP2.0 UHBR10 standard, bandwidth can reach 10 Gbps per channel, 40Gbps total；
3. Support length up to 100m max, custom length is optional;
4. Hybrid fiber and copper，OD 4.8 mm only, high flexible, slim and light ;
5. Plug & Play, no firmware, no need external power supply；
6. Lower EMI / EMC for strict applications.\
Specifications
1.Performance
|
Standards Compliance |
Display Port 2.1/HBR10, HDCP 1.4/2.2 |
|
Maximum Pixel Clock Frequency |
810 MHZ |
|
Maximum Video Bit Rate |
Supports up to 10 Gbps per lane, 40Gbps Total |
|
Maximum Color Depth |
48bits |
|
Maximum Supported Resolutions |
8K@ 60Hz |
2.Connections
|
Display Port Input / Output |
20-pin Display Port |
|
Power |
No external power supply is required |
3.AUX Channel Support
|
AUX Channel Communications |
Supports bidirectional communications for EDID,HDCP, Link Training,etc. |
|
HDCP Support |
HDCP 1.4 and HDCP 2.2 |
4.Optical
|
Optical Technology |
4x Discrete Optical Channels, 10GHz, 850nm |
|
Optical Transmitter |
Tx Module:4x 850 nm Multi-mode VCSELs |
|
Optical Receiver |
Rx Module:4x GaAs PIN Photo Diodes |
5.Cable
|
Fiber Cable Type |
Hybrid cable 4x fiber and 8x copper wire |
|
Cable Jacket |
PVC, Black |
|
Maximum Color Length |
100 meters |
6.Mechanical-Cable
|
Product Weight |
Varies with length |
|
Maximum Tensile Load |
300N |
|
Minimum Bend Radius |
48mm |
|
Cable Outside Diameter(W+H) |
4.8mm |
7.Environmental
|
Operating Temperature |
0℃ to +50℃ |
|
Storage Temperature |
-20℃ to +85℃ |
|
Operating / Storage Humidity |
5% to 85% (non-condensing) |
8.Power Requirements
|
Power Source |
Powered from Display Port source device |
|
Power Consumption |
<0.5 watt each end |
Applications
1. Digital Signage , Security systems ,Home Theater ;
2. Conference Room Video Equipment;
3. LED signboards in streets and in stadiums ; TV Broadcast Station;
4. Medical Imaging Equipment ,Airplane On-board Video System;
5. Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer .
